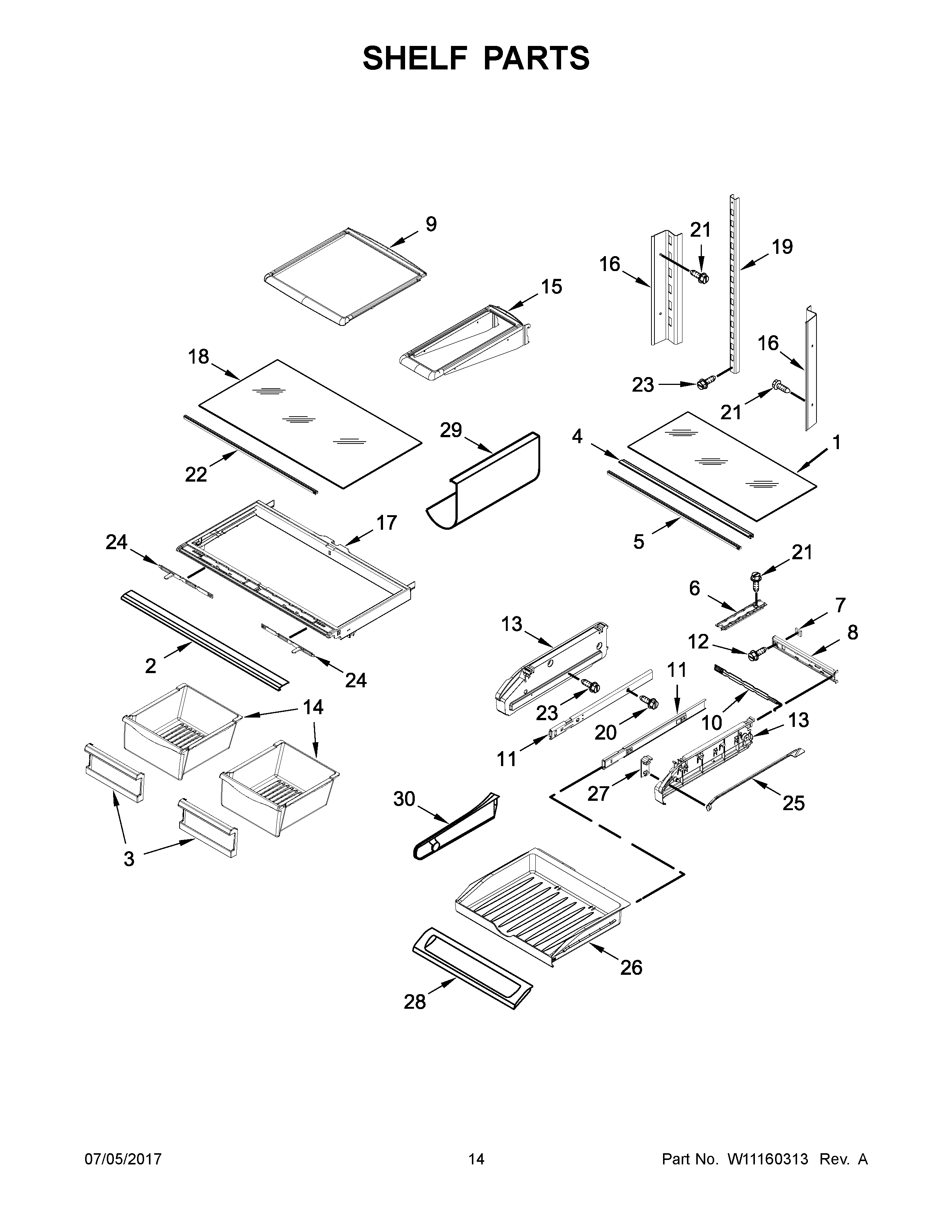

JFI2089WES10 08 – SHELF PARTS

JFI2089WES10 08 – SHELF PARTS

Written by

in

JFI2089WES10 08 – SHELF PARTS

Products

Position	Product
1	MAY W10893771
2	MAY W10231478
3	HANDLE, CRISPER PAN
4	SUPPORT, GLASS
5	MAY 12227305WH
6	TRACK, PANTRY
7	MAY 12656901
8	MAY 12656202
9	MAY 12463912
10	SLIDE, TEMPERATURE
11	MAY W10235370
13	Endcap, Pantry (Left)
13A	ENDCAP, PANTRY (RIGHT)
14	Pan, Crisper (2)
15	SHELF, MINI
16A	MAY W10251967
16	LADDER, SIDE LH
17	MAY 12531202SP
18	Glass, Crisper Cover
19	MAY W10273464
20	MAY 12990504
21	MAY 12990513
22	BRACE, CRISPER COVER
23	SCREW (2)
24	MAY 12530805SP
25	ROD, TEMPERATURE CONTROL
26	MAY 12655702
27	KNOB, TEMP CONTROL
28	DOOR, PANTRY DRAWER
29	RACK, BOTTLE
30	DIVIDER, PANTRY DRAWER
