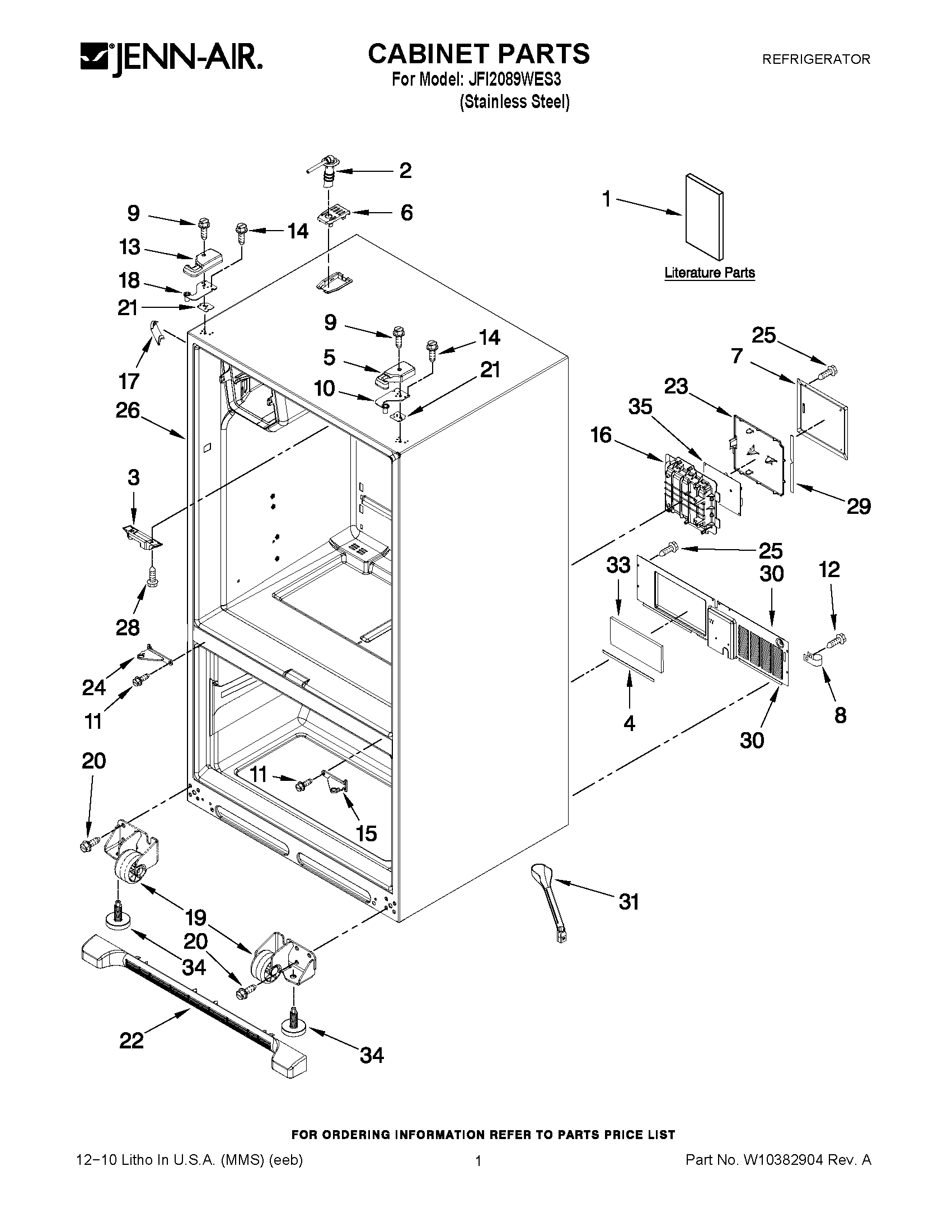

JFI2089WES3 01 – CABINET PARTS

JFI2089WES3 01 – CABINET PARTS

Written by

in

JFI2089WES3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10341190
1MAY W10275994
1MAY W10275861
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5MAY 12962302B
6MAY 12981401B
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963205ED
11SCREW (6)
12SCREW (10)
13COVER, TOP HINGE (LEFT) (BLACK)
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
16MAY 12957601
17COVER, CORNER (BLACK)
18MAY 12963204ED
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY 12999502
21MAY 12999501
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23MAY 12957701
24HINGE, CENTER (BLACK, LEFT)
25SCREW
26LINER (NOT A SERVICEABLE PART)
28Screw (4)
29GASKET-HV BOX
30MAY W10270394
31MAY W10210988
33Insulation, Sound
34Brake, Foot
35MAY W10312695
