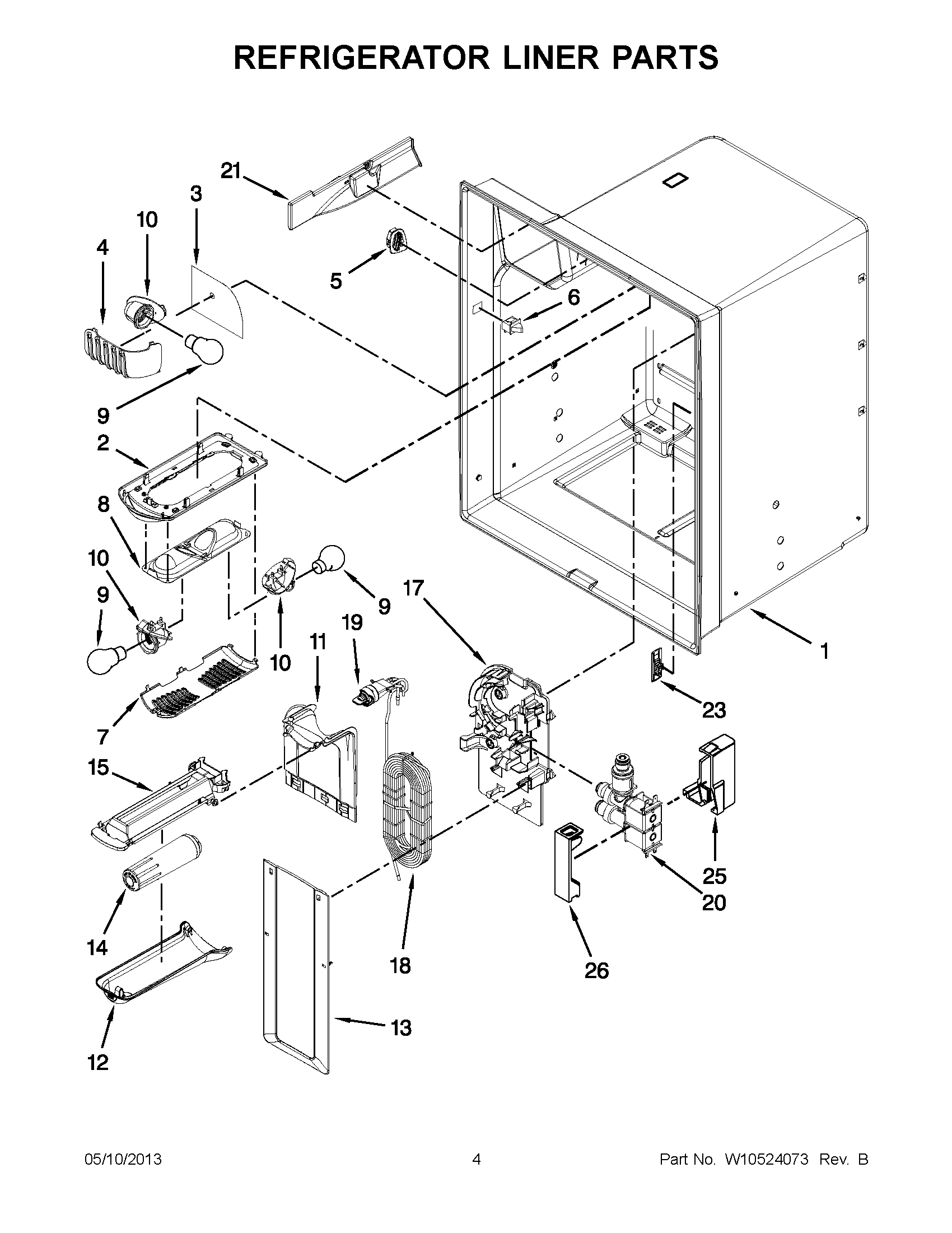

JFI2089WES8 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	MAY 12691605
4	MAY 12921801
5	ASSEMBLY, AIR GRILLE
6	SWITCH, LIGHT
7	MAY 12905902
8	MAY W10443023
9	BULB, LIGHT
10	W11447232 Whirlpool Refrigerator Socket
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY W10336197
15	MAY 12955901
17	BRACKET, WATER TANK AND VALVE
18	MAY W10463663
19	MAY 12664501SP
20	MAY W10312696
21	MAY 13033601
23	MAY 12987301
25	MAY W10118193
26	MAY W10118194
