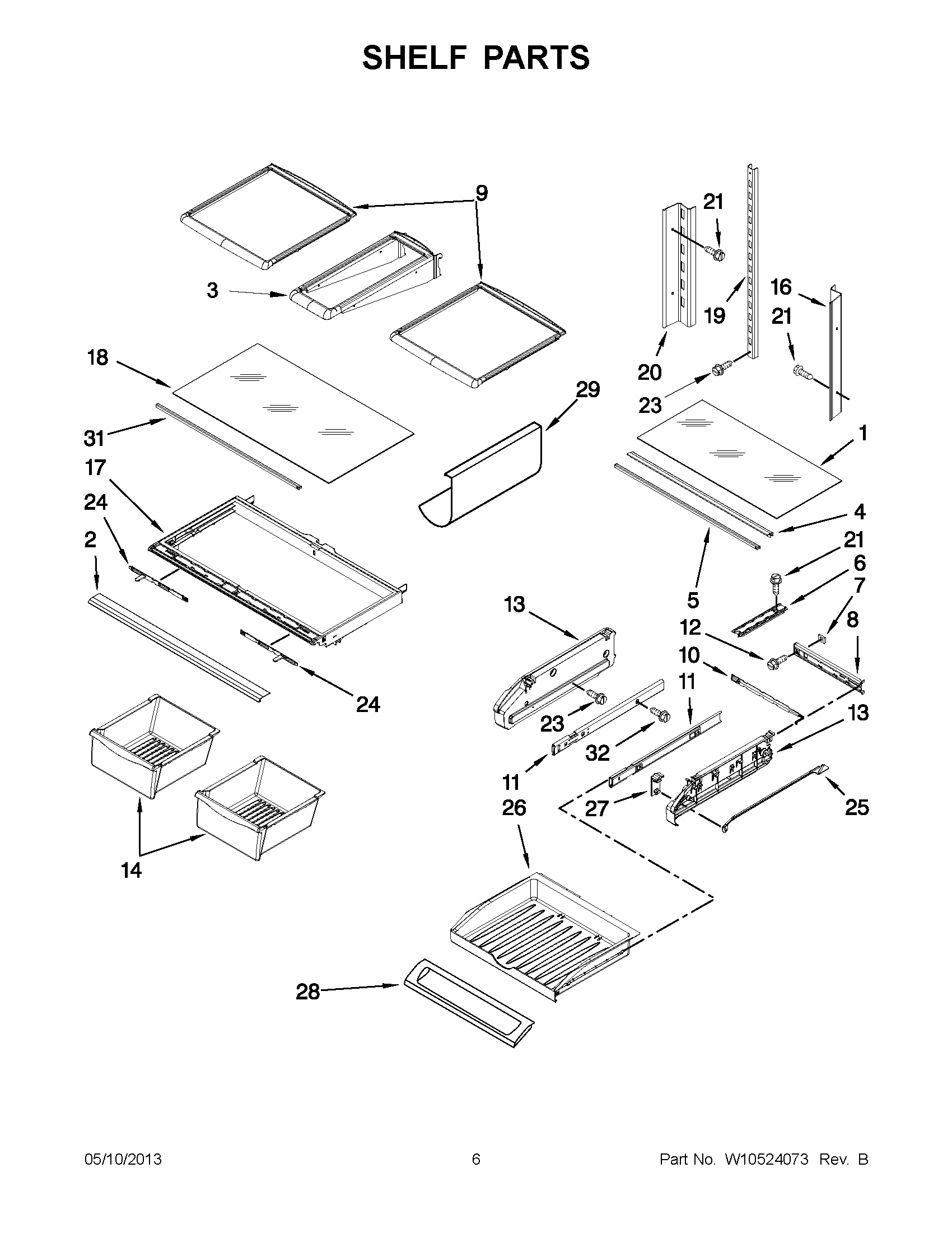

JFI2089WES8 03 – SHELF PARTS

JFI2089WES8 03 – SHELF PARTS

Written by

in

JFI2089WES8 03 – SHELF PARTS

Products

PositionProduct
1MAY 12204829
2MAY W10231478
3SHELF, MINI
4SUPPORT, GLASS
5MAY 12227305WH
6TRACK, PANTRY
7MAY 12656901
8MAY 12656202
9MAY 12463912
10SLIDE, TEMPERATURE
11MAY W10235370
13ENDCAP, PANTRY (RIGHT)
13Endcap, Pantry (Left)
14Pan, Crisper (2)
16MAY W10251967
17MAY 12531202SP
18Glass, Crisper Cover
19MAY W10273464
20LADDER, SIDE LH
21MAY 12990513
22MAY 12990515
24MAY 12530805SP
25ROD, TEMPERATURE CONTROL
26MAY 12655702
27KNOB, TEMP CONTROL
28DOOR, PANTRY DRAWER
29RACK, BOTTLE
31Brace, Crisper
32MAY 12990504
