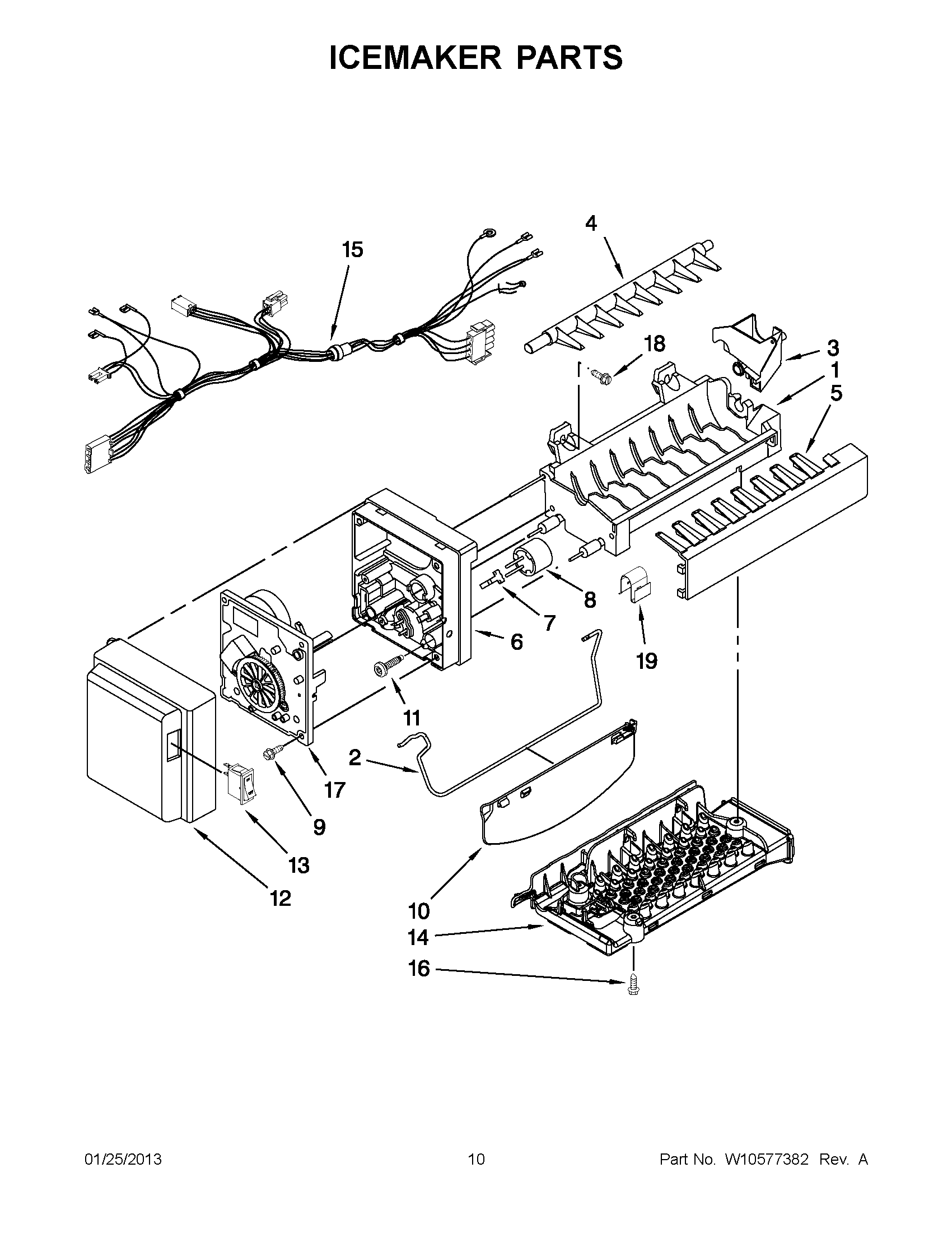

JFI2089WES9 05 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 12957501
NI	LINER (NOT A SERVICEABLE PART)
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10175514
3	MAY W10327050
4	MAY W10318914
5	ICE STRIPPER
6	MAY 2194712
7	MAY 2315522
8	MAY W10290336
10	MAY W10351019
11	Screw (2)
12	MAY W10121444
13	MAY 2313326
14	IMPINGER ASSY.
15	MAY W10312698
16	SCREW (10)
17	Module Assembly (Includes Items 23 and 24)
18	Screw (3)
19	Clip
100	MAY W10300024
