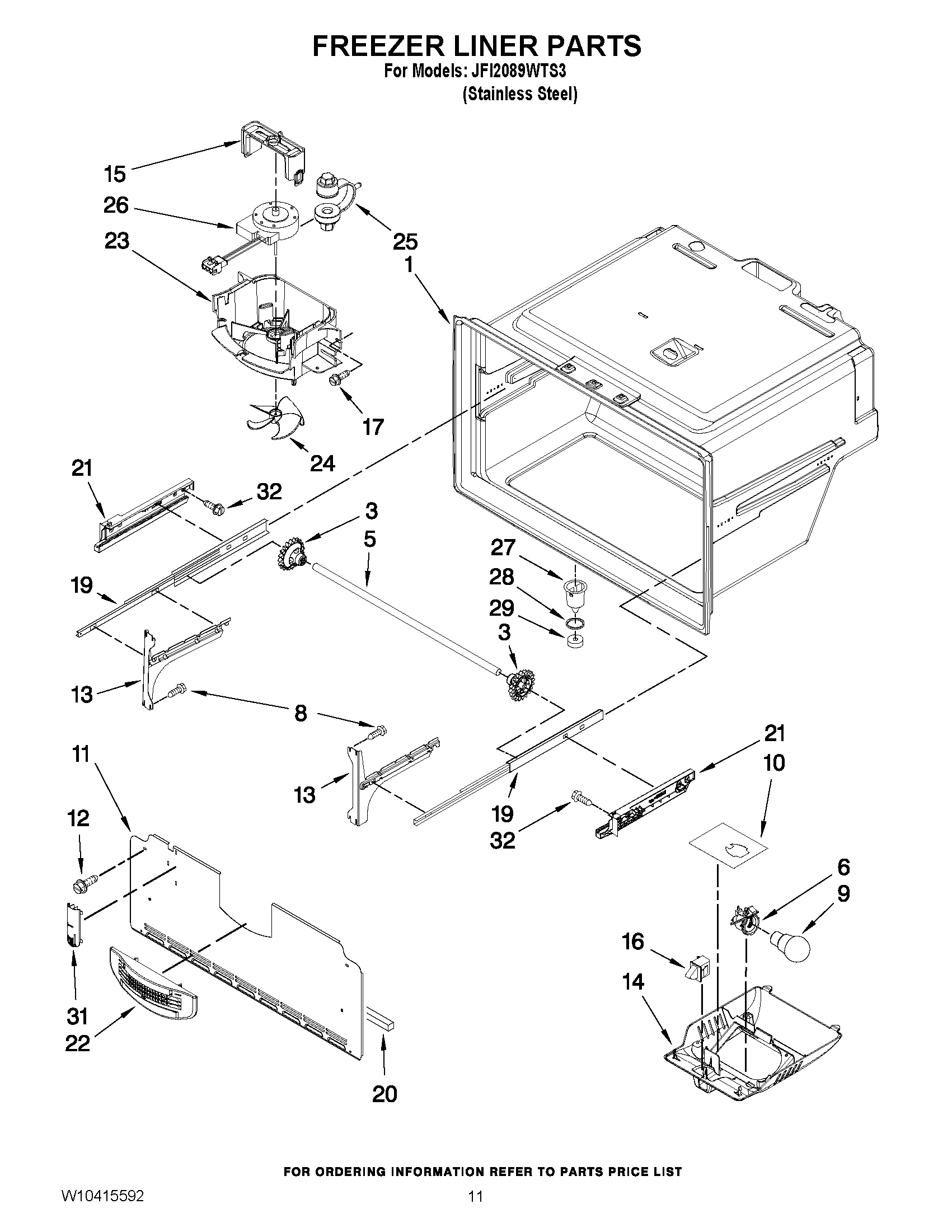

JFI2089WTS3 06 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	SHAFT
6	W11447232 Whirlpool Refrigerator Socket
8	Screw (8)
9	MAY 2255743
10	FOIL-FZ LIGHT
11	COVER, EVAP
12	SCREW (10)
13	MAY W10119064
13	MAY W10119295
14	MODULE, FREEZER LIGHT
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
19	Slide, Drawer (2)
20	GASKET, BOTTOM
21	MAY W10284689
21	MAY W10284688
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10257096
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
