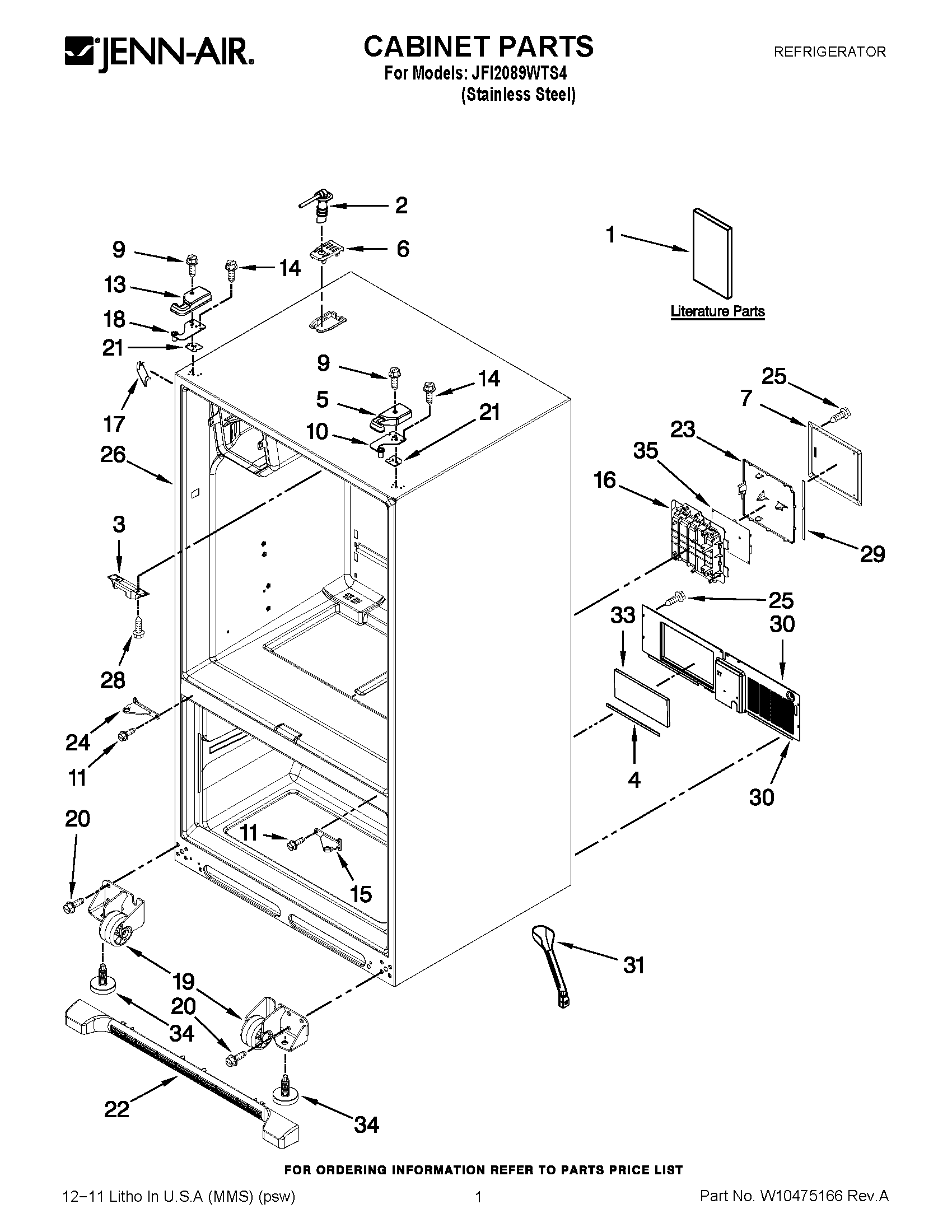

JFI2089WTS4 01 – CABINET PARTS

Products

PositionProduct
1MAY W10410714
1MAY W10275861
1MAY W10329369
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5MAY 12962302B
6MAY 12981401B
7MAY 12961602
9MAY 12992602
10MAY 12963205ED
11MAY W10339086
13MAY 12962301B
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
16MAY 12957601
17COVER, CORNER (BLACK)
18MAY 12963204ED
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY 12999502
21MAY 12999501
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23MAY W10296536
24HINGE, CENTER (BLACK, LEFT)
25SCREW
26LINER (NOT A SERVICEABLE PART)
28Screw (4)
29GASKET-HV BOX
30MAY W10270394
31MAY W10210988
33Insulation, Sound
34Brake, Foot
35MAY W10312695
