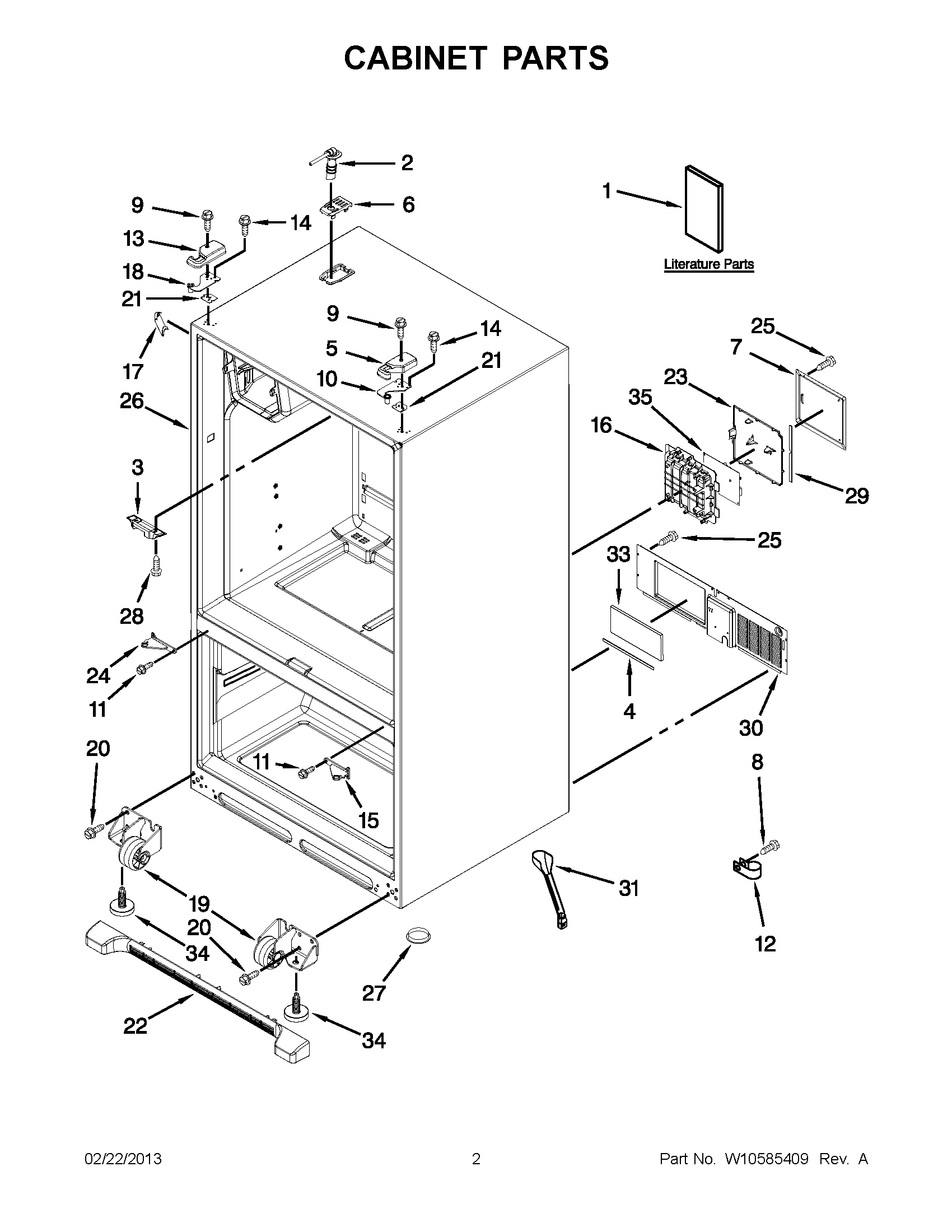

JFI2089WTS7 01 – CABINET PARTS

JFI2089WTS7 01 – CABINET PARTS

Written by

in

JFI2089WTS7 01 – CABINET PARTS

Products

PositionProduct
1MAY W10476808
1MAY W10275861
1MAY W10329369
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5MAY 12962302B
6MAY 12981401B
7MAY 12961602
8SCREW (10)
9MAY 12992602
10MAY 12963205ED
11MAY W10339086
12CLAMP, TUBE
13MAY 12962301B
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
16MAY 12957601
17COVER, CORNER (BLACK)
18MAY 12963204ED
19ROLLER ASSEMBLY (RIGHT HAND)
19ROLLER ASSEMBLY (LEFT HAND)
20Screw (8)
21MAY 12999502
21MAY 12999501
22GRILLE, TOE (BLACK)
23MAY W10296536
24HINGE, CENTER (BLACK, LEFT)
25SCREW
26LINER (NOT A SERVICEABLE PART)
27A3076901 Whirlpool Refrigerator Plug
28Screw (4)
29GASKET-HV BOX
30MAY W10270394
31TUBE-DRAIN
33Insulation, Sound
34Brake, Foot
35MAY W10312695
