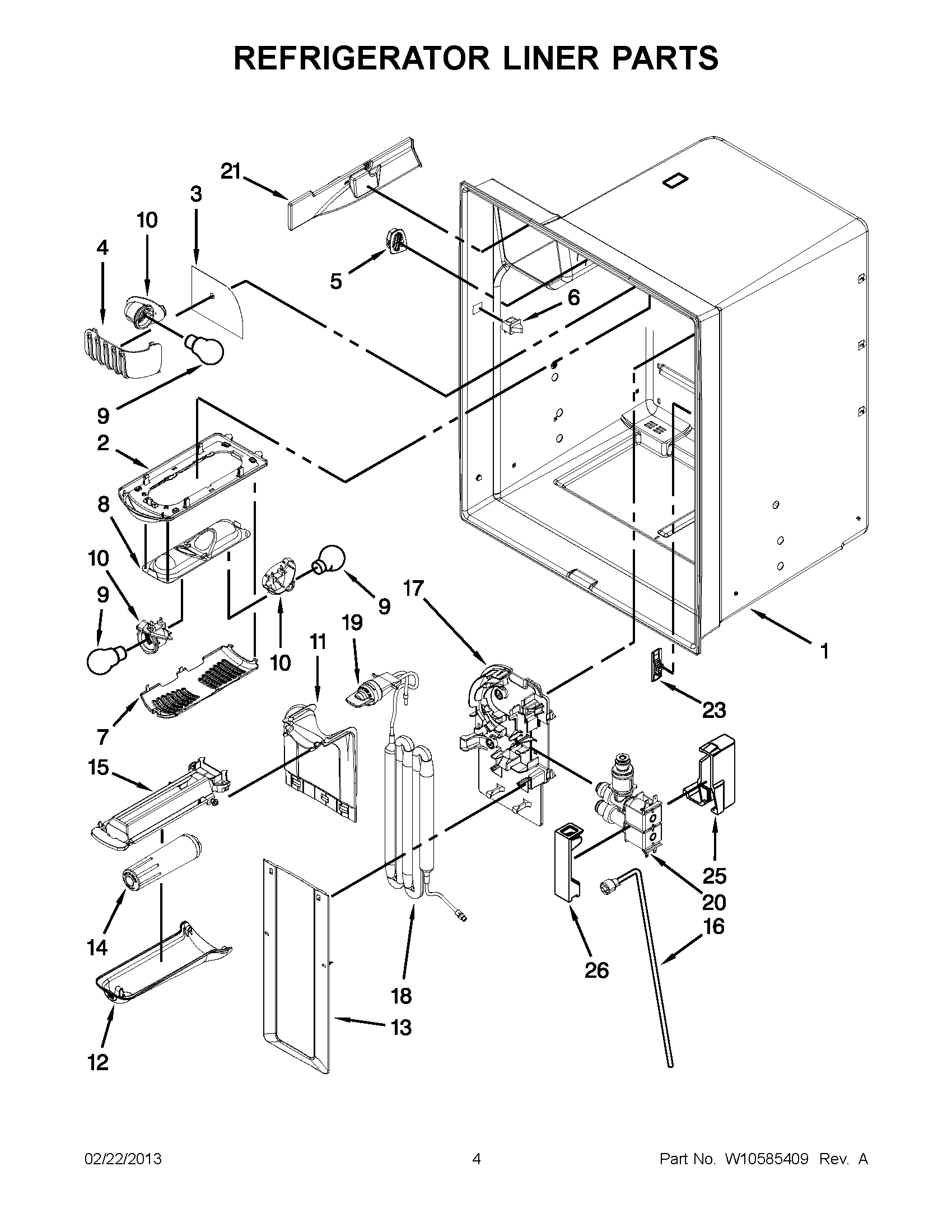

JFI2089WTS7 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	MAY 12691605
4	MAY 12921801
5	MAY W10555981
6	SWITCH, LIGHT
7	MAY 12905902
8	MAY W10443023
9	BULB, LIGHT
10	Socket, Light
11	Cover, Water Tank (Upper)
12	Lid, Water Filter
13	COVER, WATER TANK(LOWER)
14	MAY W10336197
15	MAY 12955901
16	WATERLINE
17	BRACKET, WATER TANK AND VALVE
18	MAY W10463663
19	MAY 12664501SP
20	MAY W10312696
21	MAY 13033601
23	MAY 12987301
25	MAY W10118193
26	MAY W10118194
