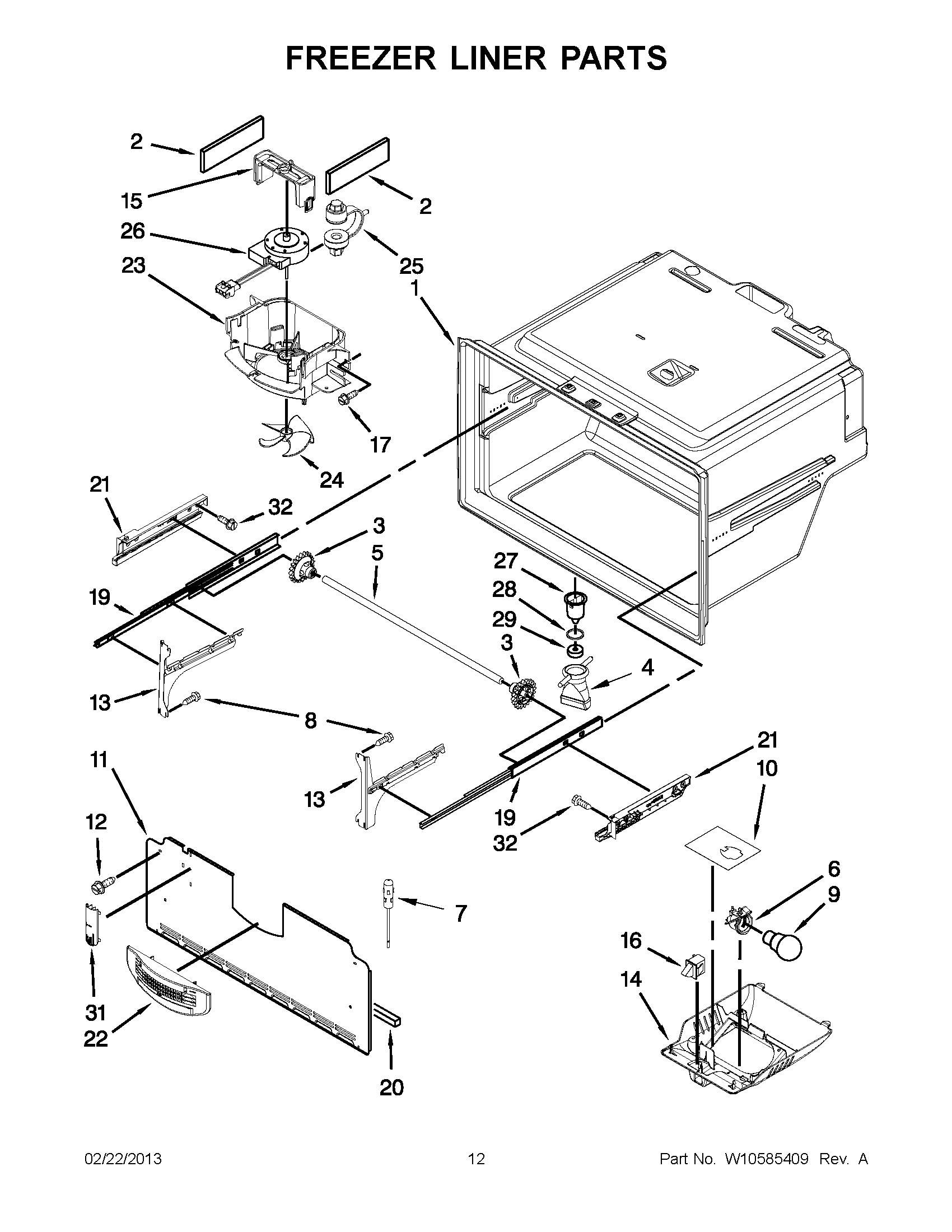

JFI2089WTS7 06 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY W10309238
5SHAFT
6Socket, Light
7THERMISTOR
8Screw (8)
9BULB, LIGHT
10FOIL-FZ LIGHT
11COVER, EVAP
12SCREW (10)
13BRACKET, DOOR (LEFT)
13BRACKET, DOOR (RIGHT)
14MODULE, FREEZER LIGHT
15MAY 12956601
16MAY 12466111SP
17MAY 12990504
19Slide, Drawer (2)
20Gasket, Bottom
21ADAPTER (LEFT HAND)
21ADAPTER (RIGHT HAND)
22MAY 12959901
23Shroud, Evap Fan
24Blade, Fan (Evaporator)
25Grommet, Fan Motor (2)
26MAY W10257096
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
