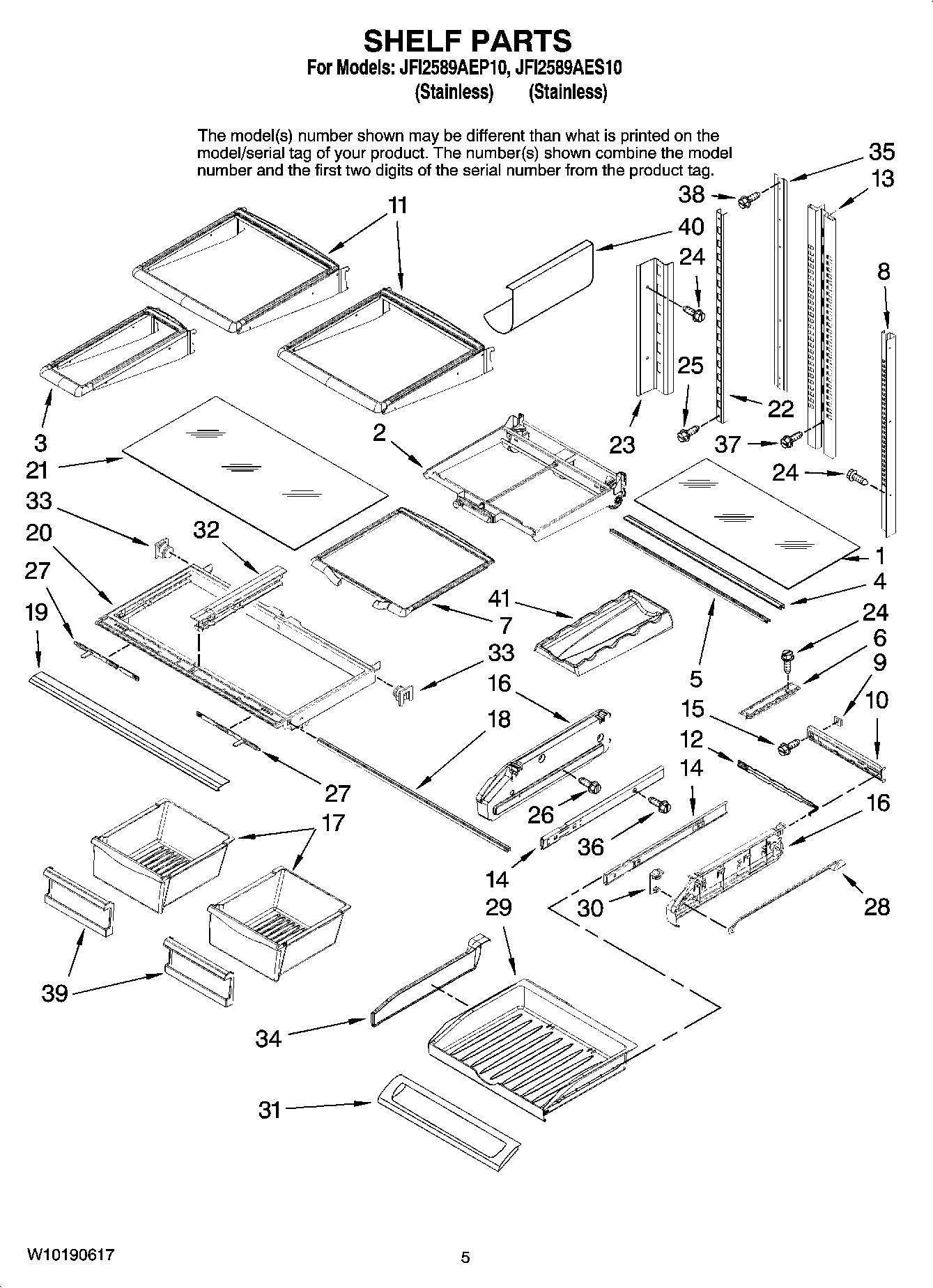

JFI2589AEP10 03 – SHELF PARTS

Products

Position	Product
1	MAY 67002761
2	FRAME ASSEMBLY, ELEVATOR SHELF
3	MAY W10187852
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	MAY W10187854
8	MAY 67006355
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	MAY 67005625
11	MAY W10187845
12	MAY 67003793
13	MAY 67006356
14	Glide, Drawer(2)
16	Endcap, Pantry (Right)
16	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	WP67004515 Whirlpool Crisper Drawer
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	Trim, Crisper
20	WP67003854 Whirlpool Shelf Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	MAY 67006358
23	MAY 67006354
24	MAY 67006400
25	W10709795 Whirlpool Refrigerator Screw
27	MAY 67005864
28	WP67003795 Whirlpool Refrigerator Temperature Control Bar
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	WPW10326469 Whirlpool Drawer Slide Rail
33	WP12603701 Whirlpool Refrigerator Support
34	WP67002759 Whirlpool Refrigerator Divider
35	MAY 67006536
36	WP98165 Whirlpool Screw
37	MAY W10164192
38	Screw (2)
39	Front, Crisper Pan (2)
40	MAY 67005999
41	67001656 Whirlpool Refrigerator Bottle Trivet
