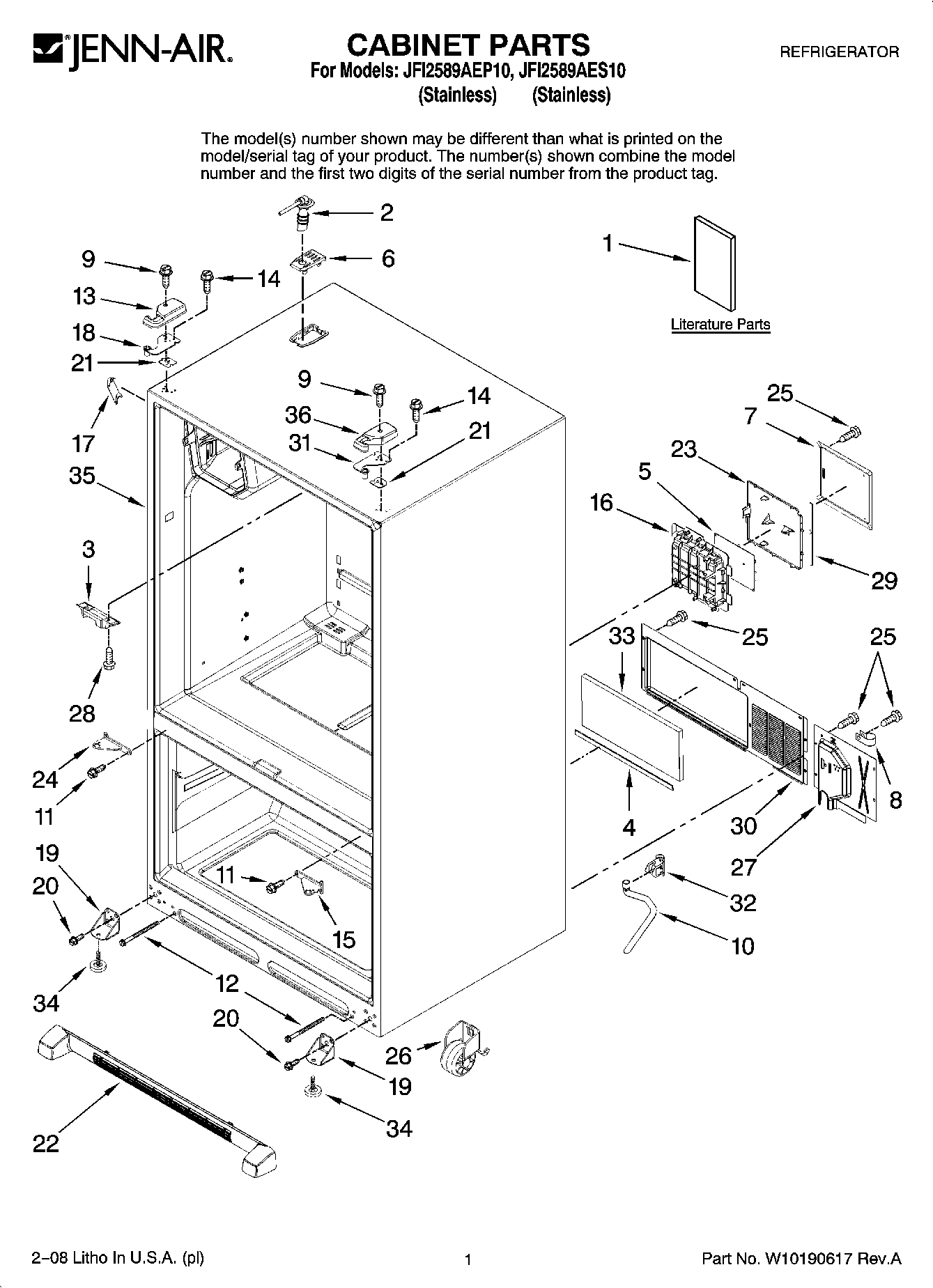

JFI2589AES10 01 – CABINET PARTS

JFI2589AES10 01 – CABINET PARTS

Written by

in

JFI2589AES10 01 – CABINET PARTS

Products

PositionProduct
1MAY W10190618
1MAY 16026312
1MAY W10189628
1MAY W10189629
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4Gasket
5MAY W10164420
6MAY 67006320
7MAY 67006427
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10MAY W10164397
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13W10337647 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10918168 Whirlpool Refrigerator Door Hinge
16WP67006390 Whirlpool Refrigerator High Voltage Box
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18MAY 67005950
1912906303WD Whirlpool Refrigerator Bracket
20MAY 67006564
2112999501 Whirlpool Refrigerator Hinge Shim
2112999502 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
2367006428 Whirlpool Refrigerator LID, HV Control
2467006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
25Screw (10)
26Roller Assy.(Rear)
27MAY 67006426
28SCREW
29MAY 67006429
30BACK, MACH COMP
31W11592374 Whirlpool Refrigerator Top Door Hinge
3267001067 Whirlpool Refrigerator Drain Tube Clip
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
36WP67005956 Whirlpool Refrigerator Cover
