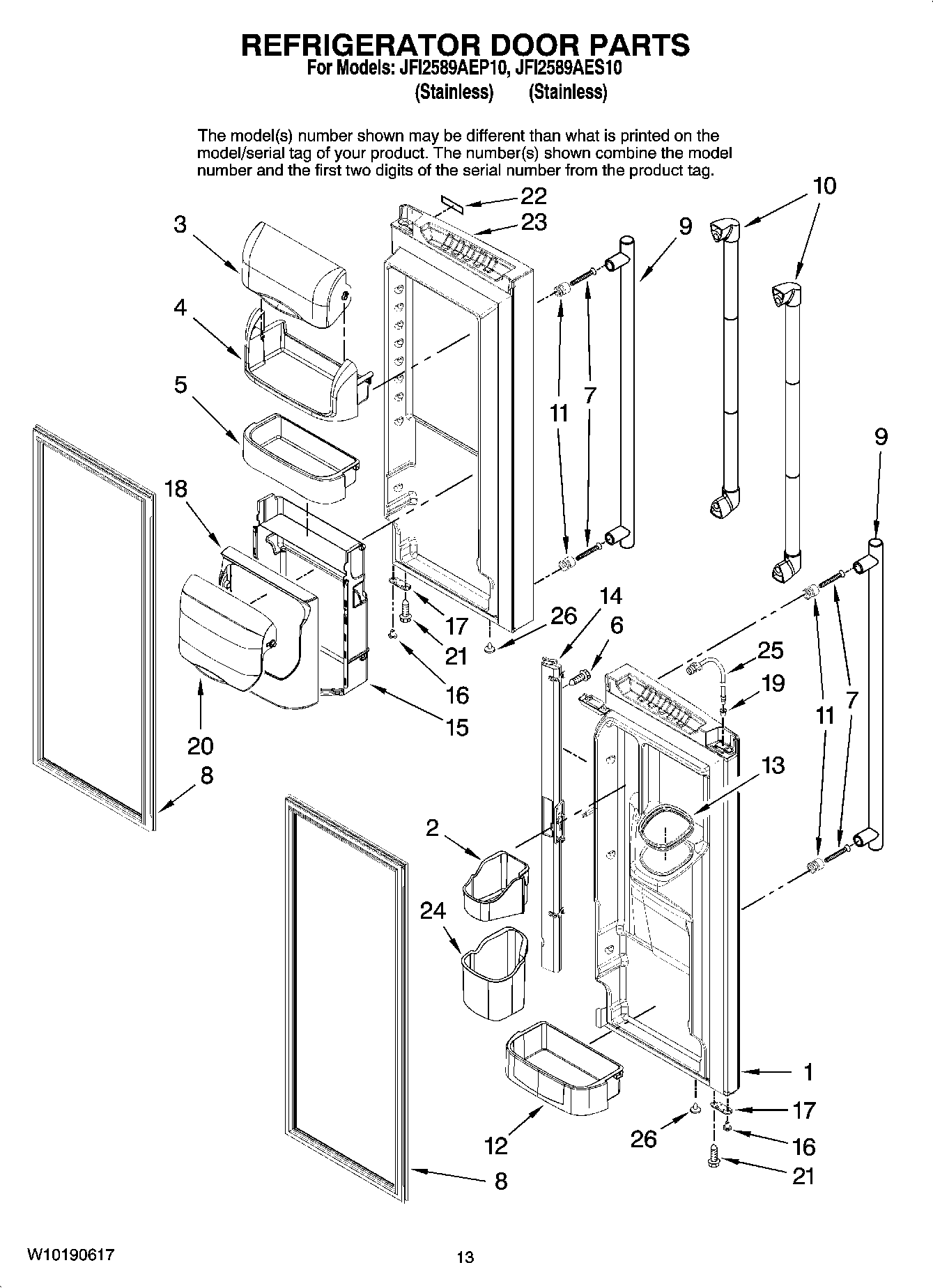

JFI2589AES10 07 – REFRIGERATOR DOOR PARTS

JFI2589AES10 07 – REFRIGERATOR DOOR PARTS

Written by

in

JFI2589AES10 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10187649
2Bin, Upper Door
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67006313 Whirlpool Refrigerator Chiller Bucket
6MAY 67006400
7SCREW, HANDLE
8MAY W10162891
9Handle, Door (Stainless)
10WP12859109 Whirlpool Door Handle
11MAY 67006109
12MAY W10187434
13WPW10287601 Whirlpool Seal
14WPW10151713 Whirlpool Refrigerator Mullion Rail
16WP67003639 Whirlpool Refrigerator Closer
17W11708403 Whirlpool Door Stop
18W11266639 Whirlpool Refrigerator Chiller
1912996601 Whirlpool Refrigerator Bushing Clip
20DOOR-CHILL
21Screw (8)
22W11636815 Whirlpool Nameplate
2212848704 Whirlpool Refrigerator Nameplate
23MAY W10187645
24Bin, Lower Door
2512962106 Whirlpool Refrigerator Waterline Door
2667004838 Whirlpool Refrigerator Button Vent Plug
