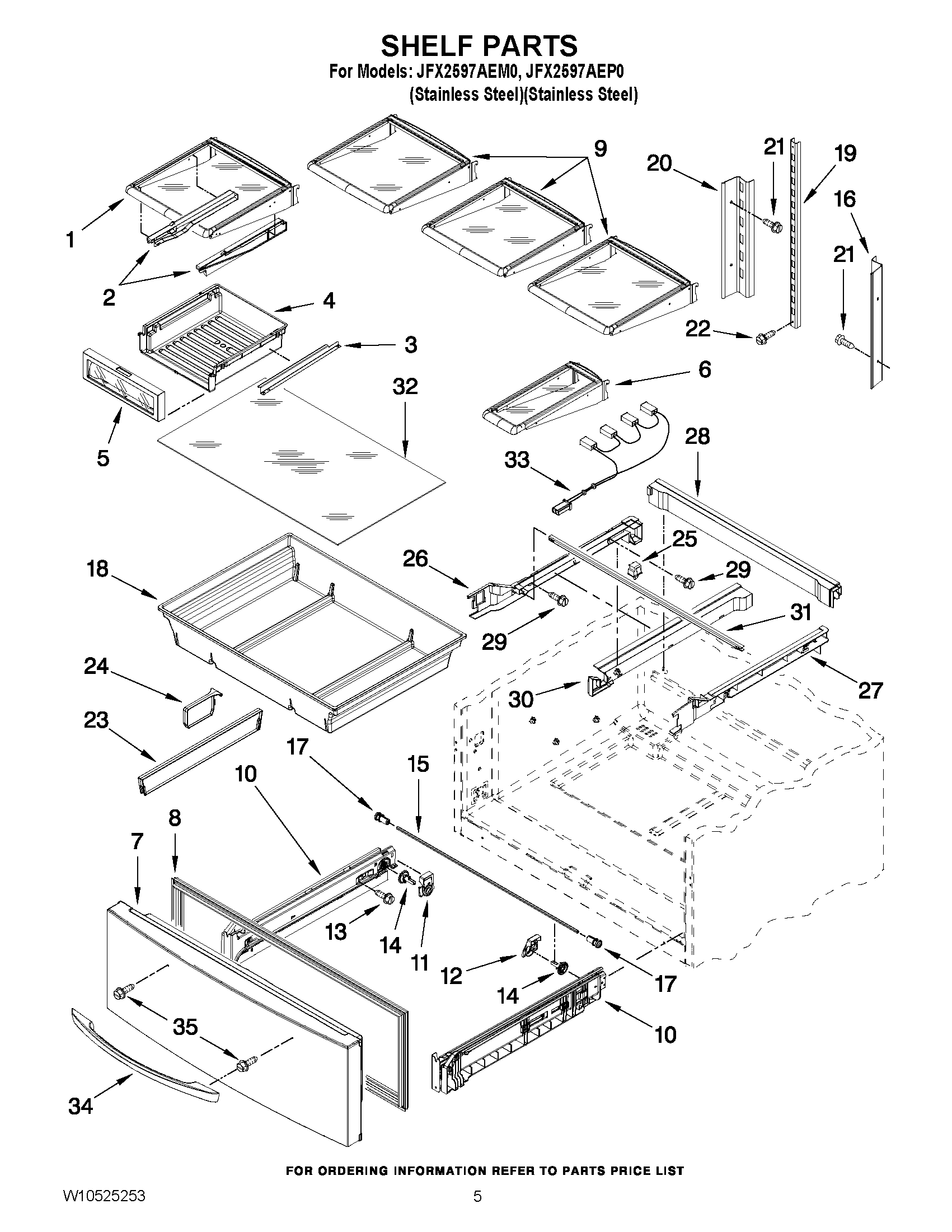

JFX2597AEM0 03 – SHELF PARTS

Products

Position	Product
1	ASSEMBLEY, SHELF & ROLLER
2	RUNNER, PAN ROLLER (LEFT HAND)
2	RUNNER, PAN ROLLER (RIGHT HAND)
3	MAY W10385043
4	MAY W10366640
5	MAY W10396909
6	SHELF, MINI
7	MAY 13107112S
8	GASKET-PANTRY (GREY)
9	MAY W10329925
10	ADAPTER-PANTRY (RIGHT)
10	ADAPTER-PANTRY (LEFT)
11	GEAR, SPUR
12	COVER, GEAR (LEFT HAND)
12	COVER, GEAR (RIGHT HAND)
13	SCREW
14	SCREW (STAINLESS)
15	SHAFT, RACK
16	LADDER, SIDE RH
17	COLLAR, GEAR
18	MAY W10268846
19	MAY W10273464
20	MAY W10251968
21	MAY 12990513
22	MAY 12990515
23	DIVIDER, LARGE PANTRY
24	DIVIDER, SMALL PANTRY
25	W11291138 Whirlpool Refrigerator Door Switch
26	RAIL, PANTRY (LEFT HAND)
27	RAIL, PANTRY (RIGHT HAND)
28	MAY W10331298
29	Screw (8)
30	COVER, PANTRY RAIL (LEFT HAND)
31	MAY 12227305WD
32	MAY W10346616
33	HARNESS, RC-LED
34	MAY W10446527
34	HANDLE, DOOR (STAINLESS)
35	SCREW
