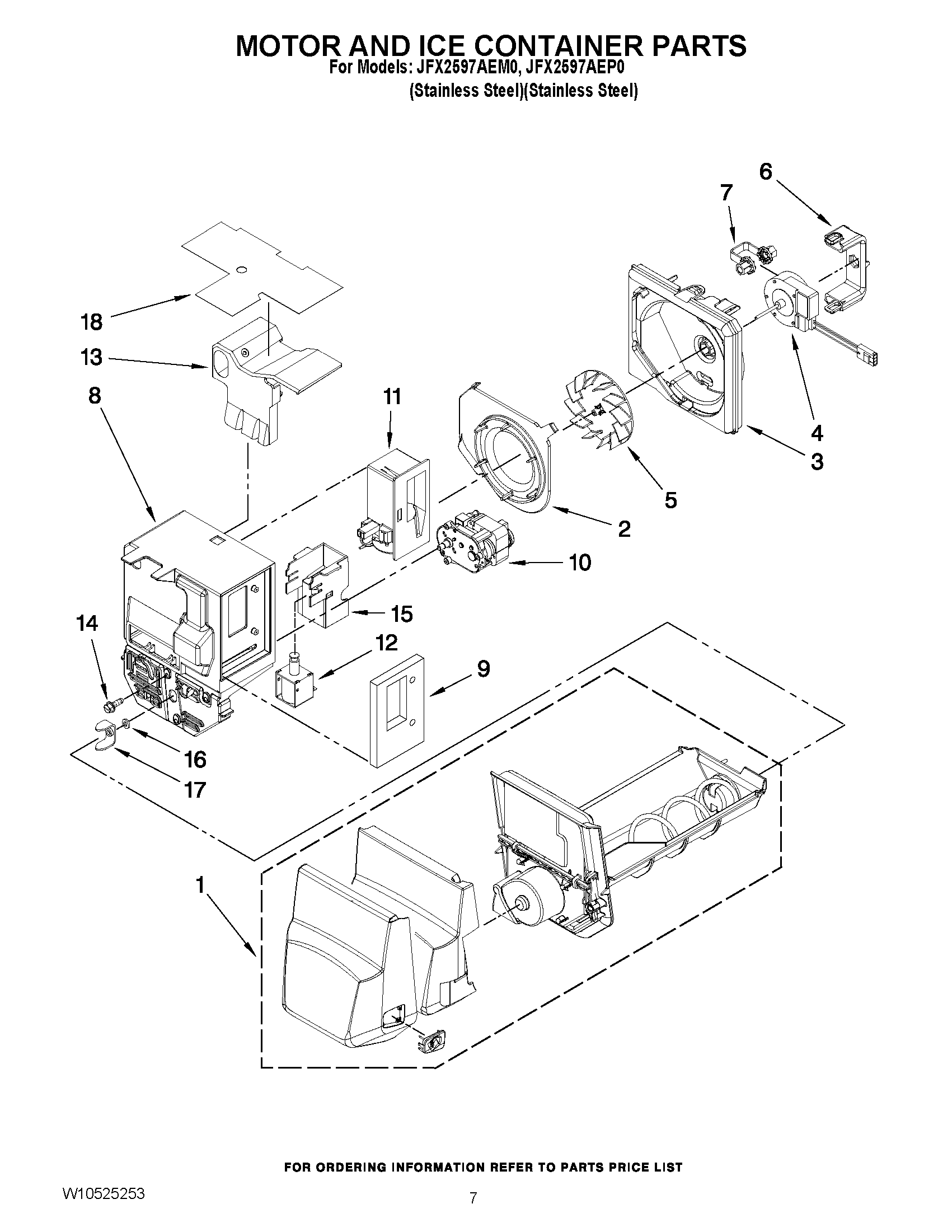

JFX2597AEM0 04 – MOTOR AND ICE CONTAINER PARTS

Written by

Products

Position	Product
1	ICE BIN ASSEMBLY (SMALL CUBE) (INCLUDES AUGER)
2	MAY W10121282
3	MAY W10309863
4	MAY W10308033
5	MAY W10123444
6	MAY 12956603
7	MAY W10151687
8	MAY W10309864
9	MAY 12920001
10	MAY W10309868
11	DAMPER, CONTROL
12	ASSEMBLY, SOLENOID
13	MAY W10118612
14	SCREW (10)
15	MAY W10346971
16	WASHER
17	YOKE, ICE (DISPENSER)
18	MAY W10142628
