JFX2597AEM0 05 – ICEMAKER PARTS
Written by
in

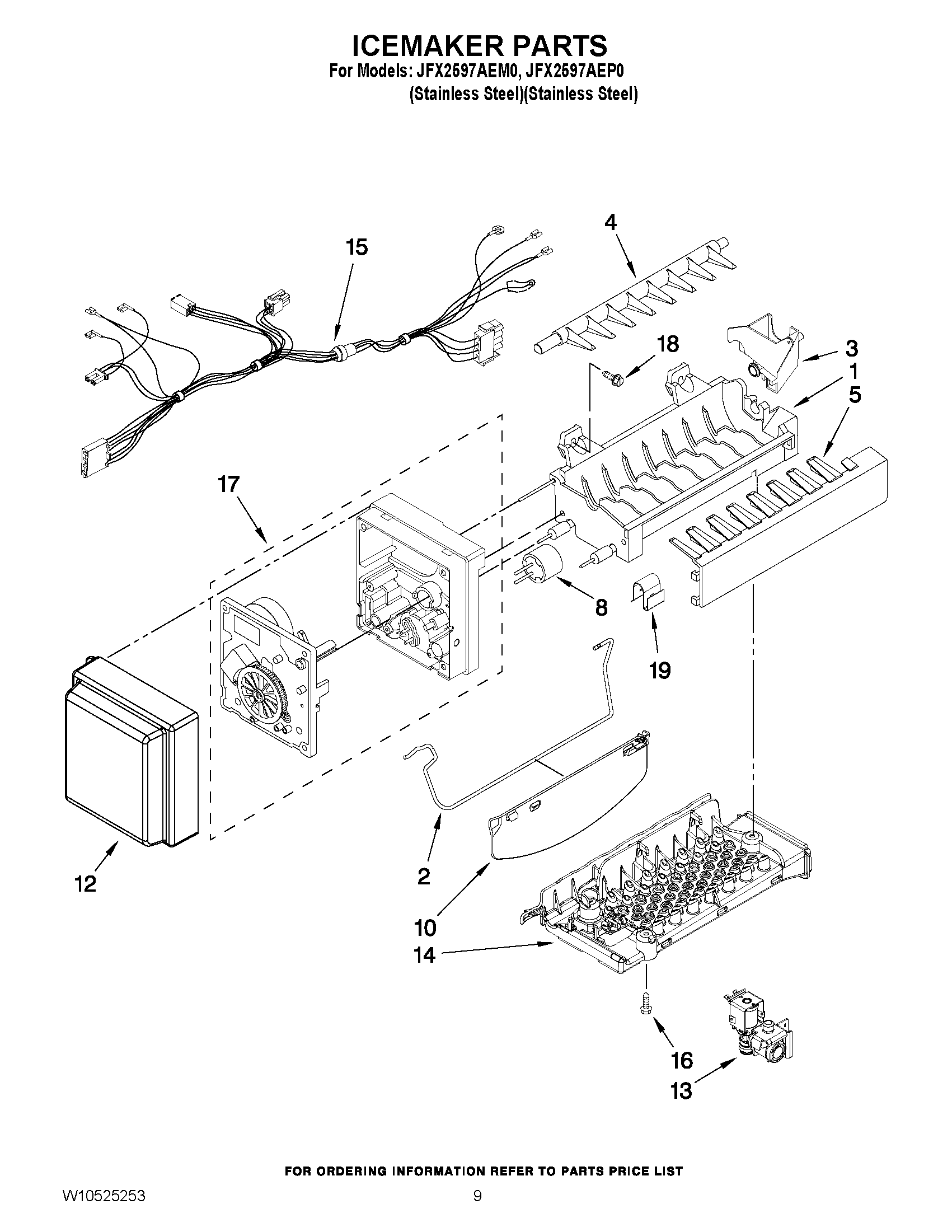

JFX2597AEM0 05 – ICEMAKER PARTS
Products
Position
Product
1
ASSEMBLY, MOLD AND HEATER
2
MAY W10378254
3
MAY W10377998
4
MAY W10318914
5
ICE STRIPPER
8
MAY W10290336
10
MAY W10351019
12
COVER, FRONT
13
VALVE, SINGLE
14
IMPINGER ASSY.
15
MAY W10404016
16
SCREW (10)
17
ASSEMBLY, MODULE
18
MAY W10068250
19
Clip
100
ASSEMBLY, ICEMAKER
←
