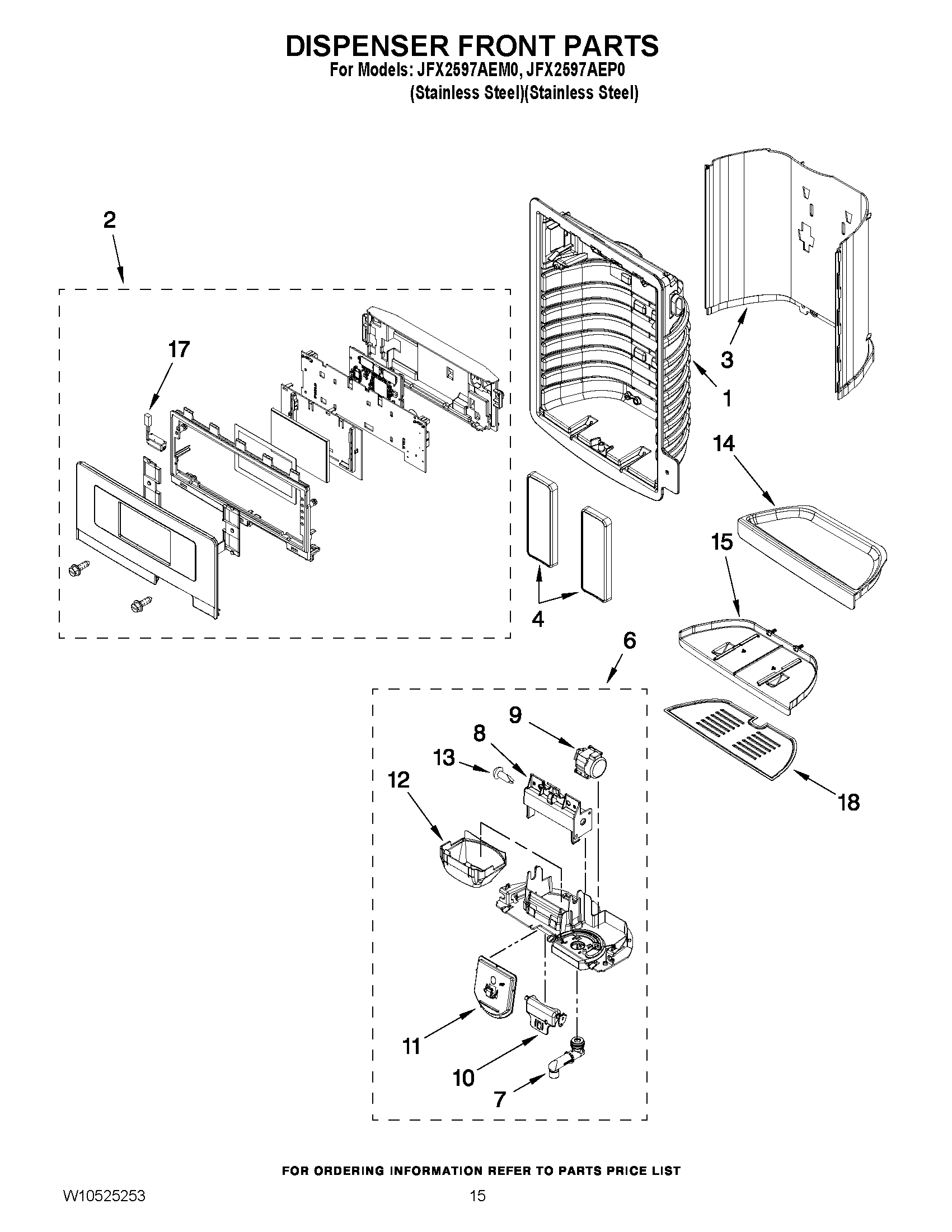

JFX2597AEM0 08 – DISPENSER FRONT PARTS

JFX2597AEM0 08 – DISPENSER FRONT PARTS

Written by

in

JFX2597AEM0 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10458218
3FALSE WALL DISP. (STAINLESS)
4ASSEMBLY, PAD (GREY)
6MAY W10353552
7MAY 2316647
8MAY W10174827
9MAY W10205979
10MAY W10346124
11DOOR, ICE
12GUIDE, ICE
13CLIP, MOTOR COUPLING
14TRAY, DISPENSER (STAINLESS)
15SLIDE, TRAY DISPENSER (GREY)
17MAY W10238083
18MAY W10215957
