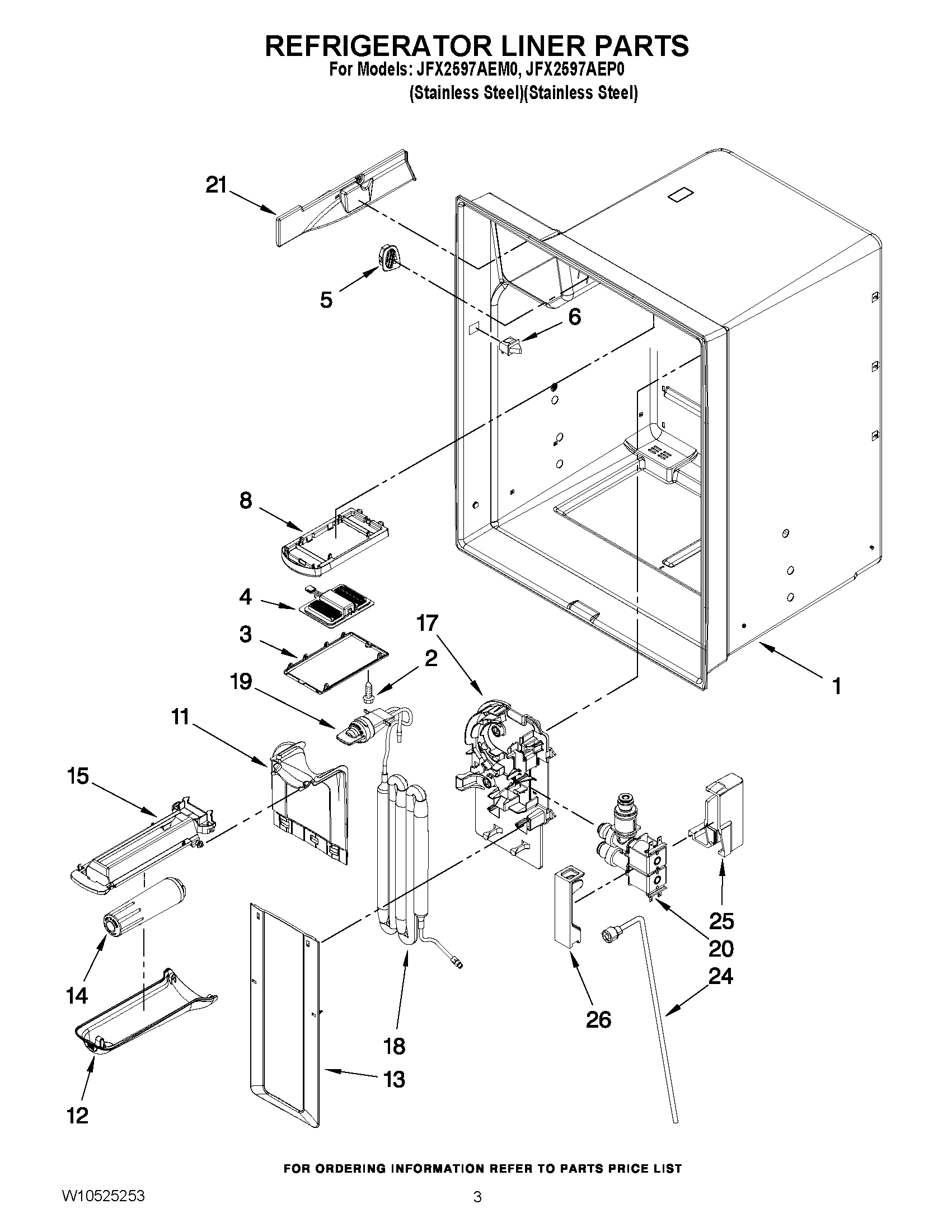

JFX2597AEP0 02 – REFRIGERATOR LINER PARTS

JFX2597AEP0 02 – REFRIGERATOR LINER PARTS

Written by

in

JFX2597AEP0 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 12990204
3LENS, RC LED
4MODULE, MAIN LED
5MAY W10396902
6SWITCH, LIGHT
8HOUSING-RC-LED
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY UKF8001
15MAY 12955901
17BRACKET, WATER TANK AND VALVE
18MAY W10418477
19MAY 12664501SP
20MAY W10349187
21MAY W10309869
24MAY W10444033
25MAY W10118193
26MAY W10118194
