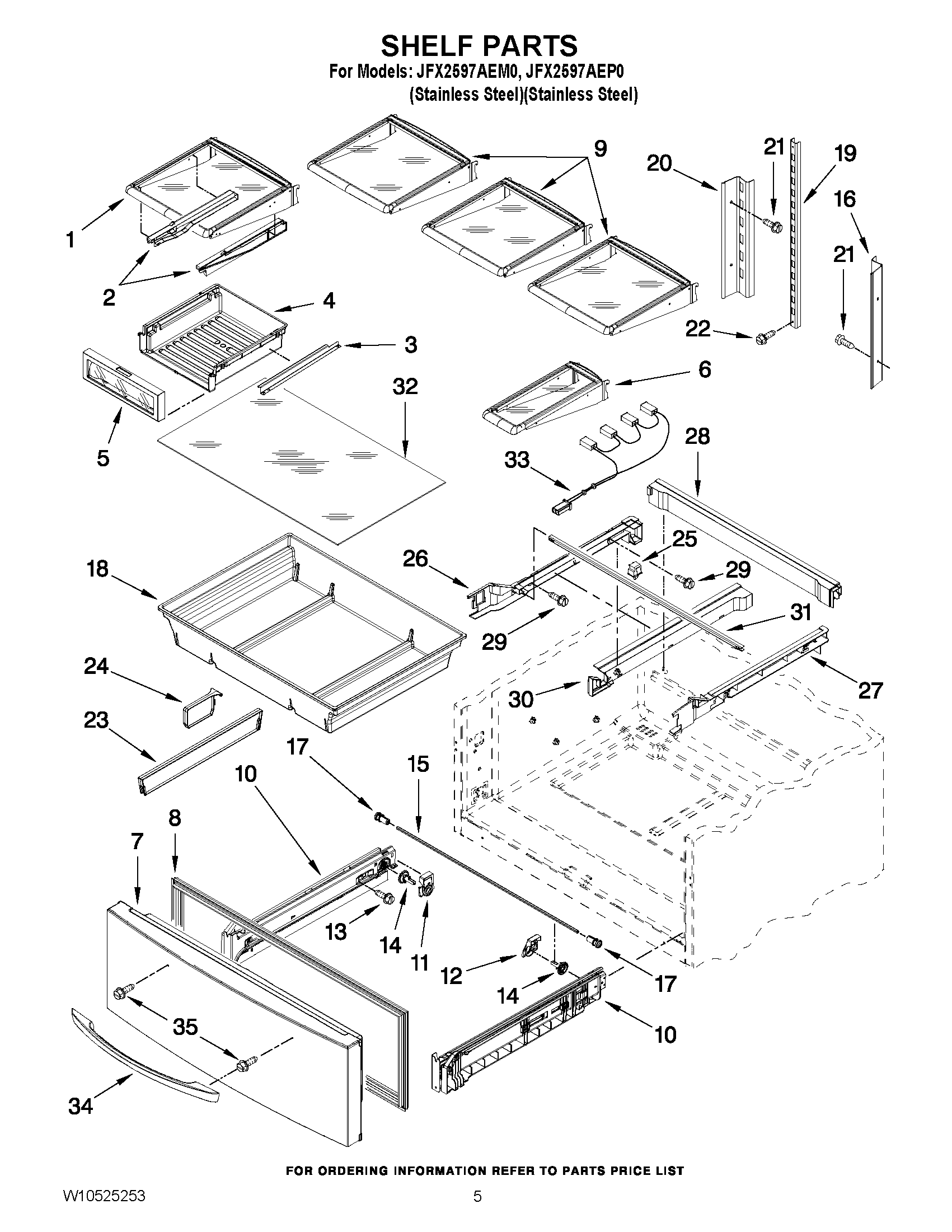

JFX2597AEP0 03 – SHELF PARTSadmin2025-04-26T09:03:20+00:00JFX2597AEP0 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLEY, SHELF & ROLLER |
| 2 | RUNNER, PAN ROLLER (LEFT HAND) |
| 2 | RUNNER, PAN ROLLER (RIGHT HAND) |
| 3 | MAY W10385043 |
| 4 | MAY W10366640 |
| 5 | MAY W10396909 |
| 6 | SHELF, MINI |
| 7 | MAY 13107112S |
| 8 | GASKET-PANTRY (GREY) |
| 9 | MAY W10329925 |
| 10 | ADAPTER-PANTRY (RIGHT) |
| 10 | ADAPTER-PANTRY (LEFT) |
| 11 | GEAR, SPUR |
| 12 | COVER, GEAR (LEFT HAND) |
| 12 | COVER, GEAR (RIGHT HAND) |
| 13 | SCREW |
| 14 | SCREW (STAINLESS) |
| 15 | SHAFT, RACK |
| 16 | LADDER, SIDE RH |
| 17 | COLLAR, GEAR |
| 18 | MAY W10268846 |
| 19 | MAY W10273464 |
| 20 | MAY W10251968 |
| 21 | MAY 12990513 |
| 22 | MAY 12990515 |
| 23 | DIVIDER, LARGE PANTRY |
| 24 | DIVIDER, SMALL PANTRY |
| 25 | W11291138 Whirlpool Refrigerator Door Switch |
| 26 | RAIL, PANTRY (LEFT HAND) |
| 27 | RAIL, PANTRY (RIGHT HAND) |
| 28 | MAY W10331298 |
| 29 | Screw (8) |
| 30 | COVER, PANTRY RAIL (LEFT HAND) |
| 31 | MAY 12227305WD |
| 32 | MAY W10346616 |
| 33 | HARNESS, RC-LED |
| 34 | MAY W10446527 |
| 34 | HANDLE, DOOR (STAINLESS) |
| 35 | SCREW |
