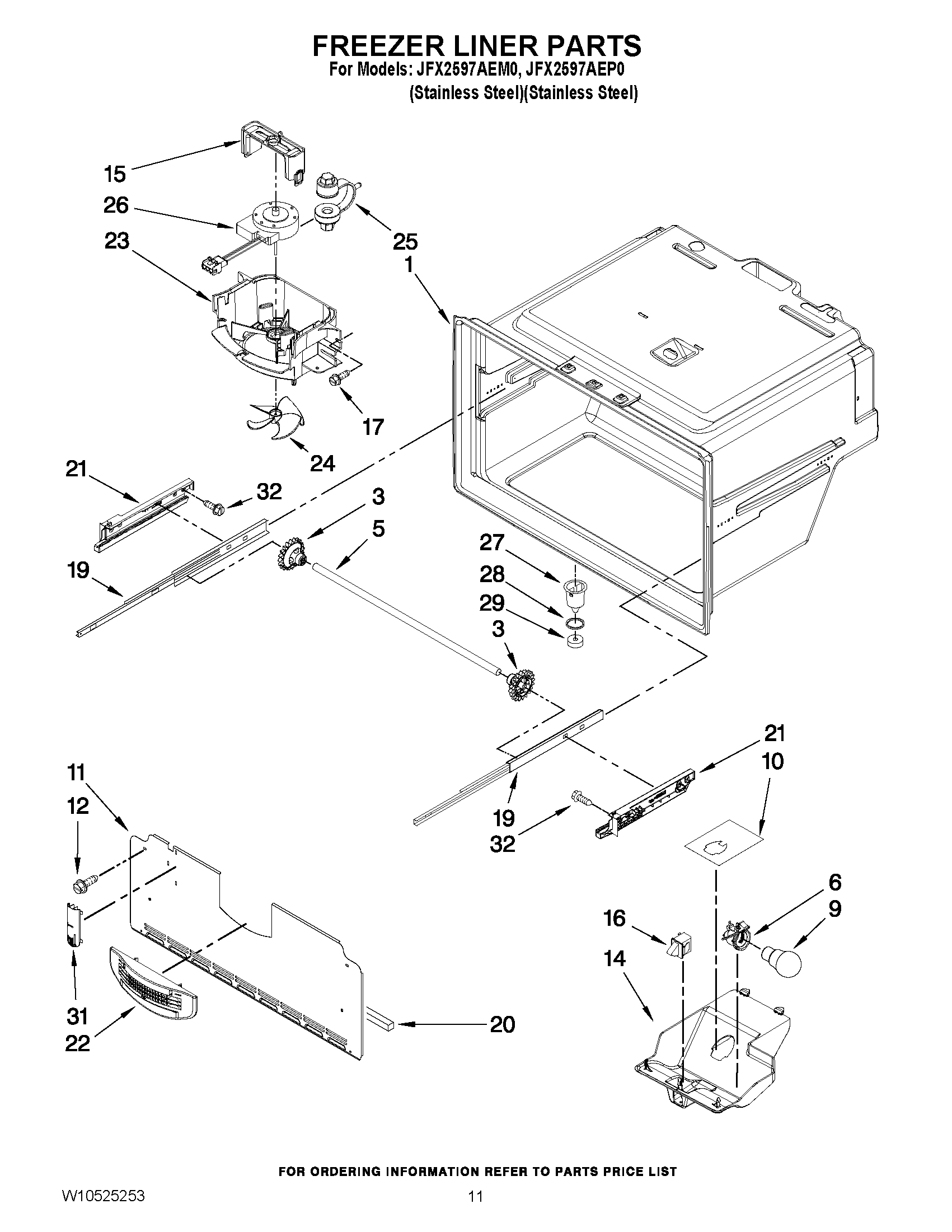

JFX2597AEP0 06 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
312002497 Whirlpool Refrigerator Drawer Gear Kit
5SHAFT
6W11447232 Whirlpool Refrigerator Socket
9BULB, LIGHT
10FOIL-FZ LIGHT
11COVER, EVAP
12SCREW (10)
14MODULE, FREEZER LIGHT
15MAY 12956601
16MAY 12466111SP
17MAY 12990504
19SLIDE, DRAWER (2)
20GASKET, BOTTOM
21MAY W10284682
21MAY W10284683
22MAY 12959901
23Shroud, Evap Fan
24Blade, Fan (Evaporator)
25Grommet, Fan Motor (2)
26MOTOR, EVAPORATOR
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
