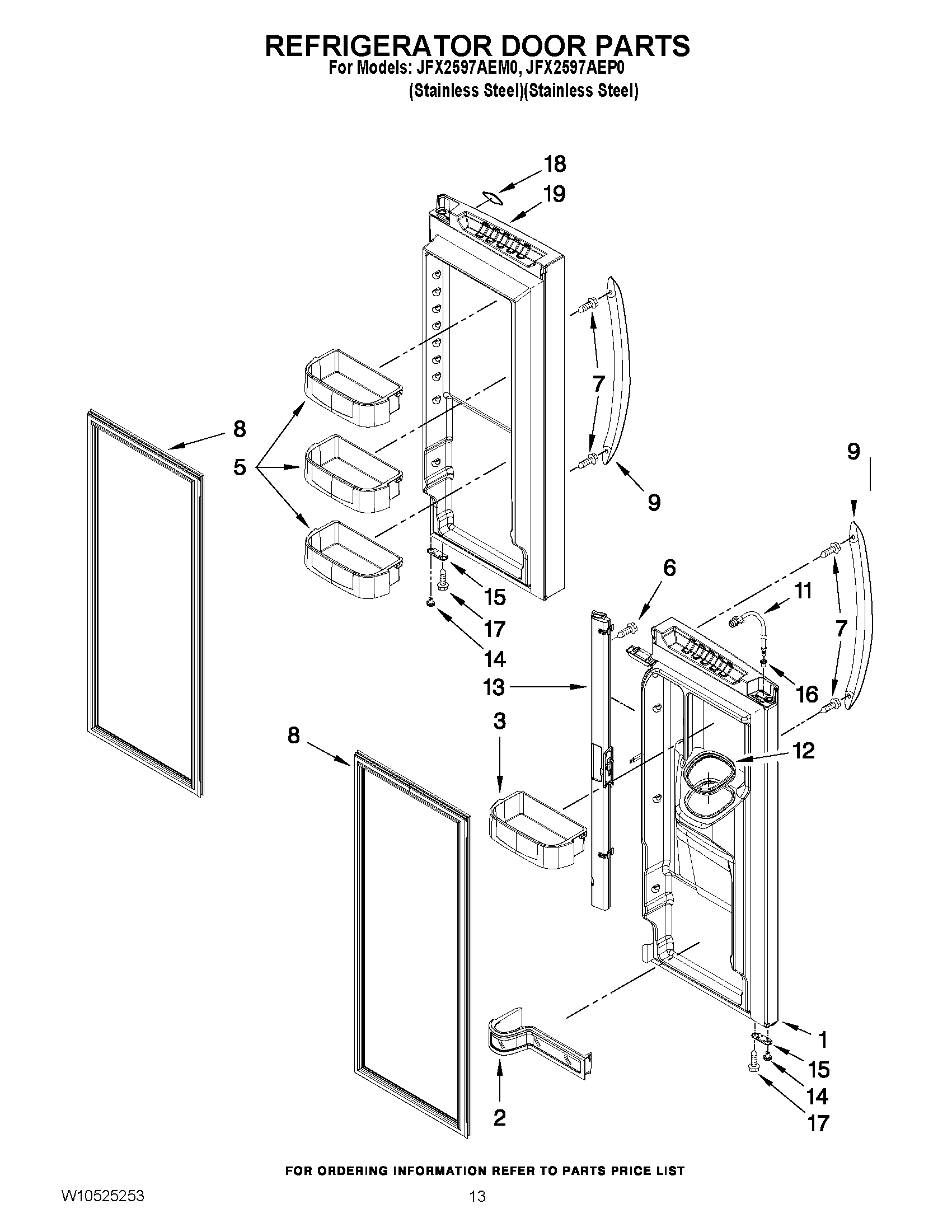

JFX2597AEP0 07 – REFRIGERATOR DOOR PARTS

JFX2597AEP0 07 – REFRIGERATOR DOOR PARTS

Written by

in

JFX2597AEP0 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (MONO STAINLESS)
2MAY W10355269
3MAY W10355270
5MAY W10355264
6MAY 12990513
7SCREW
8MAY W10443273
9MAY W10509005
9HANDLE, PANTRY DOOR (STAINLESS (JFX2597AEP2))
11MAY W10296451
12MAY W10287601
13MULLION, DOOR (GREY)
14MAY 12028505AP
15MAY 12968202AP
16MAY 12996601
17Screw (8)
18NAMEPLATE (STAINLESS (JFX2597AEP2))
18ASSEMBLY, BADGE (STAINLESS)
19MAY 13107319S
