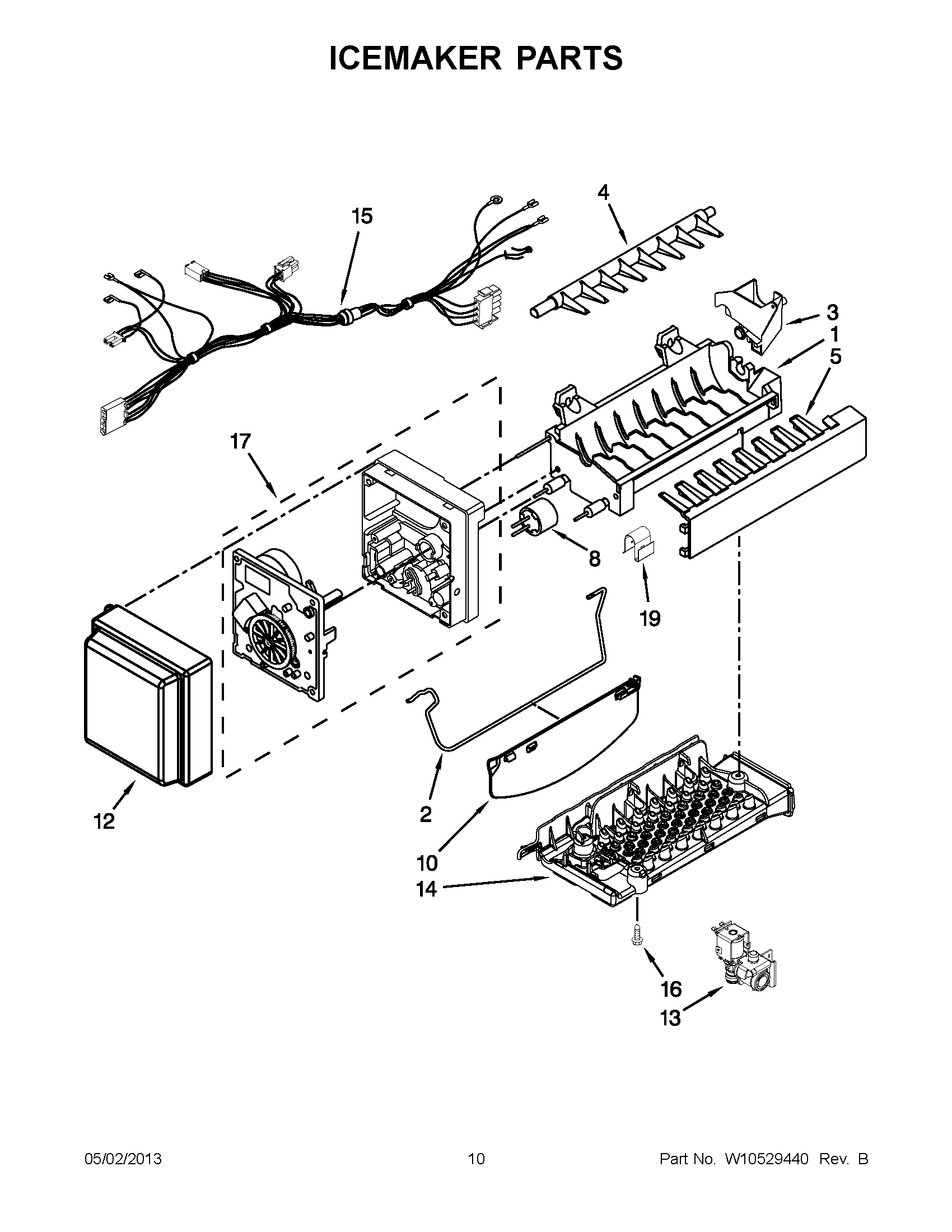

JFX2597AEP2 05 – ICEMAKER PARTS

Products

PositionProduct
1ASSEMBLY, MOLD AND HEATER
2MAY W10378254
3MAY W10377998
4MAY W10318914
5ICE STRIPPER
8MAY W10290336
10MAY W10351019
12COVER, FRONT
13MAY W10498990
14IMPINGER ASSY.
15MAY W10404016
16SCREW (10)
17ASSEMBLY, MODULE
19Clip
100ASSEMBLY, ICEMAKER
