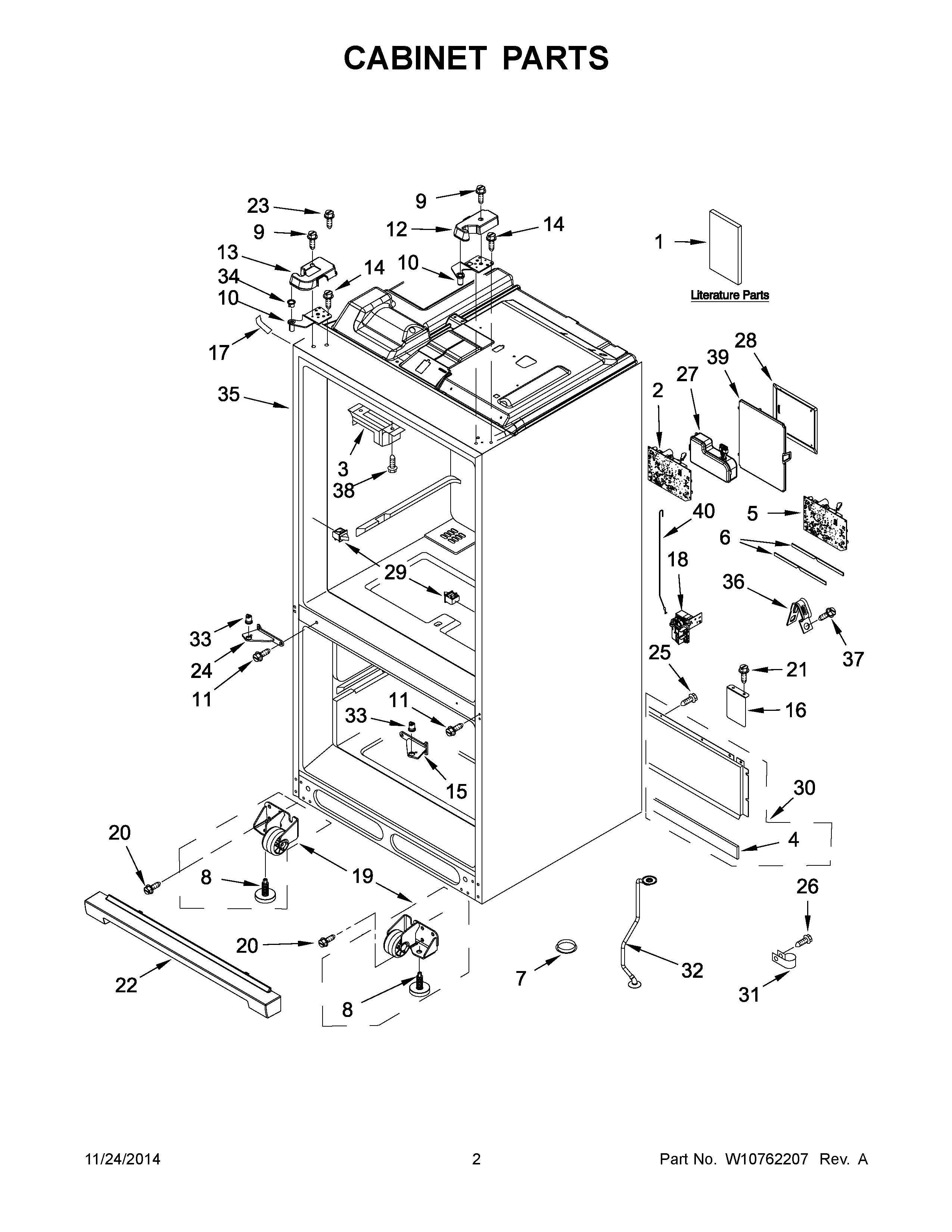

JFX2897DRM00 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET, ENERGY GUIDE
1BTECH SHEET, USE AND CARE GUIDE
1MAY W10625845
1AMAY W10676128
2SUPPLY, POWER
3MAY W10344432
4MAY W10505487
5MAY W10739092
6GASKET, HV BOX
7A3076901 Whirlpool Refrigerator Plug
8Brake, Foot
9MAY 12992602
10AHINGE, TOP (RIGHT HAND)
10HINGE, TOP (LEFT HAND)
11SCREW
12MAY W10407158
13MAY W10471618
14SCREW (BLACK)
15HINGE, CENTER (RIGHT) (GREY)
16MAY W10336736
17COVER, CORNER (GREY)
18VALVE, WATER
19ROLLER ASSEMBLY (LEFT HAND)
19AROLLER ASSEMBLY (RIGHT HAND)
20Screw (8)
21MAY 12990701
22MAY W10637671
23SCREW
24HINGE, CENTER (LEFT) (GREY)
26SCREW (10)
27MAY W10306786
28MAY W10485658
29MAY 12466105
30MAY W10577369
31CLAMP, TUBE
32MAY W10503562
33MAY W10505294
34MAY W10212137
35LINER (NOT A SERVICEABLE PART)
36MAY 549193
37MAY W10141645
38Screw (4)
39MAY W10277839
40MAY W10678711
