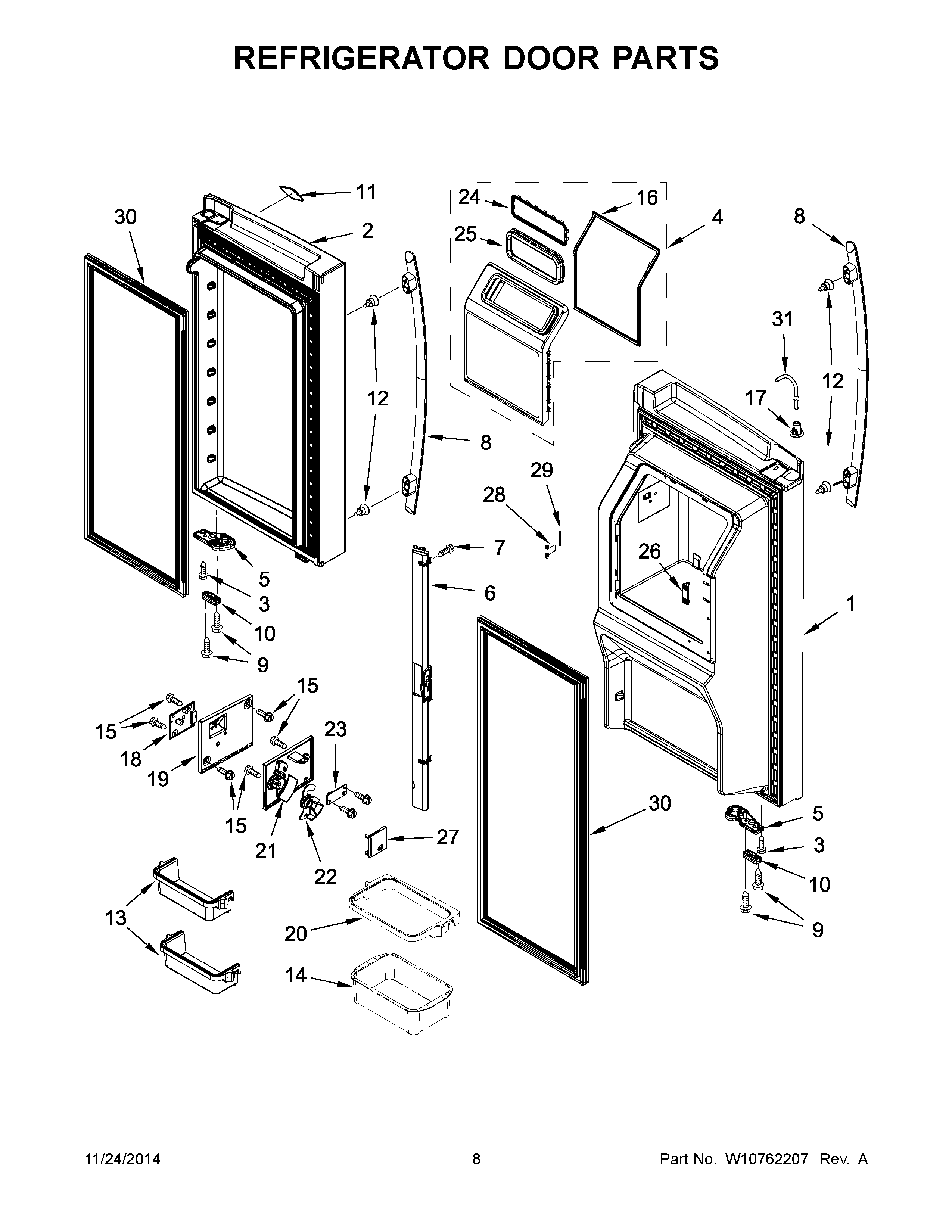

JFX2897DRM00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (INCLUDES ITEM 30) (STAINLESS)
2DOOR, RIGHT (INCLUDES ITEM 30) (STAINLESS)
3MAY W10464016
4MAY W10549590
5MAY W10712952
5AMAY W10712953
6MAY W10654774
7MAY 12990204
8HANDLE, DOOR (STAINLESS)
9MAY 12990504
10MAY W10407188
11ASSEMBLY, BADGE (STAINLESS)
12MAY W10460893
13MAY W10640341
14MAY W10248856
15Screw (2)
16MAY W10347085
17CLIP, TUBE
18MAY W10518658
19MAY W10258510
20MAY W10630303
21MAY W10258502
22MAY W10258540
23MAY W10518659
24RETAINER, ICE CHUTE
25MAY W10347087
26MAY W10646855
27DOOR, EMITTER
28SPRING, DOOR
29PIN, DOOR
30MAY W10503817
31MAY W10499015
