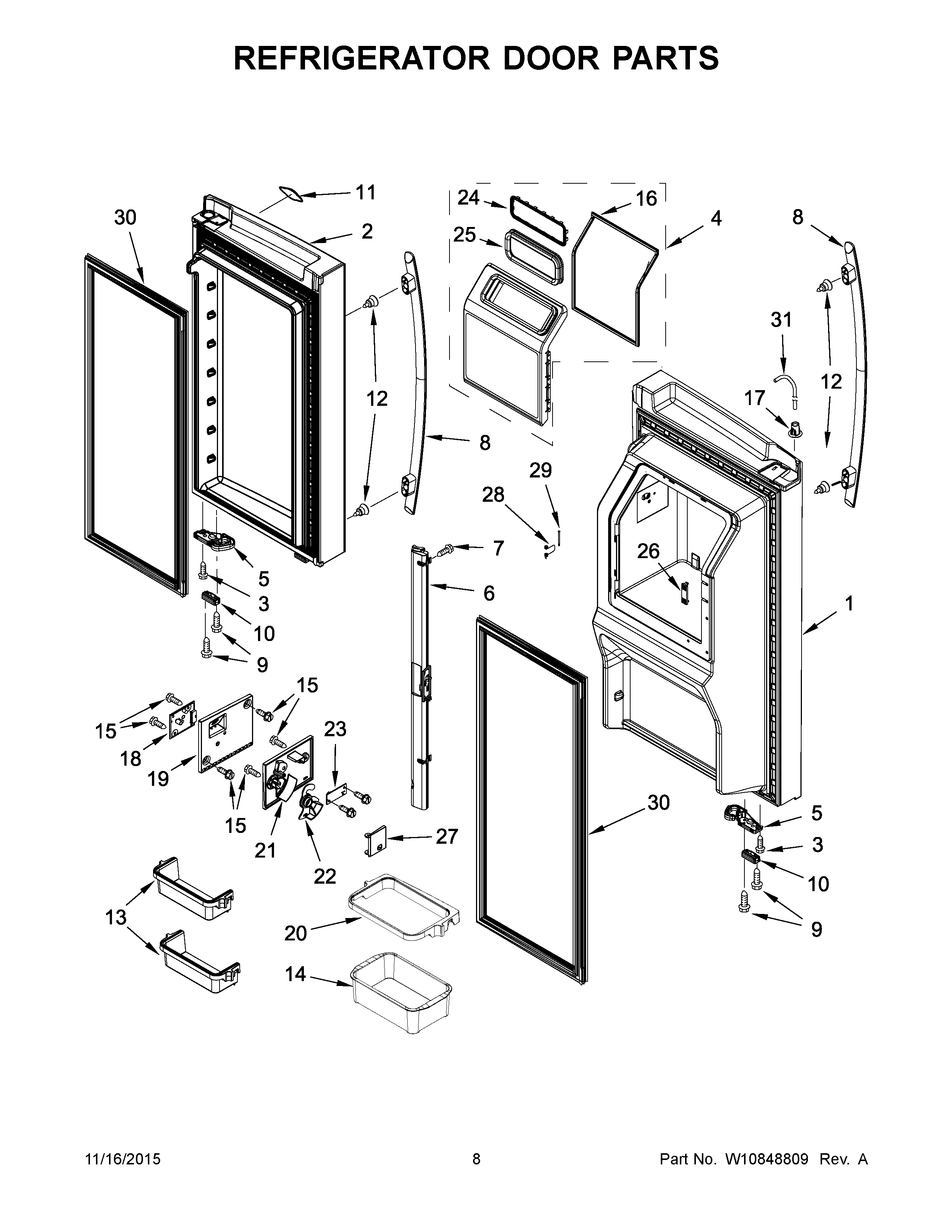

JFX2897DRM02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (INCLUDES ITEM 30) (STAINLESS)
2	DOOR, RIGHT (INCLUDES ITEM 30) (STAINLESS)
3	MAY W10464016
4	MAY W10549590
5A	MAY W10712953
5	MAY W10712952
6	MAY W10698204
7	MAY 12990204
8	MAY W10298179N
9	MAY 12990504
10	MAY W10407188
11	ASSEMBLY, BADGE (STAINLESS)
12	MAY W10460893
13	MAY W10640341
14	MAY W10248856
15	Screw (2)
16	MAY W10347085
17	CLIP, TUBE
18	MAY W10518658
19	MAY W10258510
20	MAY W10630303
21	MAY W10258502
22	MAY W10258540
23	MAY W10518659
24	RETAINER, ICE CHUTE
25	MAY W10347087
26	MAY W10646855
27	DOOR, EMITTER
28	SPRING, DOOR
29	PIN, DOOR
30	MAY W10503817
31	MAY W10499015
