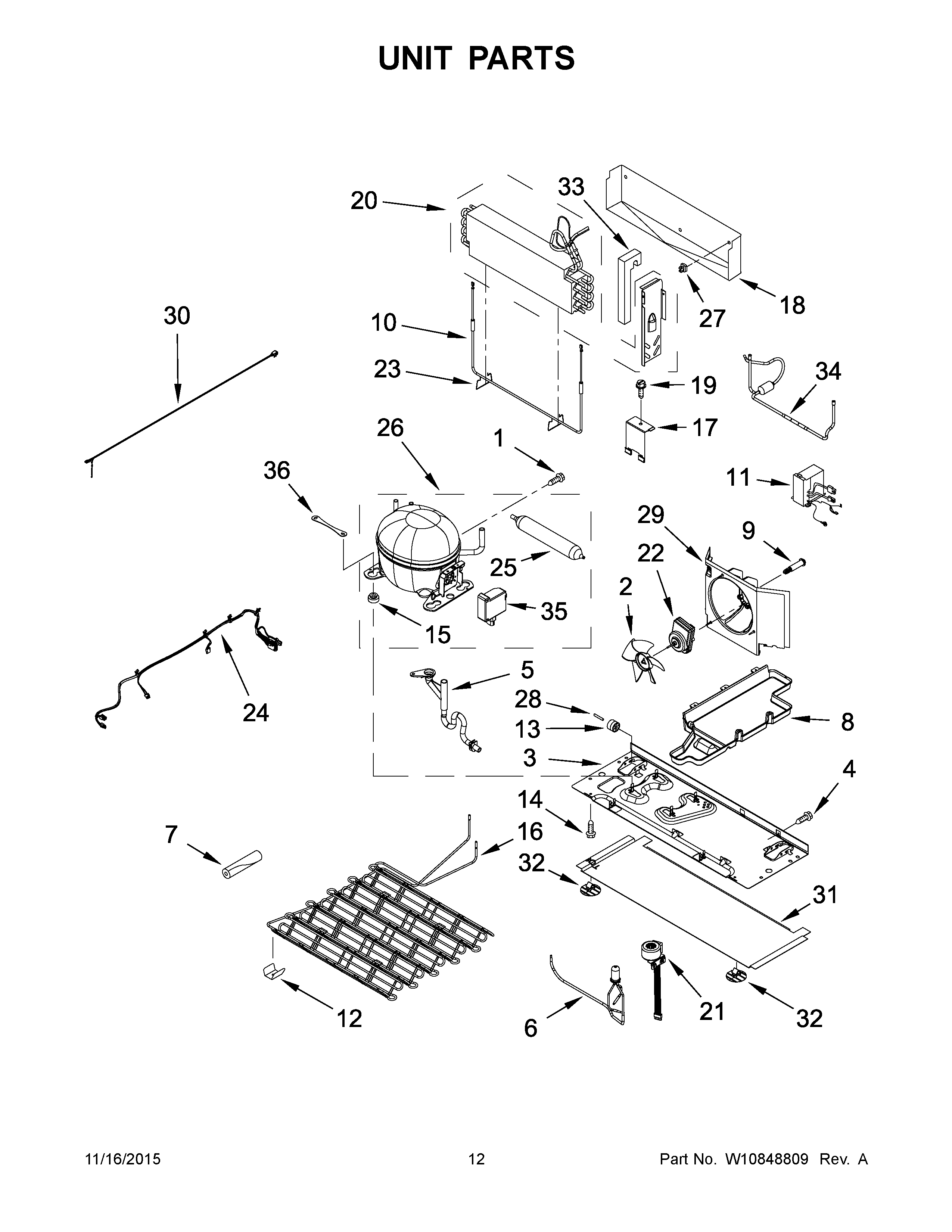

JFX2897DRM02 07 – UNIT PARTS

JFX2897DRM02 07 – UNIT PARTS

Written by

in

JFX2897DRM02 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW 8-32 X 1/2
2	MAY 2188935
3	MAY W10570074
4	SCREW (10)
5	MAY W10776916
6	MAY W10391081
7	MAY W10303521
8	MAY W10660727
9	MAY W10622701
10	MAY 12729128
11	ASSEMBLY, INVERTER BOX
12	CLIP, CONDENSER
13	Roller (2)
14	MAY 12992101
15	GROMMET
16	MAY W10559262
17	BRACKET, VALVE
18	MAY W10342573
19	MAY W10141645
20	ASSEMBLY, EVAPORATOR
21	COIL, 3 WAY VALVE
22	MAY W10527155
23	W11673433 Whirlpool Clip
24	MAY W10746598
25	DRIER
26	MAY W10183959
27	MAY W10142294
28	Axle, Roller (2)
29	MAY W10406719
30	MAY W10630315
31	MAY W10278140
32	CLIP, BOTTOM COVER
33	MAY W10491355
34	MAY W10626970
35	MAY 2215676
36	MAY W10236396
