JFX2897DRP01 03 – REFRIGERATOR LINER PARTS
Written by
in

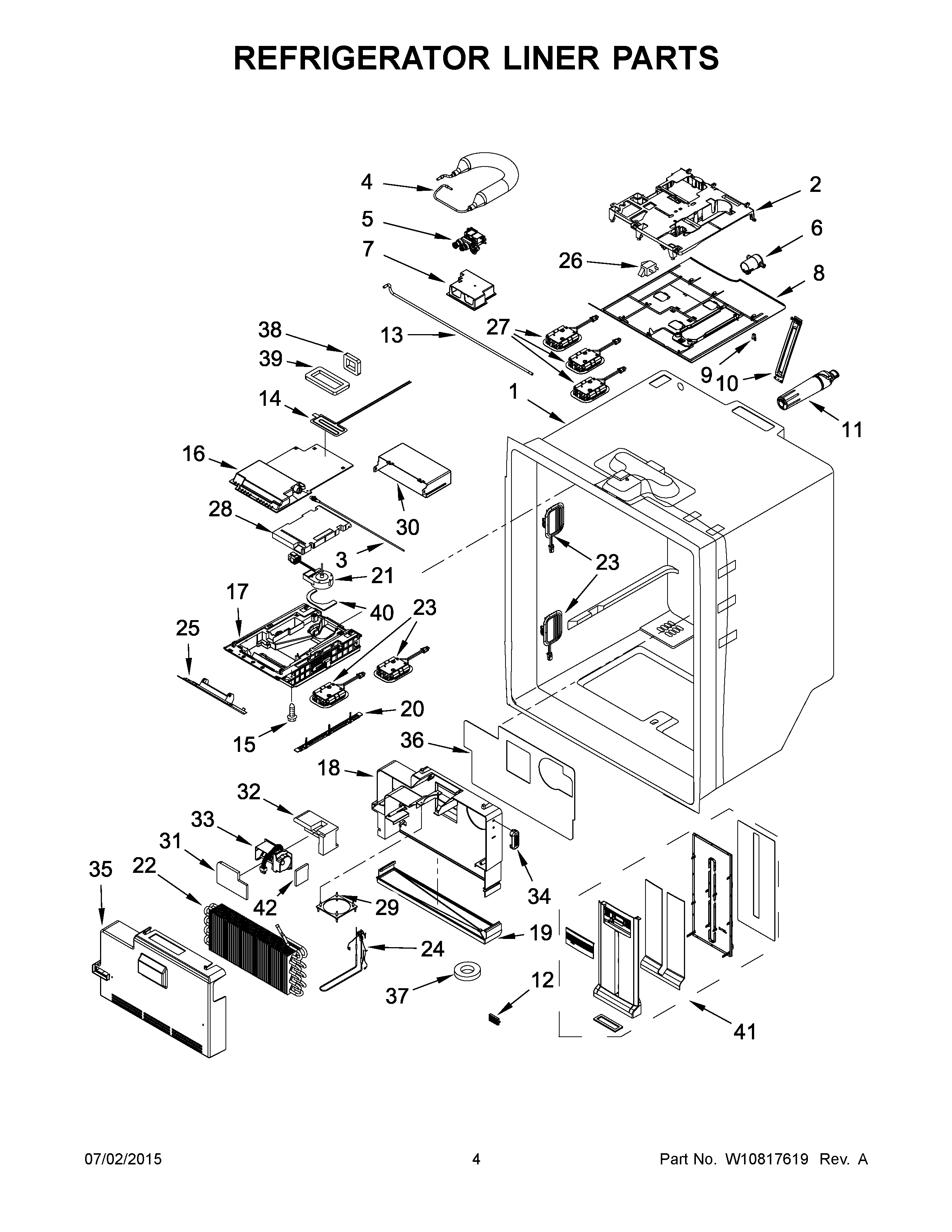

JFX2897DRP01 03 – REFRIGERATOR LINER PARTS
Products
Position
Product
NI
MAY W10570599
NI
LINER (NOT A SERVICEABLE PART)
2
MAY W10705147
3
MAY W10736144
4
MAY W10711460
5
MAY W10341329
6
MAY W10238156
7
MAY W10279854
8
MAY W10669663
9
LATCH, PUSH
10
MAY W10277949
11
FILTER, WATER
12
FILTER, AIR
13
MAY W10674102
14
MAY W10706850
15
SCREW
16
MAY W10598013
17
MAY W10739299
18
MAY W10503486
19
MAY W10525237
20
MAY W10505516
21
FAN, ICEBOX
22
MAY W10630535
23
MAY W10660728
24
MAY W10727641
25
ASSEMBLY, FASCIA
26
SWITCH, LIGHT (2)
27
MAY W10610289
28
MAY W10280983
29
MAY W10389152
30
MAY W10635022
31
MAY W10503491
32
MAY W10503492
33
MAY W10248595
34
MAY W10438957
35
MAY W10503500
36
MAY W10465948
37
MAY W10510863
38
MAY W10320706
39
MAY W10280988
40
MAY W10392172
41
MAY W10630762
42
MAY W10470981
←
