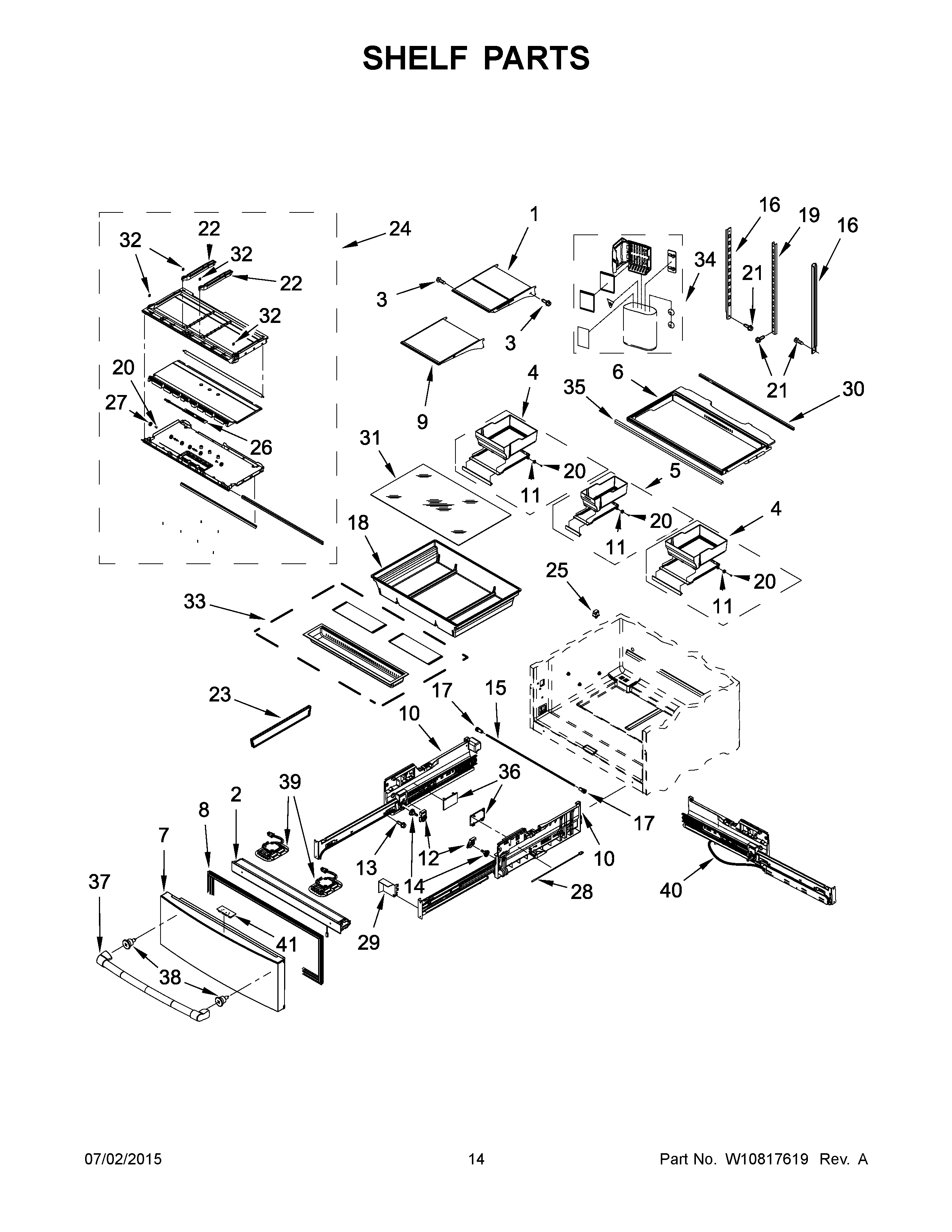

JFX2897DRP01 08 – SHELF PARTS

Products

Position	Product
1	MAY W10753038
2	MAY W10610301
3	MAY W10325002
4	MAY W10509272
5	MAY W10509275
6	MAY W10493545
7	DOOR, PANTRY (INCLUDES ITEM 8) (STAINLESS)
8	MAY W10518365
9	MAY W10753040
10A	MAY W10750817
10	MAY W10667416
12	COVER, GEAR (LEFT HAND)
12A	COVER, GEAR (RIGHT HAND)
13	MAY 12991702
14	GEAR, SPUR
15	SHAFT, RACK
16	MAY W10719660
17	COLLAR, GEAR
18	MAY W10530656
19	MAY W10719661
20	SCREW
21	MAY W10666373
22	MAY W10577906
23	DIVIDER, LARGE PANTRY
24	MAY W10548667
25	MAY W10656773
26	MAY W10537691
27	MAY W10530295
28	MAY W10549991
29	MAY W10518378
30	MAY W10493547
31	MAY W10493549
32	MAY 12702901
33	MAY W10780178
34	MAY W10593207
35	MAY W10530297
36	MAY W10518036
37	HANDLE, DOOR (PRO STYLE)
38	MAY W10460893
39	MAY W10660728
40	MAY W10512203
41	MAY W10736627
