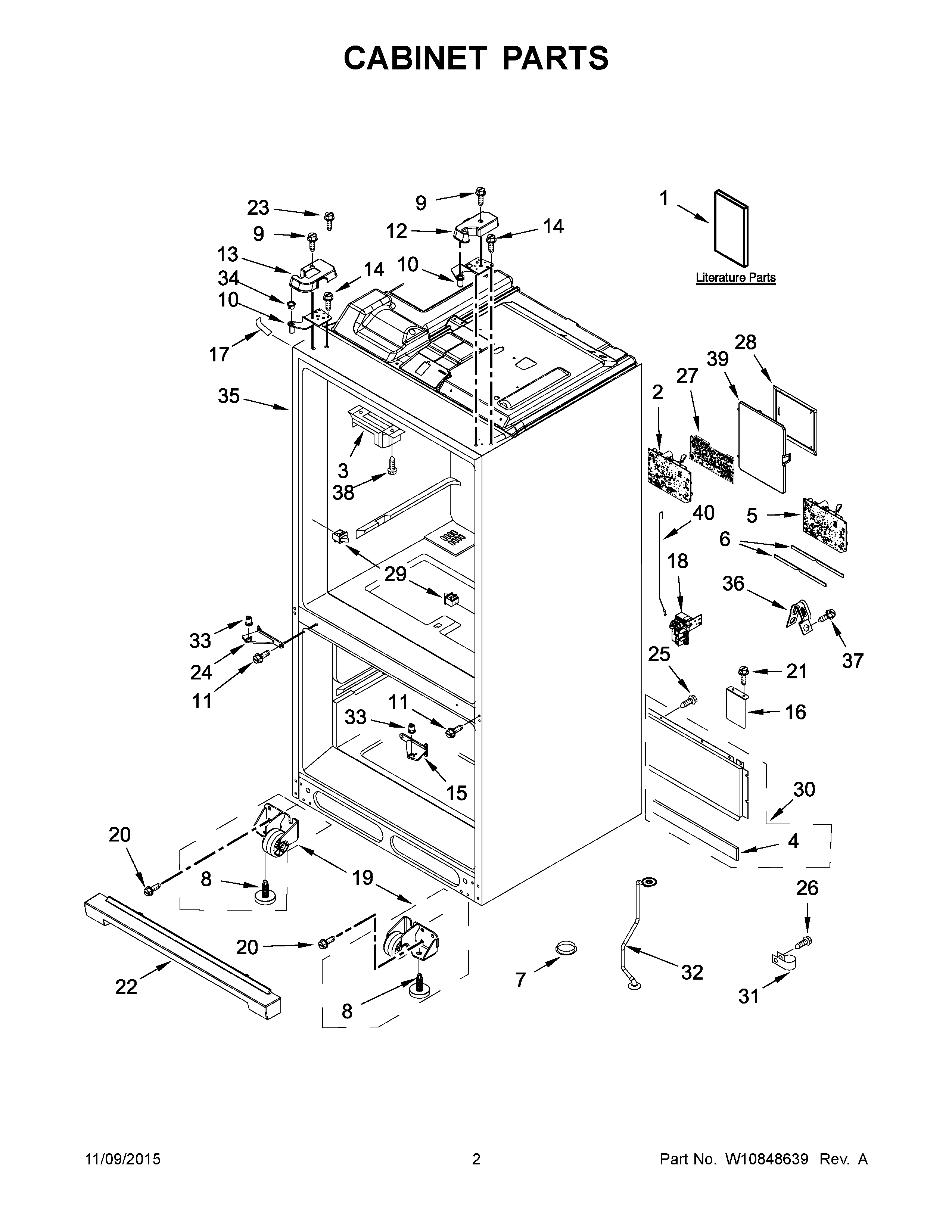

JFX2897DRP02 02 – CABINET PARTS

Products

Position	Product
1	MAY W10811273
1A	MAY W10811274
1B	TECH SHEET, USE AND CARE GUIDE
1C	TECH SHEET, ENERGY GUIDE
2	MAY W10665178
3	MAY W10344432
4	MAY W10505487
5	MAY W10811364
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (LEFT HAND)
10A	HINGE, TOP (RIGHT HAND)
11	SCREW
12	MAY W10407158
13	MAY W10471618
14	SCREW (BLACK)
15	HINGE, CENTER (RIGHT) (GREY)
16	MAY W10336736
17	COVER, CORNER (GREY)
18	VALVE, WATER
19A	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	Screw (8)
21	MAY 12990701
22	MAY W10637671
23	SCREW
24	HINGE, CENTER (LEFT) (GREY)
26	SCREW (10)
27	MAY W10790783
28	MAY W10754591
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
32	MAY W10503562
33	MAY W10505294
34	MAY W10212137
35	LINER (NOT A SERVICEABLE PART)
36	MAY 549193
37	MAY W10141645
38	Screw (4)
39	MAY W10277839
40	MAY W10678711
