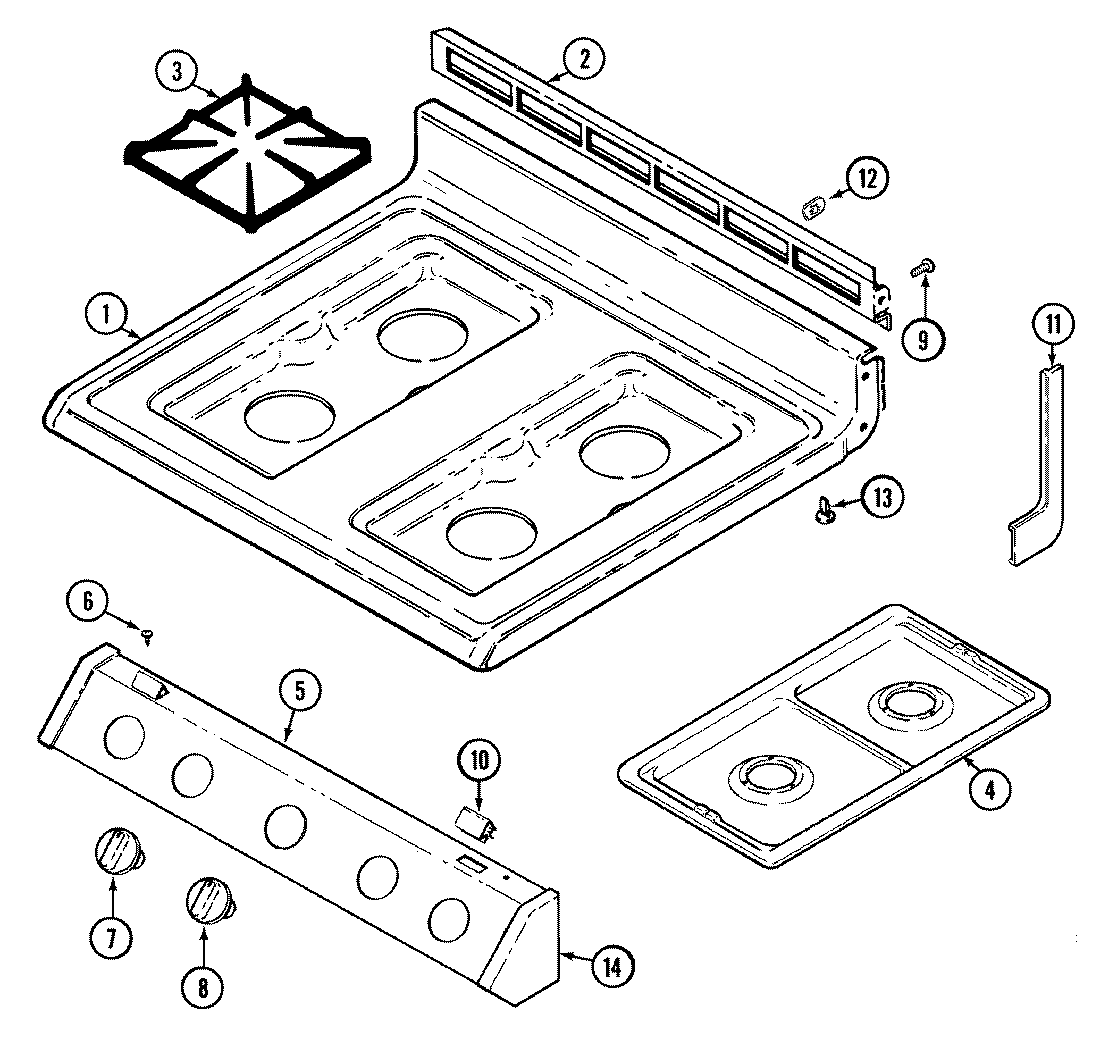

JG3127XTA 06 – TOP ASSEMBLY

JG3127XTA 06 – TOP ASSEMBLY

Written by

in

JG3127XTA 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W085-84
2MAY 3608F042-09
3MAY 2003W027-09
4MAY 5401A433-60
4MAY 5401A452-60
5MAY 2616F102-09
6MAY 7118P015-60
7MAY 7731P071-60
8MAY 7733P027-60
9SCREW (10ABX1/4P TR ZN)
10MAY 7112P087-60
11MAY 8270P095-60
11MAY 7746P031-60
11MAY 7746P030-60
12MAY 7103P129-60
13MAY 8016P013-60
14MAY 7713P018-60
15MAY 5195D078-60
