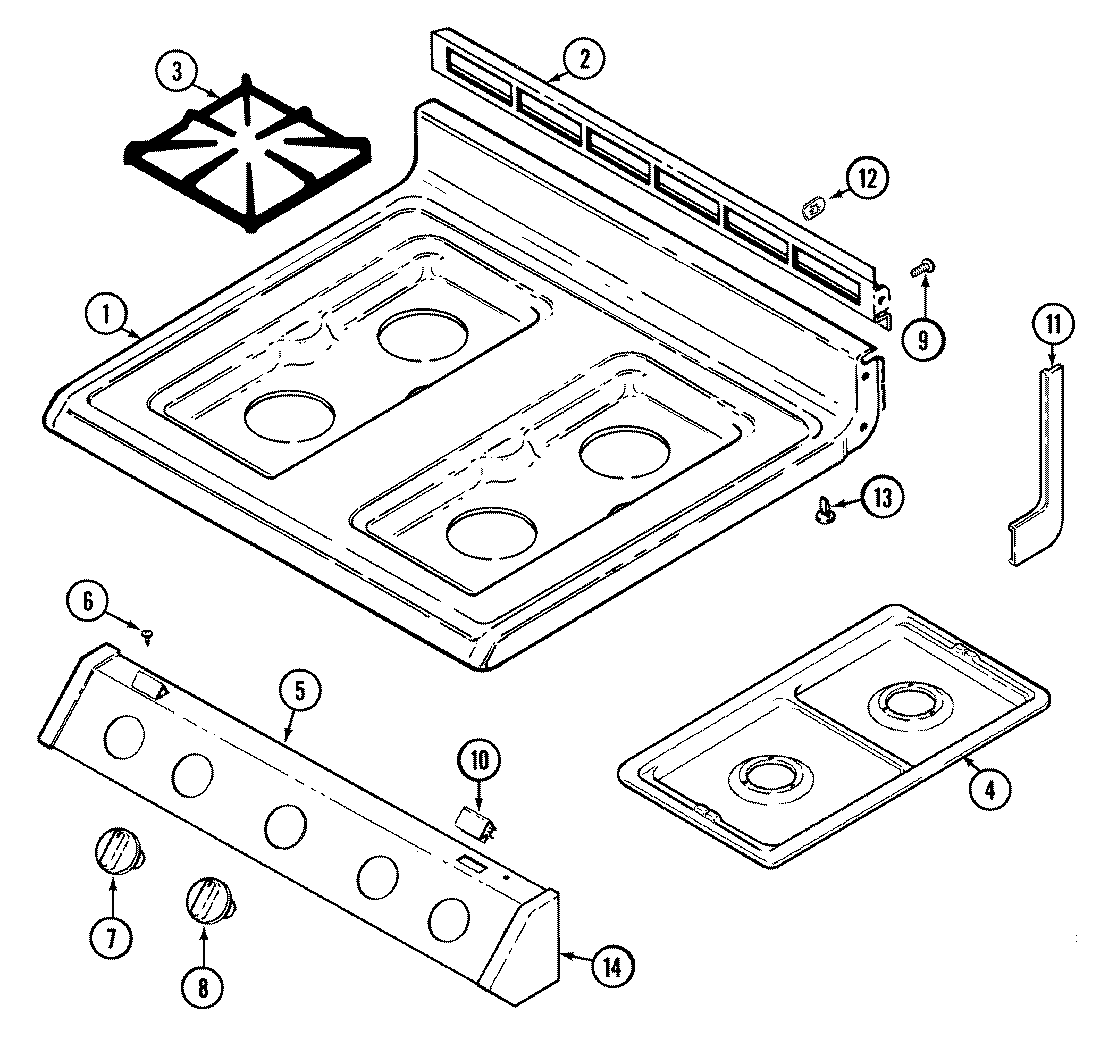

JG3127XTW 06 – TOP ASSEMBLY
Written by
in
JG3127XTW 06 – TOP ASSEMBLY
Products
Position
Product
1
MAY 2001W085-81
2
MAY 3608F042-09
3
MAY 2003W027-09
4
MAY 5401A433-60
4
MAY 5401A452-60
5
MAY 2616F102-09
6
MAY 7118P015-60
7
MAY 7731P071-60
8
MAY 7733P027-60
9
SCREW (10ABX1/4P TR ZN)
10
MAY 7112P087-60
11
MAY 8270P095-60
11
MAY 7746P031-60
11
MAY 7746P030-60
12
MAY 7103P129-60
13
MAY 8016P013-60
14
MAY 7713P018-60
15
MAY 5195D078-60
←
