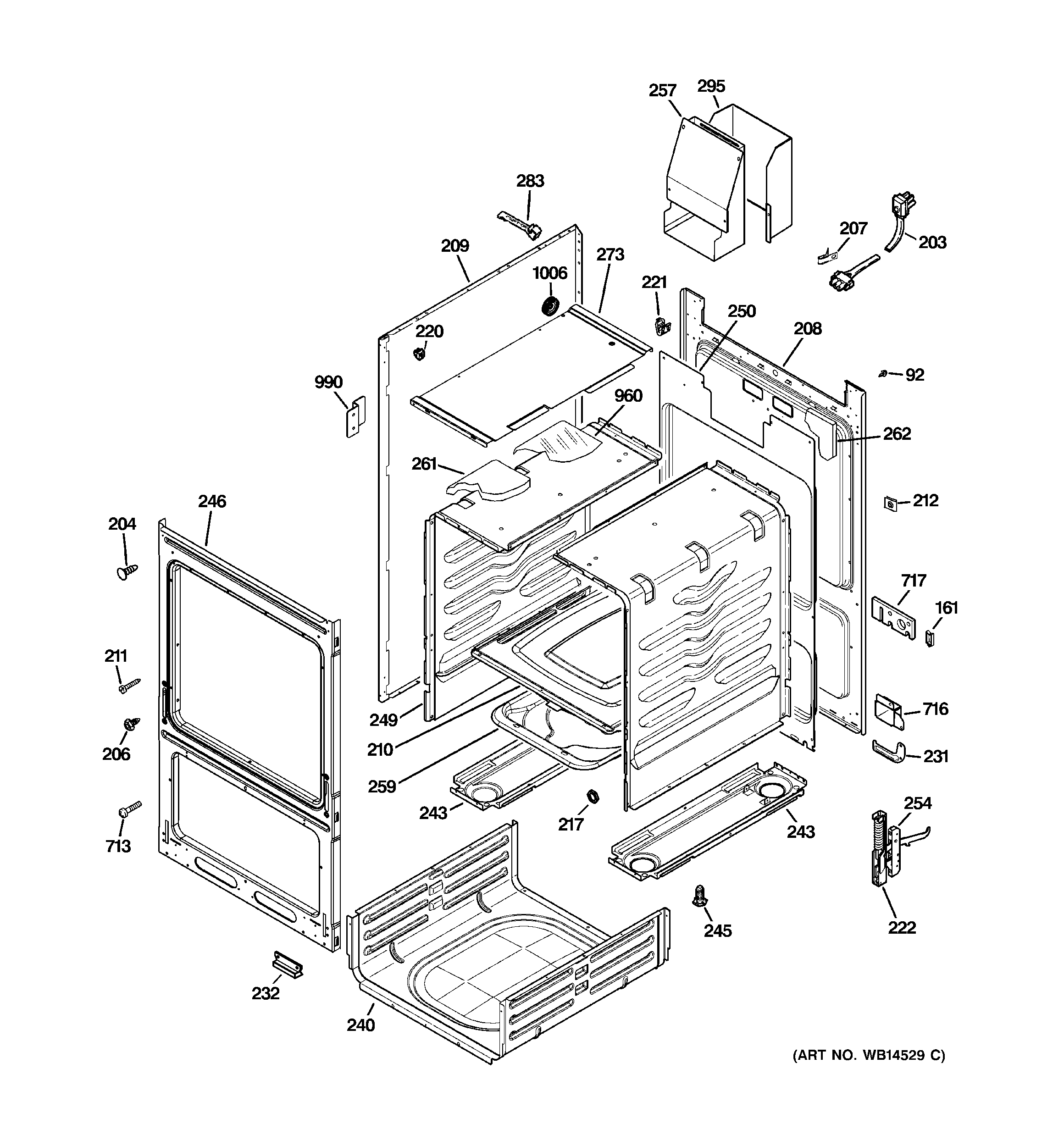

JGAS02SEN1SS BODY PARTS

JGAS02SEN1SS BODY PARTS

Written by

in

JGAS02SEN1SS BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
161GEN WB02X7066
203WB18K10036 GE Oven Line Cord
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
204WB01K10083 GE 8-32 Screw
204WR01X10065 GE Screw
204WB01K10092 GE Screw
206WB01K10052 GE Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10156
209WB63K10158 GE Side Panel
210WB35X37969 GE Bottom Oven Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212GEN WB01X5743
212WB01K10093 GE Oven Speednut
217GEN WB01K0006
220WB02K10188 GE Oven Grommet
221WB02K10073 GE Oven Clip Capillary
222WB10K10011 GE Oven Door Hinge Assembly
231WB2K20 GE Oven Bracket Assembly
231WB02K10124 GE Oven Anti-Tip Arm
232WB02K10189 GE Anti-Tip Bracket
240WB63K10097 GE Broiler Body
243BASE SUPPORT
245WB02K10126 GE Oven Level Screw
246WB63K10157 GE Frame Front 24
249WB63K10155 GE Oven Side
250GEN WB63K10154
254WB10K10003 GE Oven Hinge Receptacle
257GEN WB38K10015
259WB63K10086 GE Base Support
261GEN WB35K10117
262GEN WB35K10119
273GEN WB53K10022
283WB02X21679 GE Oven Wire Clip
295GEN WB35K10078
713WB01K10057 GE Oven Screw
716WB63K10093 GE Safety Valve Cover
717WB35K10079 GE Oven Safety Valve Insulation
960GEN WB35K10076
990GEN WB02K10183
1006GEN WB02K10190
