JGAS02SEN1SS CONTROL PANEL & COOKTOP

JGAS02SEN1SS CONTROL PANEL & COOKTOP

Written by

in

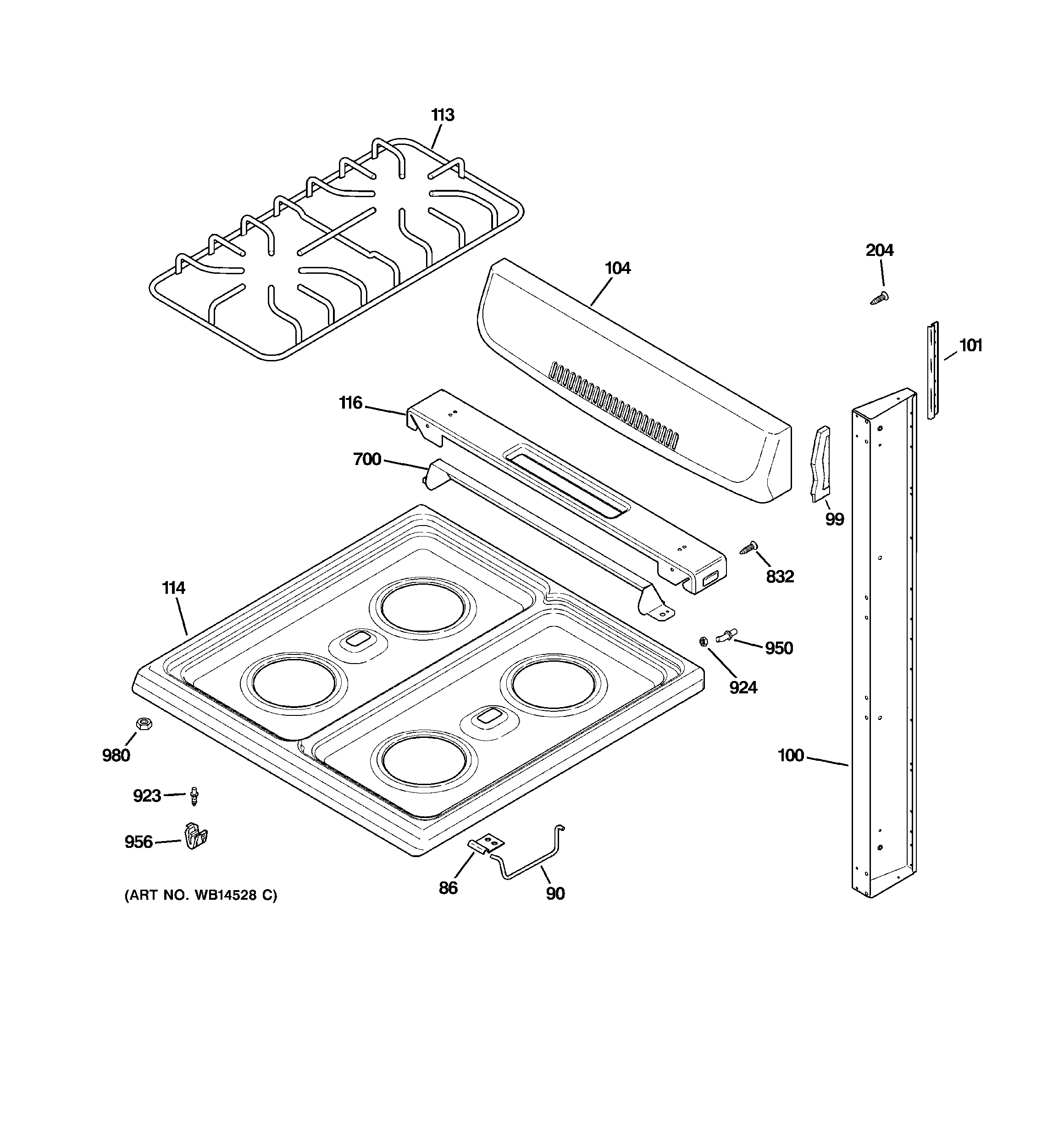

JGAS02SEN1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
86GEN WB02K10089
90WB02K10088 GE Main Top Support Rod
99WB07K10292 GE Backguard End Cap
99WB07K10320 GE Range Backguard Endcap Black
100SIDE PANEL COMPLEMENT
100WB63K10074 GE Side Panel Complement
101GEN WB37K10017
104WB36K10790 GE Trim and Cover Assembly
113WB31K10222 GE Oven Cast Grate
114WB36K10789 GE Range Top
116GEN WB36K10788
204WB1K5062 GE Oven Screw
204WB01K10092 GE Screw
204WB01K10083 GE 8-32 Screw
204WR01X10065 GE Screw
204WB1K84 GE Oven Screw and
700GEN WB35K10118
832WB01K10043 GE Oven Screw
923GEN WB02K10128
924WB01K10048 GE Hex Lock Nut
950WB02K10129 GE Cooktop Guide
956WB02K10091 GE Range Door Strike Catch
980WB01K10041 GE Oven Hex Lock Nut
