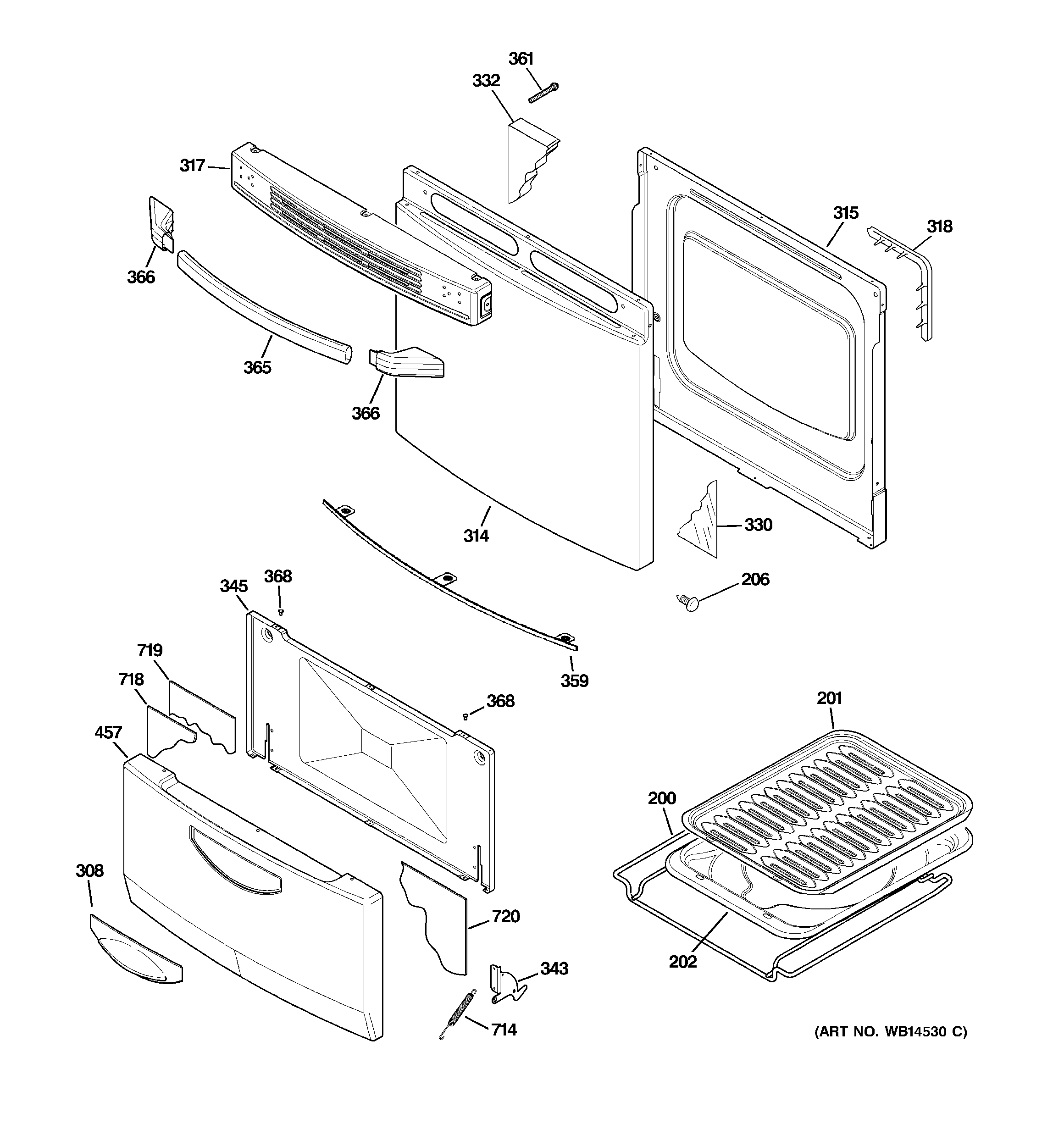

JGAS02SEN1SS DOOR & DRAWER PARTS

Products

PositionProduct
200GEN WB48K10013
200WB48K10012 GE Oven Rack
201WB48K10016 GE Oven Broil Pan Grid
202WB48K10015 GE Oven Broil Pan
206WB01K10052 GE Screw
308WB15K10067 GE Pocket Handle
314WB57K10133 GE Oven Cover and Panel Assembly
315WB55K10056 GE Door Liner
317GEN WB07K10288
318WB04K10020 GE Oven Door Gasket Assembly
330WB35K10071 GE Oven Door Foil
332WB35K10121 GE Oven Door Insulation
343WB10K10006 GE Oven Broiler Hinge Assembly
343WB10K10005 GE Oven Broiler Hinge Assembly
345WB55K10091 GE Drawer Liner
359WB56K10054 GE Lower Protector
361GEN WB01K0069
361WB01K10061 GE Oven Screw
365WB15K10085 GE Oven Extruded Handle
366WB07K10289 GE Oven Handle Base
368WB2K15 GE Oven Grate Bumper
457WB56K10051 GE Oven Kick Panel Cover Assembly
714WB09K10003 GE Oven Broil Door Spring
714WB1K39 GE Washer Spring
718GEN WB35K10080
719GEN WB35K10081
720GEN WB35K10083
