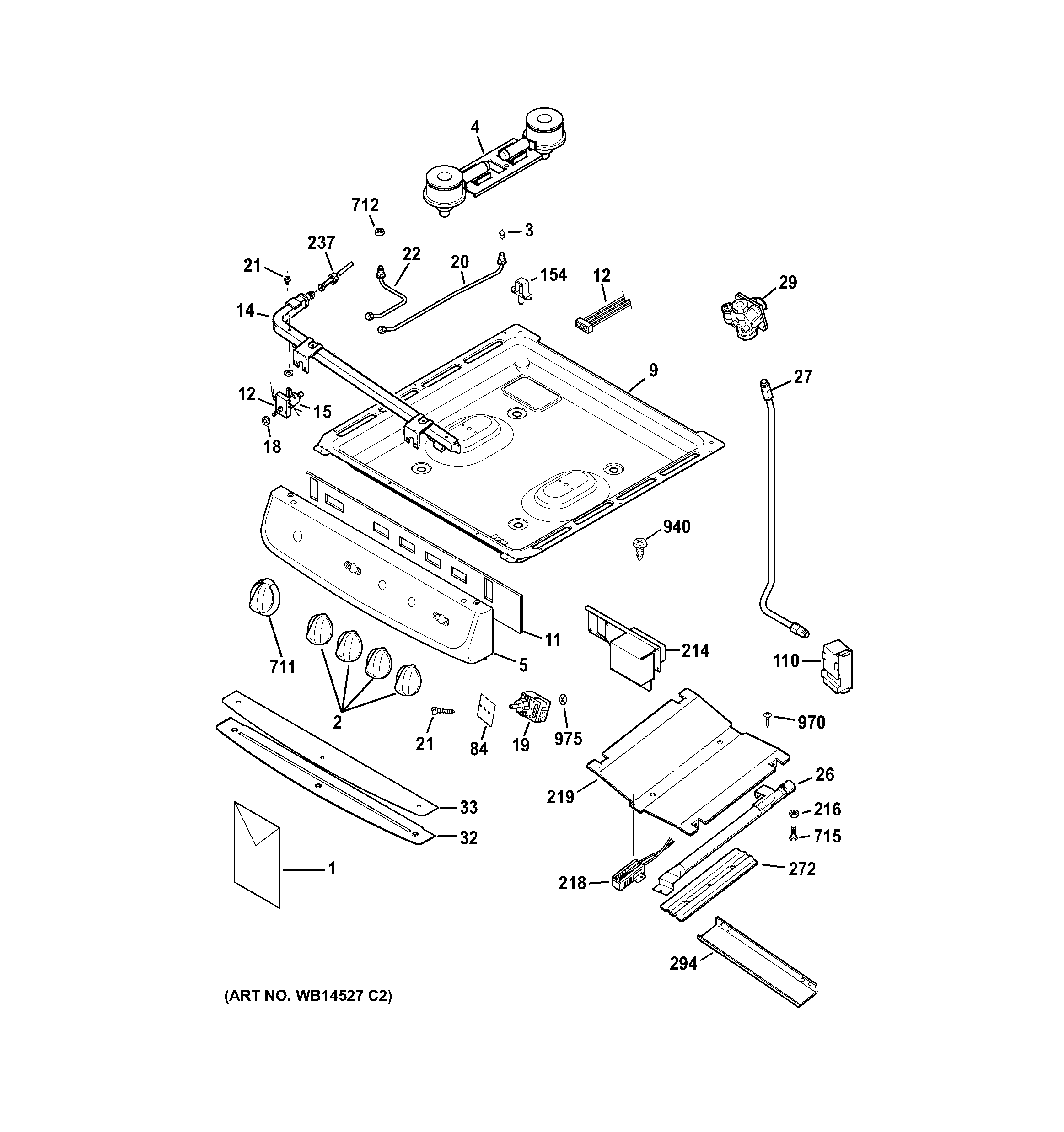

JGAS02SEN4SS GAS & BURNER PARTS

Products

Position	Product
1	GEN 49-85104
1	WB28K10491 GE Oven Gas Conversion Kit
1	WB02T10111 GE Cleaner Stainless Steel
2	WB03K10248 GE Oven Mini Valve Knob
3	WB28K10319 GE Oven Orifice Spud
3	WB28K10376 GE Oven Orifice
4	WB16K10058 GE Oven Double Burner G05
5	WB36K10787 GE Oven Panel and Cover Assembly
9	WB64K10014 GE Burner Box
11	GEN WB35K10120
12	WB18X31211 GE Oven Burner Harness
14	WB28K10312 GE Manifold Pipe Assembly
15	140 BURNER VALVE
18	WB2K24 GE Oven Valve Cover
19	WB20K8 GE Oven Thermostat Temperature Control
20	WB28K10314 GE Oven Left Rear Tube Assembly
20	WB28K10315 GE Oven Right Rear Tube Assembly
21	WB1K8 GE Oven Thermostat Screw
21	WB1K83 GE Oven Screw
22	WB28K10316 GE Oven Right Front Tube Assembly
22	WB28K10313 GE Oven Left Front Tube Assembly
27	WB28K10863 GE Oven Safety Valve Tube
29	WB19K10090 GE Oven Pressure Regulator
32	GEN WB35K10059
33	GEN WB35K10069
84	COVER THERMOSTAT
110	WB20K5037 GE Oven Spark Module
154	WB18X26989 GE Oven Top Spark Electrode
214	WB19K10029 GE Oven Single Safety Valve
216	GEN WB01K0004
218	WB13K10024 GE Oven Igniter Glowbar
218	WB16K10057 GE Oven Burner Assembly
219	OVEN DEFLECTOR
237	WB28K10864 GE Supply Tube
294	GEN WB34K10085
711	GEN WB03K10249
712	GEN WB01K10056
715	WB1X1293 GE Oven Screw
940	WB01K10062 GE Screw 8-18 x 3/8
970	WB01K10054 GE Screw 8-18 x 3/8"
975	WB01K10055 GE Washer
