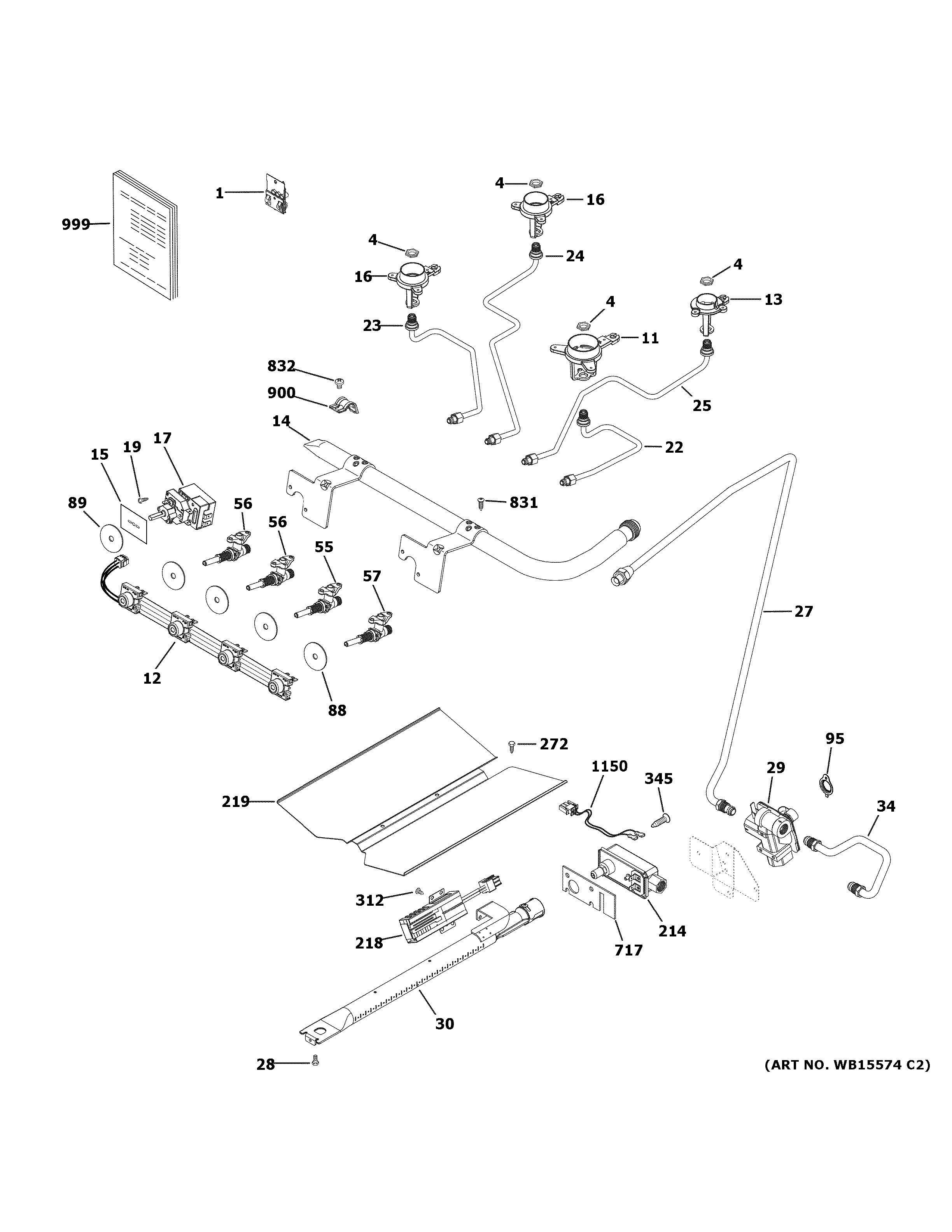

JGAS640RM1SS GAS & BURNER PARTS

Products

Position	Product
1	WB28X30958 GE LP Conversion Kit Assembly
4	WB01K10037 GE Oven Economic Nut
11	WB02X24725 GE Oven Inlet XLV2
12	WB18X30974 GE Harness Switches
13	WB02X24728 GE Range Small Injector
14	MANIFOLD PIPE ASM
15	COVER THERMOSTAT
16	WB02X24727 GE Oven Right Front Burner Jet with Electrode
17	WB24X30962 GE Electric Thermostat
19	WB1K8 GE Oven Thermostat Screw
22	WB28X30967 GE Orifice Holder Right Front
23	WB28X30969 GE Left Orifice Holder
24	WB28X30966 GE Orifice Holder Left
25	WB28X30968 GE Rear Orifice Holder
27	WB28X30961 GE Supply Manifold Tube
28	WB1X1293 GE Oven Screw
29	WB21X30965 GE Oven Pressure Regulator
30	WB16X30977 GE Oven Burner Assembly
34	WB28X30960 GE Safety Valve Tube
55	WB21X20261 GE Oven Burner Valve 270
56	VALVE BURNER 270
57	WB21X20262 GE Oven Burner Valve 270
88	WB35X21708 GE Valve Seal
89	SEAL VALVE
95	WB02K10337 GE Cover Cap
214	WB21X31124 GE Safety Valve
218	WB13X30972 GE Oven Igniter Glowbar
219	WB34X30988 GE Oven Deflector
272	WZ4X345D GE Screw Package 12 C92
312	WB01K10091 GE Oven Screw
345	WB1K5062 GE Oven Screw
717	WB35K10079 GE Oven Safety Valve Insulation
831	WB01K10083 GE 8-32 Screw
832	WB01K10097 GE Range Thermostat Screw
900	WB02K10297 GE Oven Valve Bracket
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
999	PM PROPANE INSTALLATION
999	PM INSTALL INSTRUCTIONS
999	PM QUICK GUIDE
1150	HARNESS SAFETY VALVE
