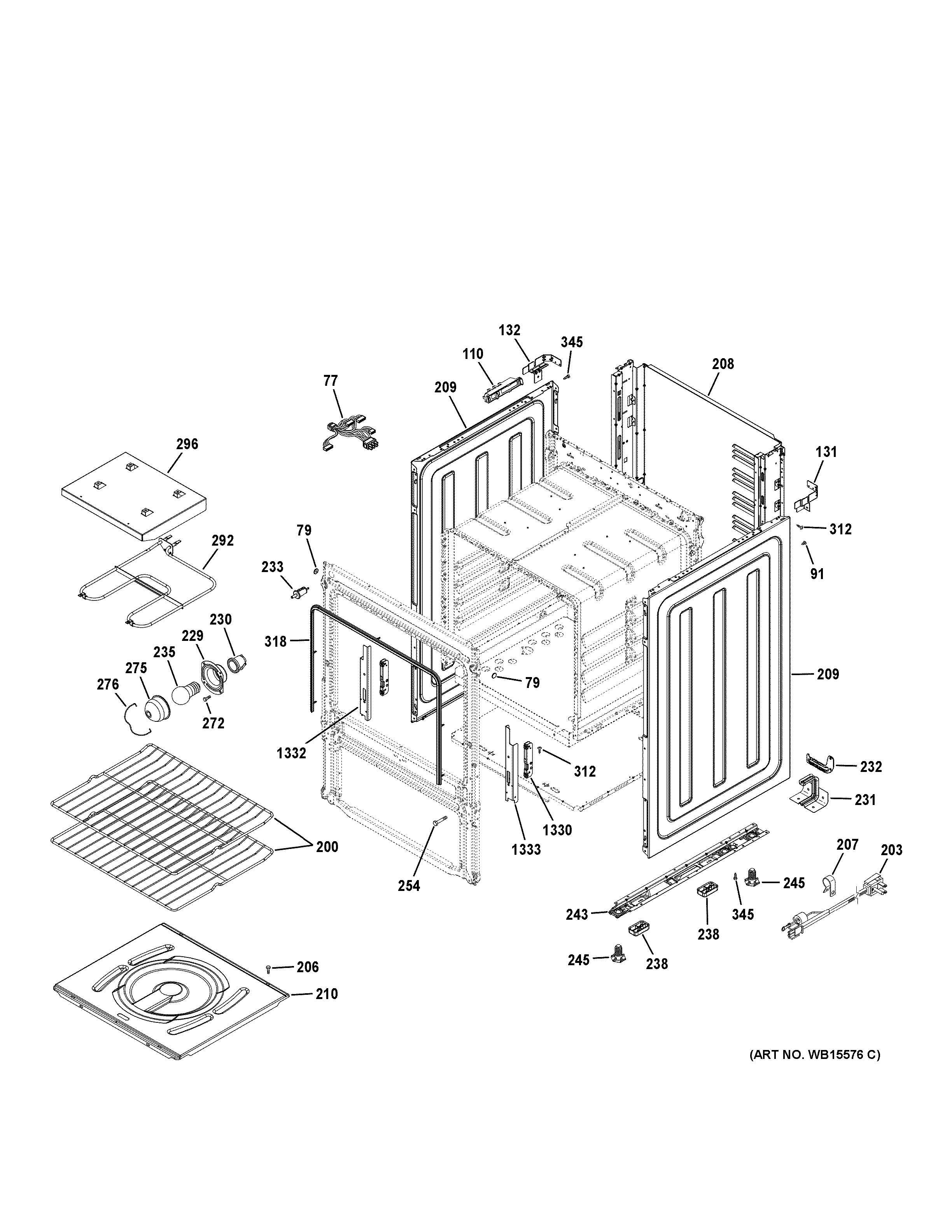

JGAS640RM2SS BODY PARTS

JGAS640RM2SS BODY PARTS

Written by

in

JGAS640RM2SS BODY PARTS

Products

PositionProduct
77HARNESS MAIN
79SPACER SIDE
91WB1X1261 GE Oven Screw
110WB13X24323 GE Oven Ignition Module
131BRACKET COOKTOP
132BRACKET COOKTOP
200WB48X30918 GE Oven Rack
203WB18X30955 GE Oven Line Cord
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
207WB2K36 GE Oven Clamp Cable
208COVER BACK
209WB56X30952 GE Side Panel Assembly
210WB63X30979 GE Oven Bottom
229WB08K10010 GE Receptacle Housing
230WB08T10026 GE Range Push-In Receptacle
231WB02X30959 GE Refrigerator Anti-Tip Bracket Assembly
232WB02K10124 GE Oven Anti-Tip Arm
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
238SPACER BASE
243WB37X30907 GE Base Support
245WB02K10182 GE Oven Leveling Leg
254WB01X30980 GE Screw
272WZ4X345D GE Screw Package 12 C92
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
292HEATER BROIL
296WB34X30985 GE Broil Deflector
312WB01K10091 GE Oven Screw
318WB32X31916 GE Door Gasket
345WB1K5062 GE Oven Screw
1330WB10X31976 GE Receiver Hinge
1332WB10X30947 GE Left Hand Gusset Hinge
1333WB10X30946 GE Right Hand Hinge Gusset
