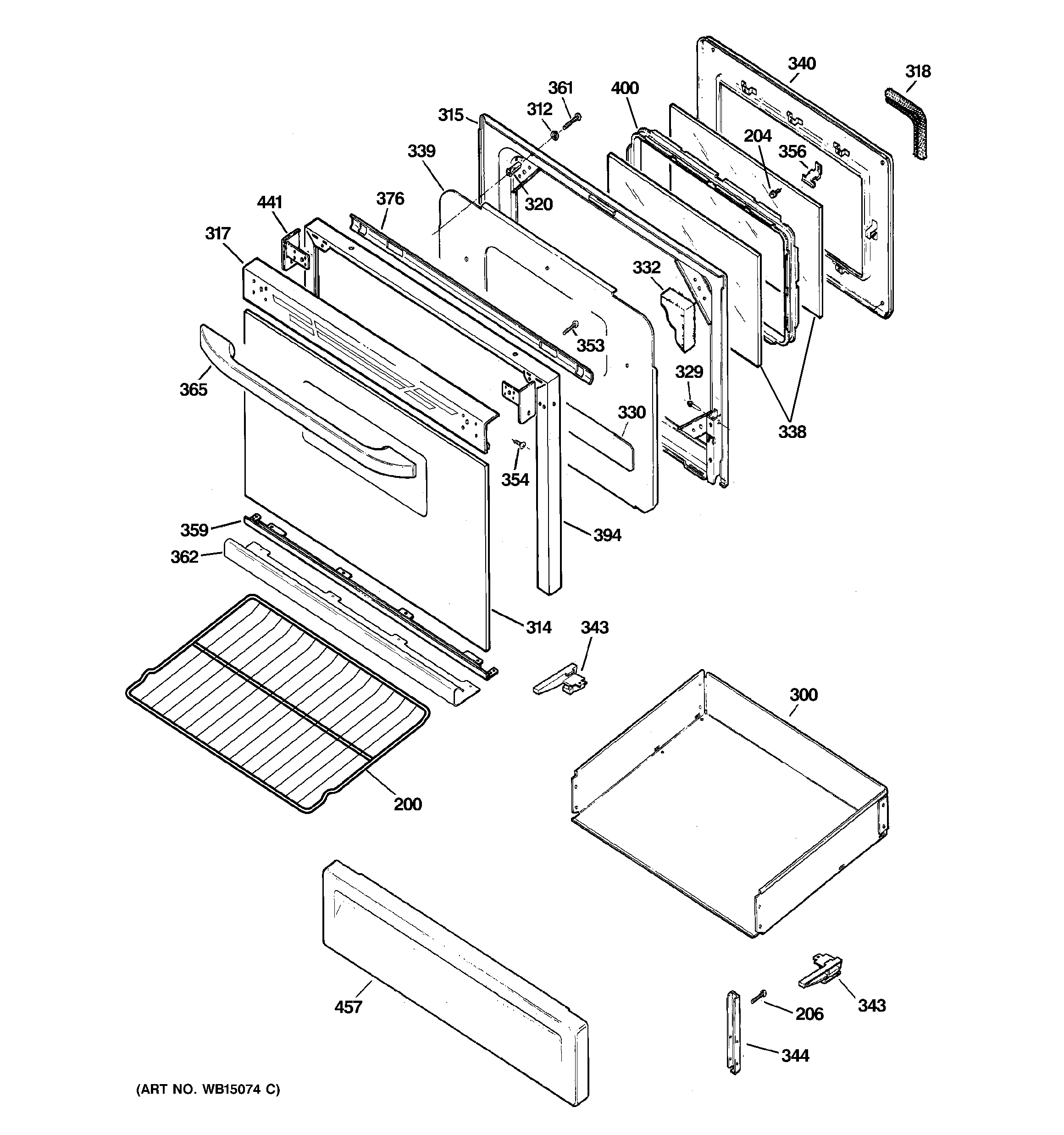

JGB250DET1BB DOOR & DRAWER PARTS

JGB250DET1BB DOOR & DRAWER PARTS

Written by

in

JGB250DET1BB DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
200OVEN RACK
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
300GEN WB58K10011
312WB1X119D GE Oven Range Washer
314WB57K10109 GE Oven Glass Door
314WB57K10110 GE Oven Glass Door
315GEN WB55K10042
317GEN WB07K0400
317WB7K403 GE Oven Top Door Trim
318WB35X29668 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
362GEN WB07K10342
365WB15K10102 GE Oven Handle
365WB15K10096 GE White Oven Handle
376WB35K23 GE Heater Deflector
394GEN WB07K10103
394GEN WB07K10104
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7187
441GEN WB07X7182
441GEN WB07X7181
441WB7X7188 GE Oven Left Endcap
457WB36K10033 GE Oven Drawer Panel (White)
457WB55K10001 GE Oven Drawer Panel (Black)
