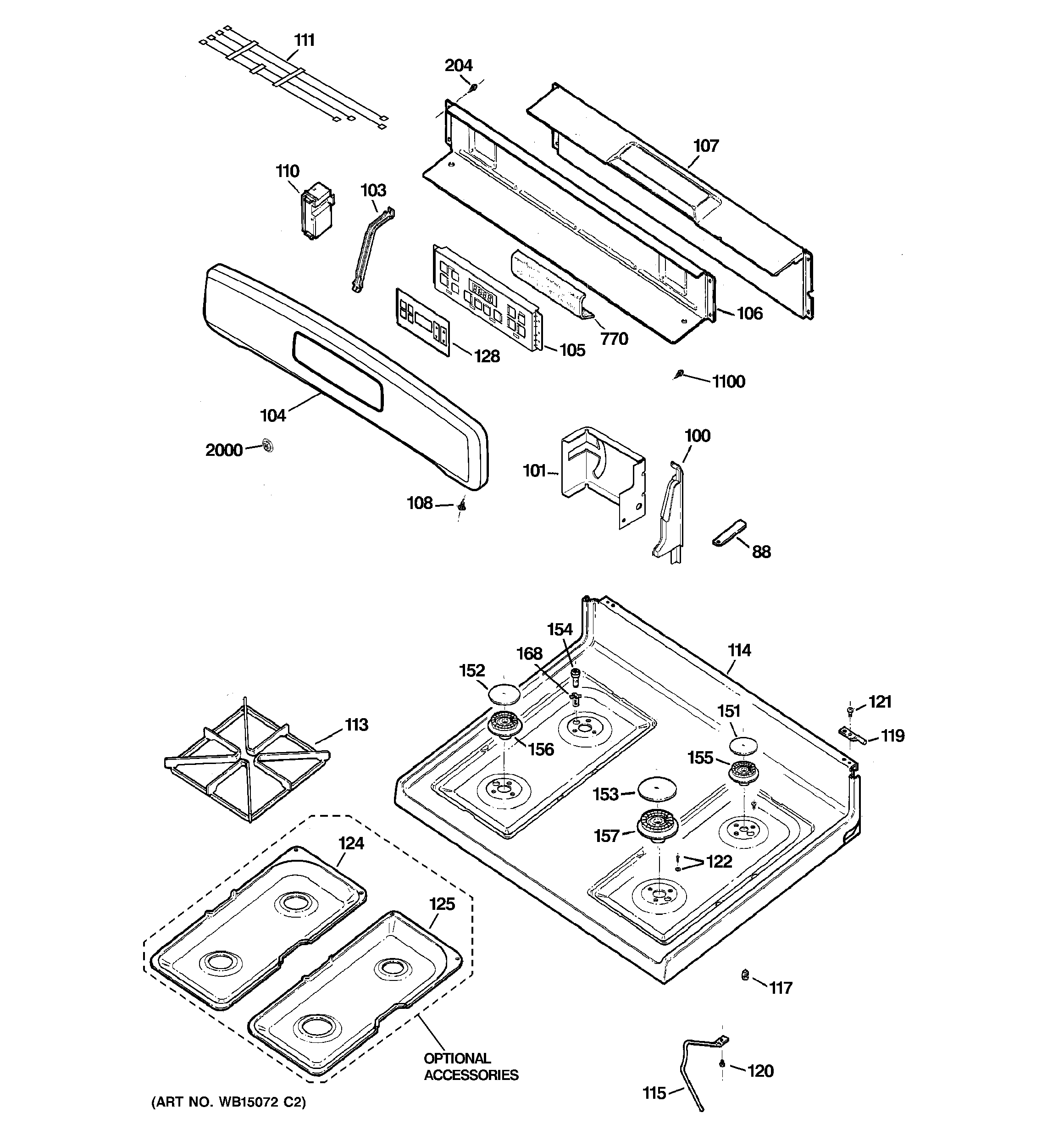

JGB250DET2WW CONTROL PANEL & COOKTOP

JGB250DET2WW CONTROL PANEL & COOKTOP

Written by

in

JGB250DET2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10265
100GEN WB07K10266
100GEN WB07K10261
100GEN WB07K10260
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10155
104GEN WB36K10732
104GEN WB36K10664
105WB27K10354 GE Oven Gas Control
106GEN WB34K10093
107WB34K10129 GE Lower Back Cover
108GEN WB01X5874
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
110WB13K10054 GE Oven Spark Module Service Kit
111GEN WB18K10061
113WB31K10260 GE Oven Hairpin Grate Assembly
113GEN WB31K10261
114GEN WB62K10146
114GEN WB62K10145
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121GEN WB01K0078
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
124WB34K10014 GE Oven Left Pan Unit
124WB34K10010 GE Oven Double Burner Drip Pan Black
125WB34K10013 GE Right Oven Pan Unit
125WB34K10009 GE Oven Double Burner Drip Pan
128WB27K10412 GE Oven Overlay T09-A
128WB27K10413 GE Oven Overlay T09-A
151WB29K10009 GE Oven Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10001 GE Oven Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
153WB29K10006 GE Oven Burner Cap
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
2000WB02T10359 GE Oven Badge
