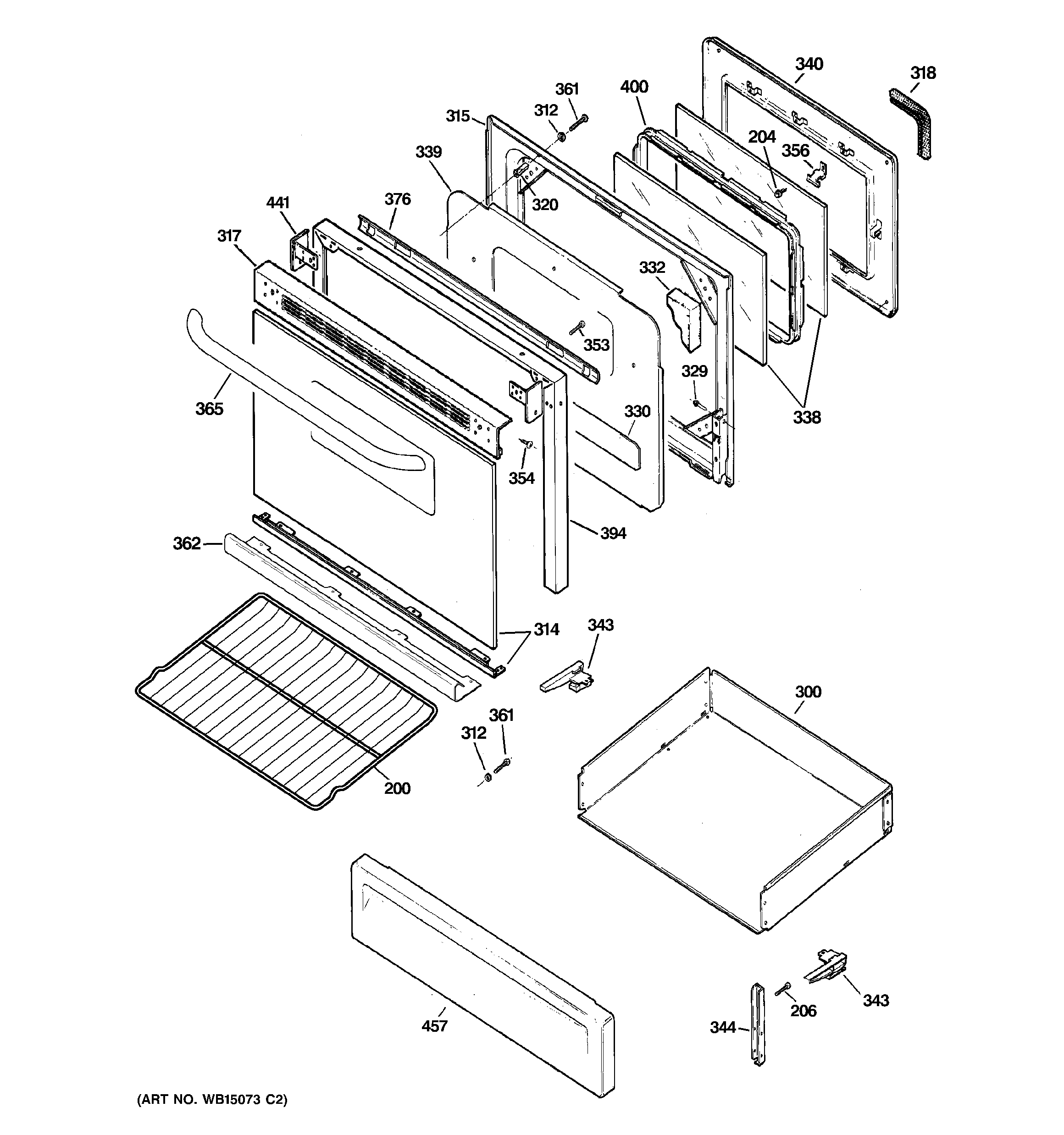

JGB250GET3SA DOOR & DRAWER PARTS

JGB250GET3SA DOOR & DRAWER PARTS

Written by

in

JGB250GET3SA DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
206WB01K10091 GE Oven Screw
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314GEN WB57K10182
315GEN WB55K10042
317WB7K403 GE Oven Top Door Trim
318GEN WB04K10029
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
353WB01K10070 GE Oven Screw
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361WB01K10074 GE Oven Screw 10-32 TT PNT
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
362GEN WB07K10342
365WB15K10102 GE Oven Handle
376WB35K23 GE Heater Deflector
394GEN WB07K0265
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7182
441GEN WB07X7181
457GEN WB55K10073
