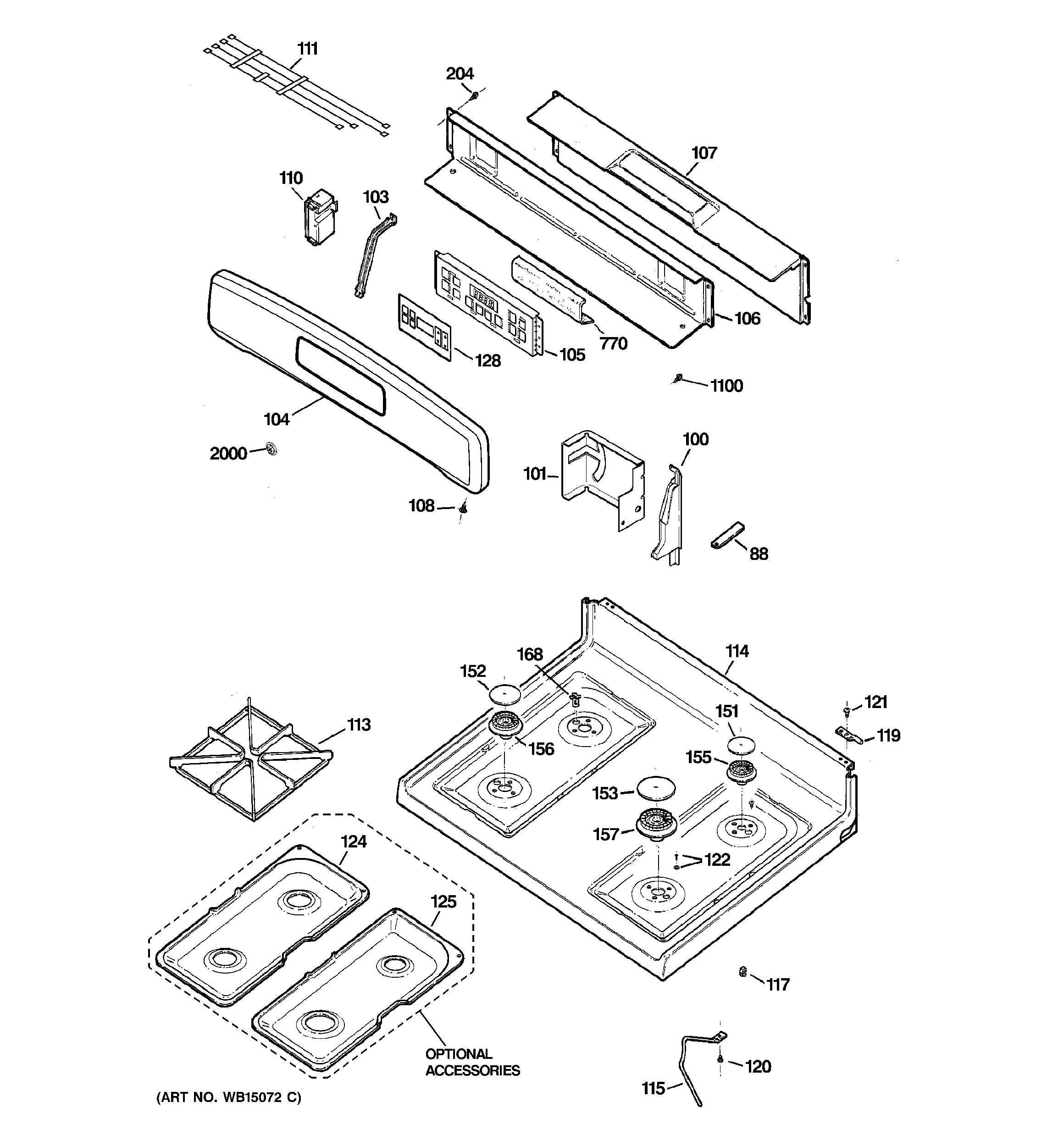

JGB250SET1SS CONTROL PANEL & COOKTOP

JGB250SET1SS CONTROL PANEL & COOKTOP

Written by

in

JGB250SET1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10260
100GEN WB07K10261
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10949
105WB27K10354 GE Oven Gas Control
106GEN WB34K10093
107WB34K10129 GE Lower Back Cover
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
113GEN WB31K10254
113WB31K10260 GE Oven Hairpin Grate Assembly
114GEN WB62K10145
114COOKTOP BK
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121GEN WB01K0078
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
124WB34K10010 GE Oven Double Burner Drip Pan Black
125WB34K10009 GE Oven Double Burner Drip Pan
128WB27K10412 GE Oven Overlay T09-A
151WB29K10009 GE Oven Burner Cap
152WB29K10001 GE Oven Burner Cap
153WB29K10006 GE Oven Burner Cap
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
2000WB02T10359 GE Oven Badge
