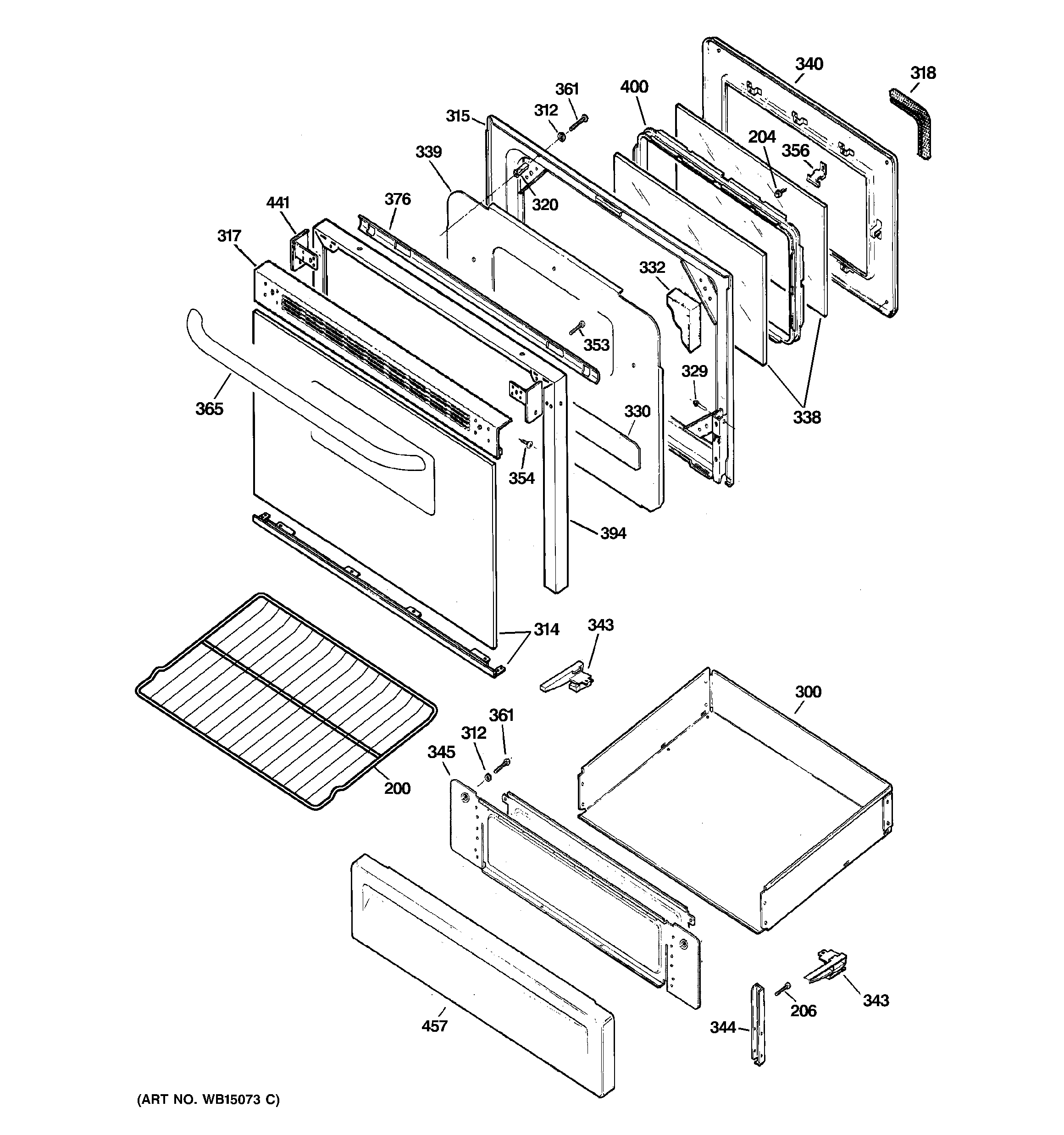

JGB250SET2SS DOOR & DRAWER PARTS

JGB250SET2SS DOOR & DRAWER PARTS

Written by

in

JGB250SET2SS DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
300GEN WB58K10011
312WB1X119D GE Oven Range Washer
314WB57K10128 GE Oven Outer Glass Panel
315GEN WB55K10042
317GEN WB07K10199
318GEN WB04K10029
320WB1K10 GE Oven Grommet Handle
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
353WB01K10047 GE Drawer Screw 10-32 HXW 9/16
353WB01K10070 GE Oven Screw
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361WB1K63 GE Oven Screw
361WB01K10074 GE Oven Screw 10-32 TT PNT
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365WB15T10163 GE Oven Stainless Steel Handle
376WB35K23 GE Heater Deflector
394GEN WB07K0265
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7181
441GEN WB07X7182
457GEN WB55K10071
