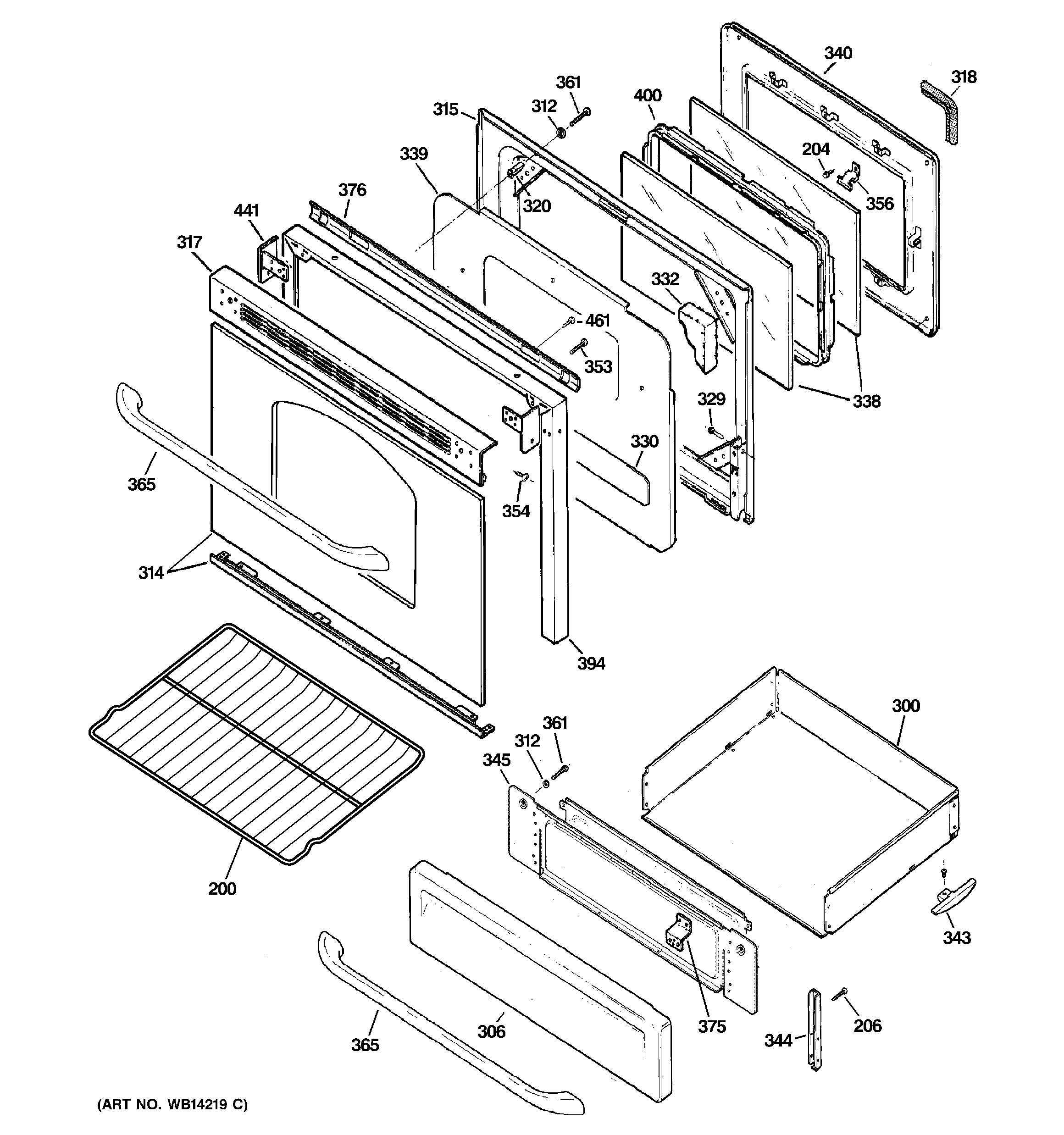

JGB280MEN4BS DOOR & DRAWER PARTS

JGB280MEN4BS DOOR & DRAWER PARTS

Written by

in

JGB280MEN4BS DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
206WB01K10091 GE Oven Screw
300GEN WB58K10004
300GEN WB58K10011
306GEN WB55K10028
312WB1X119D GE Oven Range Washer
314GEN WB57K10126
315GEN WB55K10042
317WB7K403 GE Oven Top Door Trim
317WB35K10041 GE Oven Reflector
318GEN WB04K10029
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10149 GE Oven Side Door Insulation
332WB35K10150 GE Bottom Door Oven Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10055 GE Drawer Liner
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365GEN WB15K10107
365WB15K10102 GE Oven Handle
375CLIP WINDOW
376WB35K23 GE Heater Deflector
394GEN WB07K10104
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7182
441GEN WB07X7181
461GEN WB01K10013
