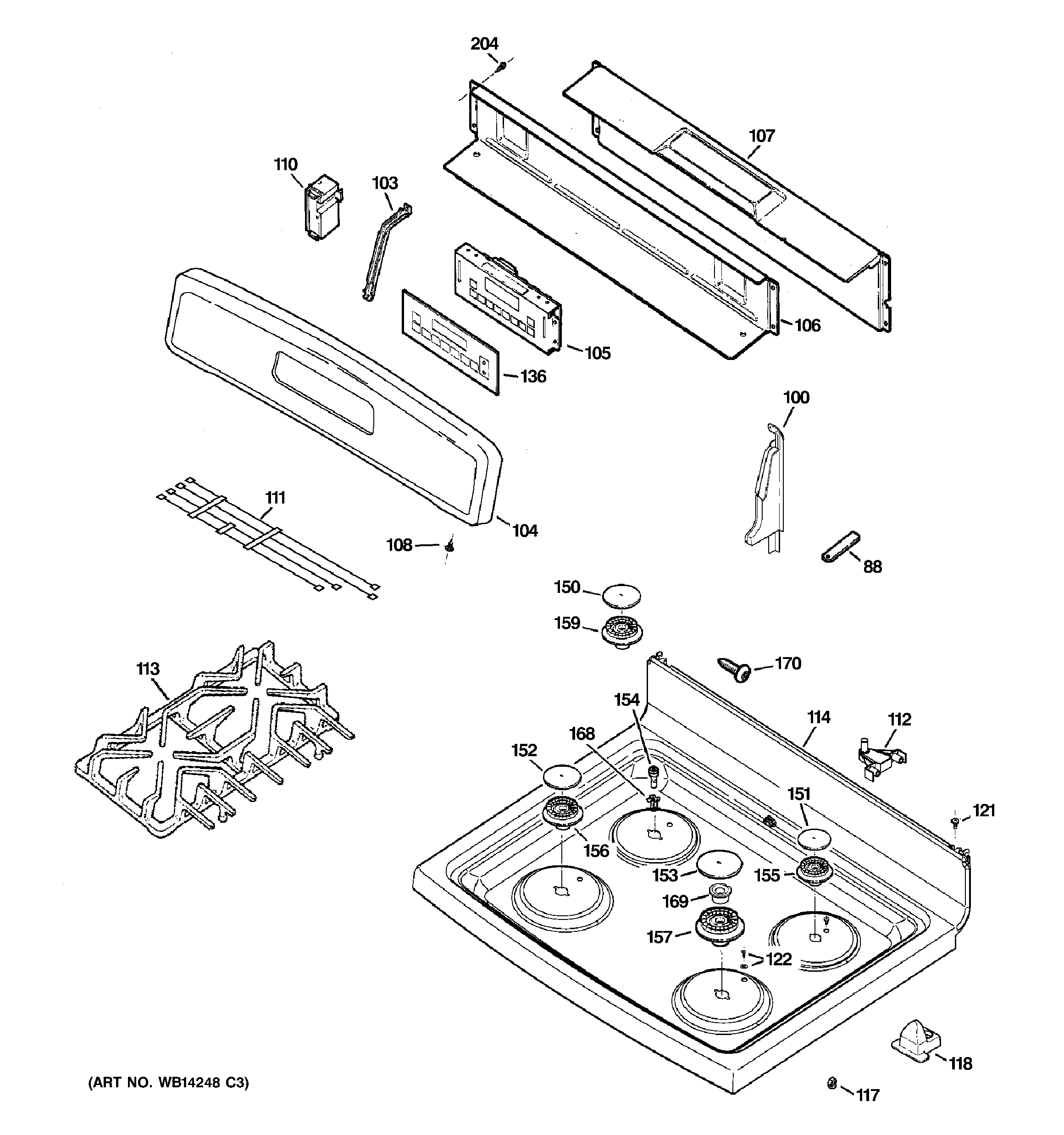

JGB281DER1CC CONTROL PANEL & COOKTOP

JGB281DER1CC CONTROL PANEL & COOKTOP

Written by

in

JGB281DER1CC CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10252
100GEN WB07K10282
100GEN WB07K10283
100GEN WB07K10247
100GEN WB07K10246
100GEN WB07K10251
103GEN WB02K10155
104GEN WB36K10651
104GEN WB36K10653
104GEN WB36K10672
105WB27K10355 GE Oven Electronic Control Board
106WB34K10123 GE Oven Back Cover Assembly
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
112WB14K10003 GE Range Top Hinge
113WB31K10243 GE Oven Cast Grate (DD) RT
113WB31K10244 GE Oven Left Front Grate
114GEN WB62K10132
114GEN WB62K10130
114GEN WB62K10131
117GEN WB02K0017
118GEN WB14K10005
118WB02K10104 GE Base Spacer
121GEN WB01K0078
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136WB27K10265 GE Overlay T09-B
136WB27K10264 GE Oven T09-B Overlay
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
154GEN WB13K10021
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5874
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
