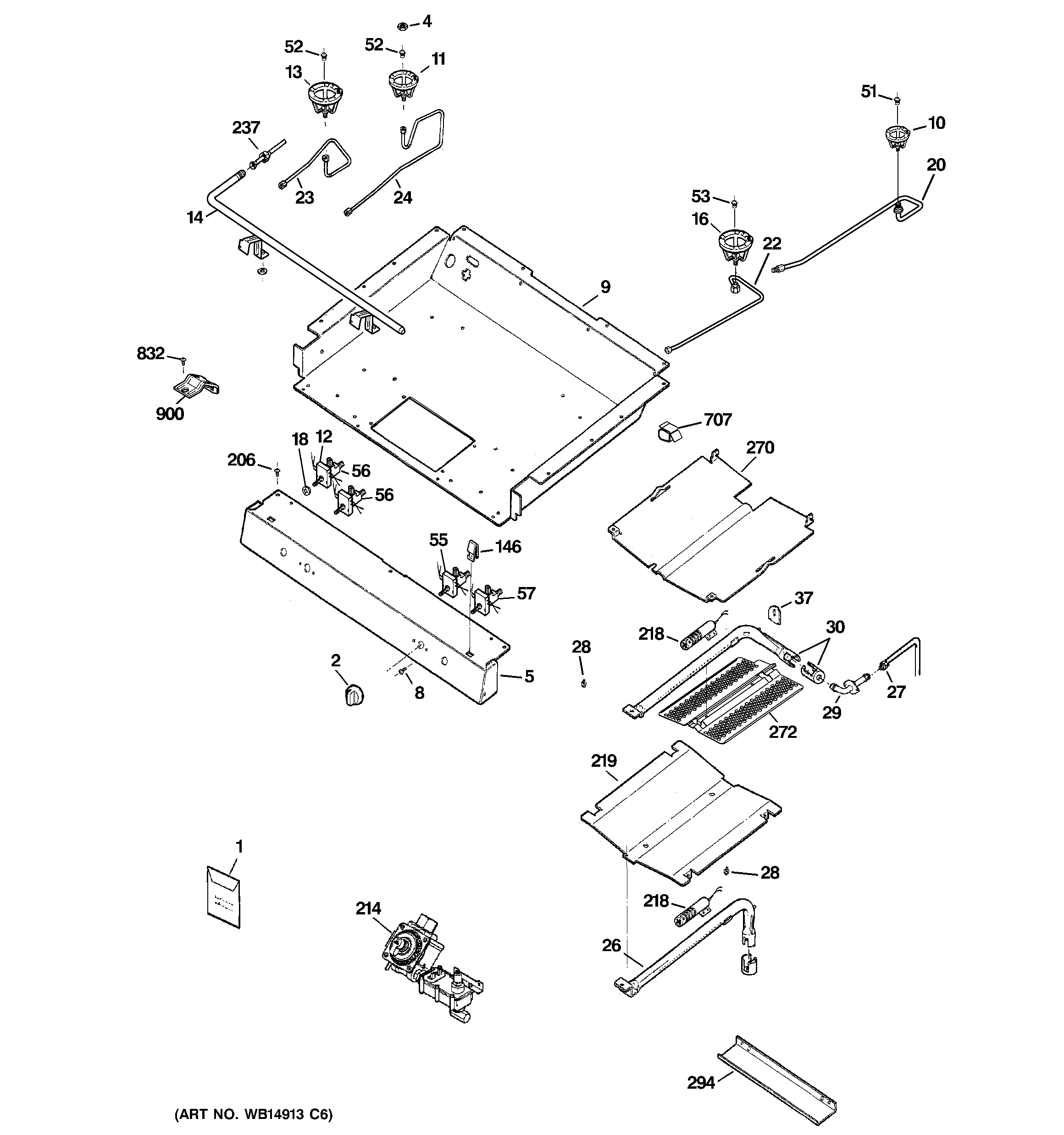

JGB281DER1CC GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21480
1GEN 31-21483
1GEN 49-85177
2WB03K10218 GE Oven Control Knob
2GEN WB03K10225
2WB03K10216 GE Oven Manifold Knob
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10892
5GEN WB36K10893
5GEN WB36K10894
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10074
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10425
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20NG ORIFICE & TUBE CNTRAL
22NG ORIFICE & TUBE RF
23GEN WB28K10627
24NG ORIFICE & TUBE LR
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10311
30GEN WB16K10067
37WB34K14 GE Igniter Cover
51GEN WB28K10443
51GEN WB28K10609
51WB28K10031 GE Oven Orifice
52LP HA ORIFICE SPUD LF
52GEN WB28K10601
52GEN WB28K10437
53GEN WB28K10628
53GEN WB28K10426
53WB28K10215 GE Oven Orifice
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10043 GE Oven Gas Valve and Regulator Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
237GEN WB28K10587
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294GEN WB63K10040
707WB02K10267 GE Wire Clip
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
