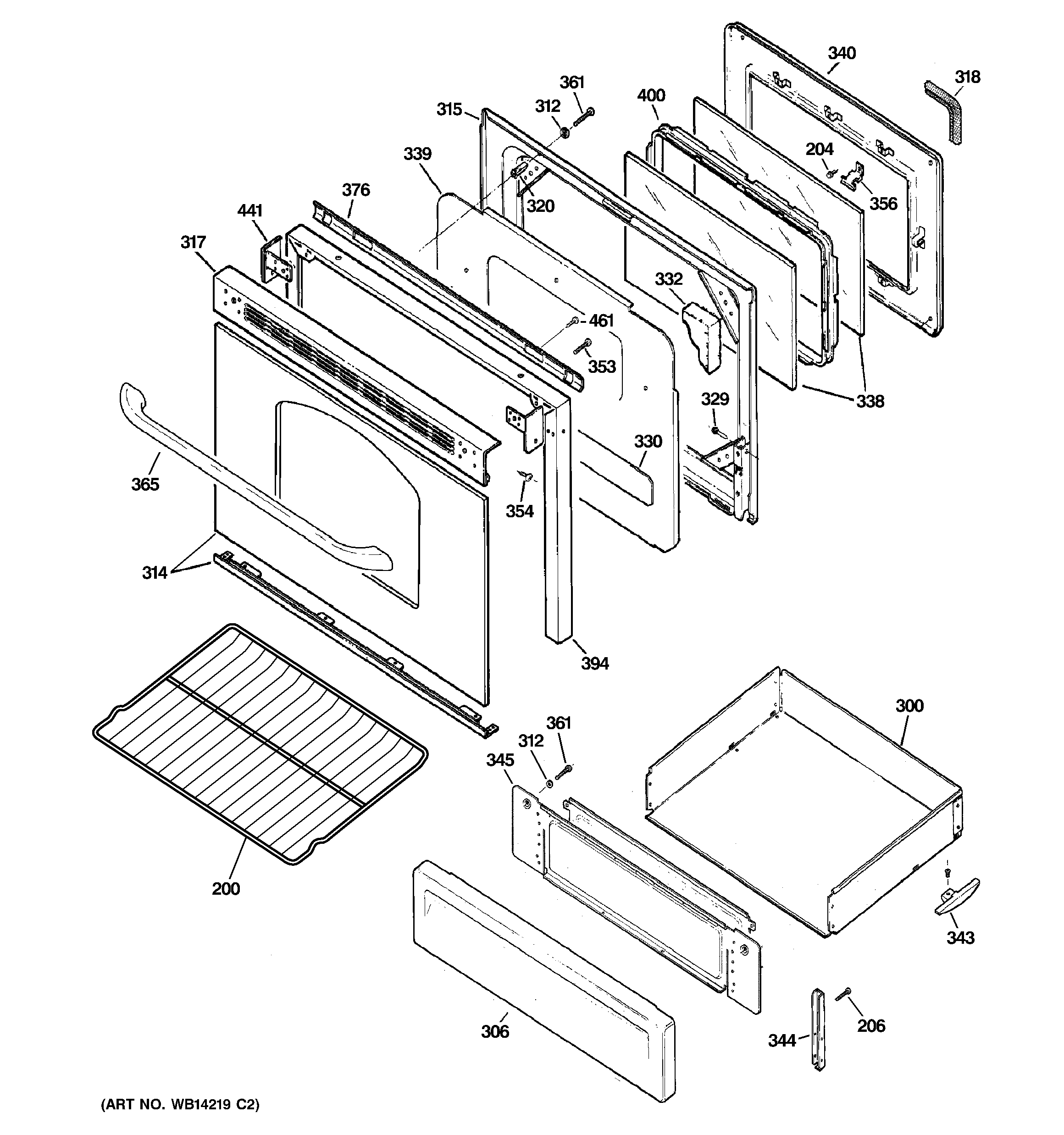

JGB281MER6BS DOOR & DRAWER PARTS

JGB281MER6BS DOOR & DRAWER PARTS

Written by

in

JGB281MER6BS DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
300WB58K10015 GE Oven Drawer Body
306GEN WB55K10071
312WB1X119D GE Oven Range Washer
314WB57K10128 GE Oven Outer Glass Panel
315GEN WB55K10042
317WB7K403 GE Oven Top Door Trim
318GEN WB04K10029
320WB1K10 GE Oven Grommet Handle
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365WB15K10102 GE Oven Handle
376WB35K23 GE Heater Deflector
394GEN WB07K10104
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7181
441GEN WB07X7182
461WB01K10047 GE Drawer Screw 10-32 HXW 9/16
