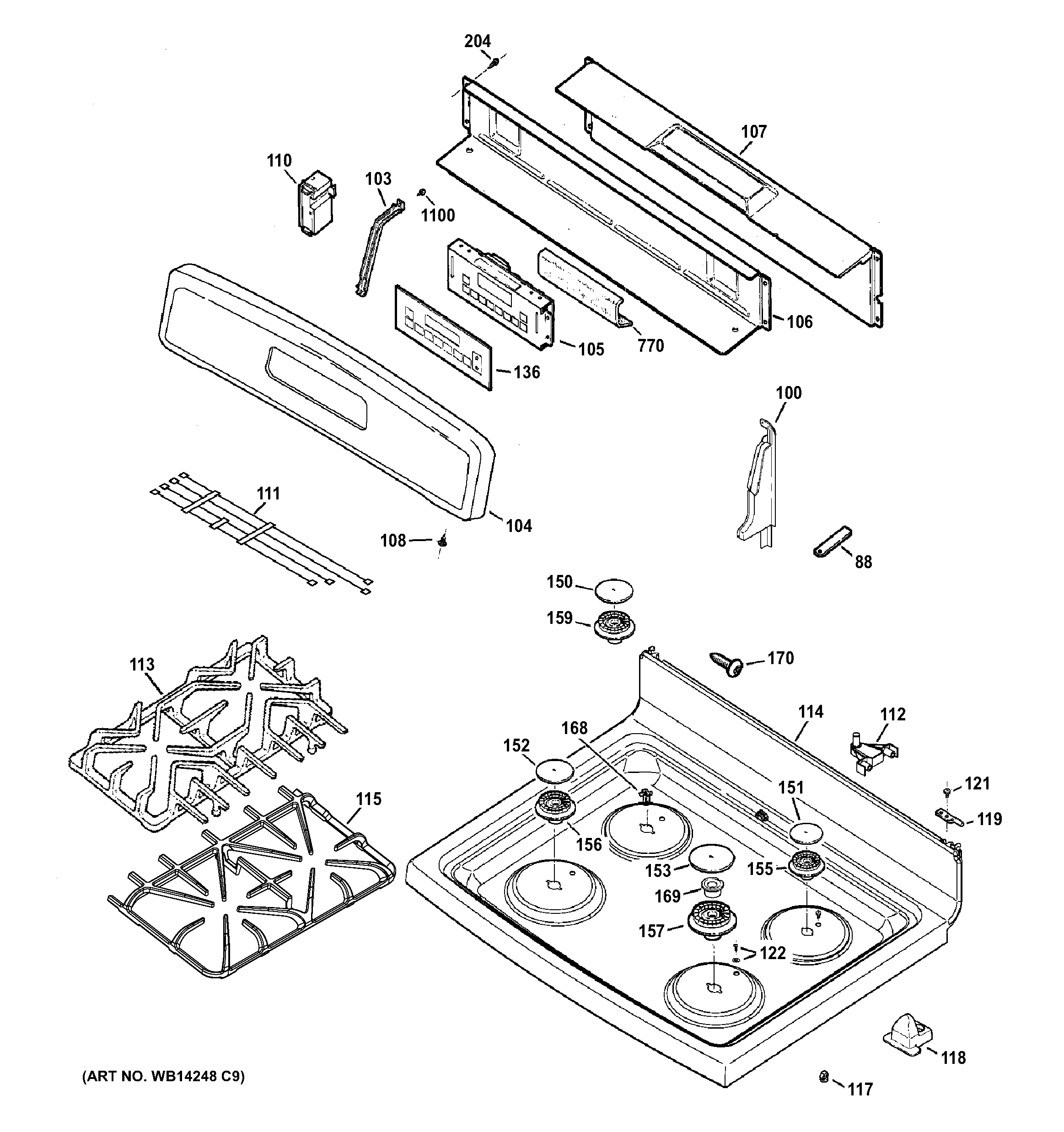

JGB281SER6SS CONTROL PANEL & COOKTOP

JGB281SER6SS CONTROL PANEL & COOKTOP

Written by

in

JGB281SER6SS CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10246
100GEN WB07K10247
103GEN WB02K10155
104GEN WB36K10897
105WB27K10355 GE Oven Electronic Control Board
106WB34K10123 GE Oven Back Cover Assembly
107WB34K10129 GE Lower Back Cover
110WB13K10054 GE Oven Spark Module Service Kit
110WB13K10029 GE Oven Spark Module
111GEN WB18K10061
111WB18K10098 GE Oven Igniter Switch and Harness Assembly
112WB14K10003 GE Range Top Hinge
113WB31K10244 GE Oven Left Front Grate
114GEN WB62K10143
115WB31K10243 GE Oven Cast Grate (DD) RT
117GEN WB02K0017
118GEN WB14K10005
121WB1K5119 GE Oven Screw
121GEN WB01K0078
122WB01K10106 GE Oven Circuit Screw
136GEN WB27K10415
136WB27K10264 GE Oven T09-B Overlay
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10062 GE Oven Surface Burner Base
157WB16K10055 GE Oven Burner Base
159BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
169VENTURI 15K LP
170GEN WB01X5716
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
