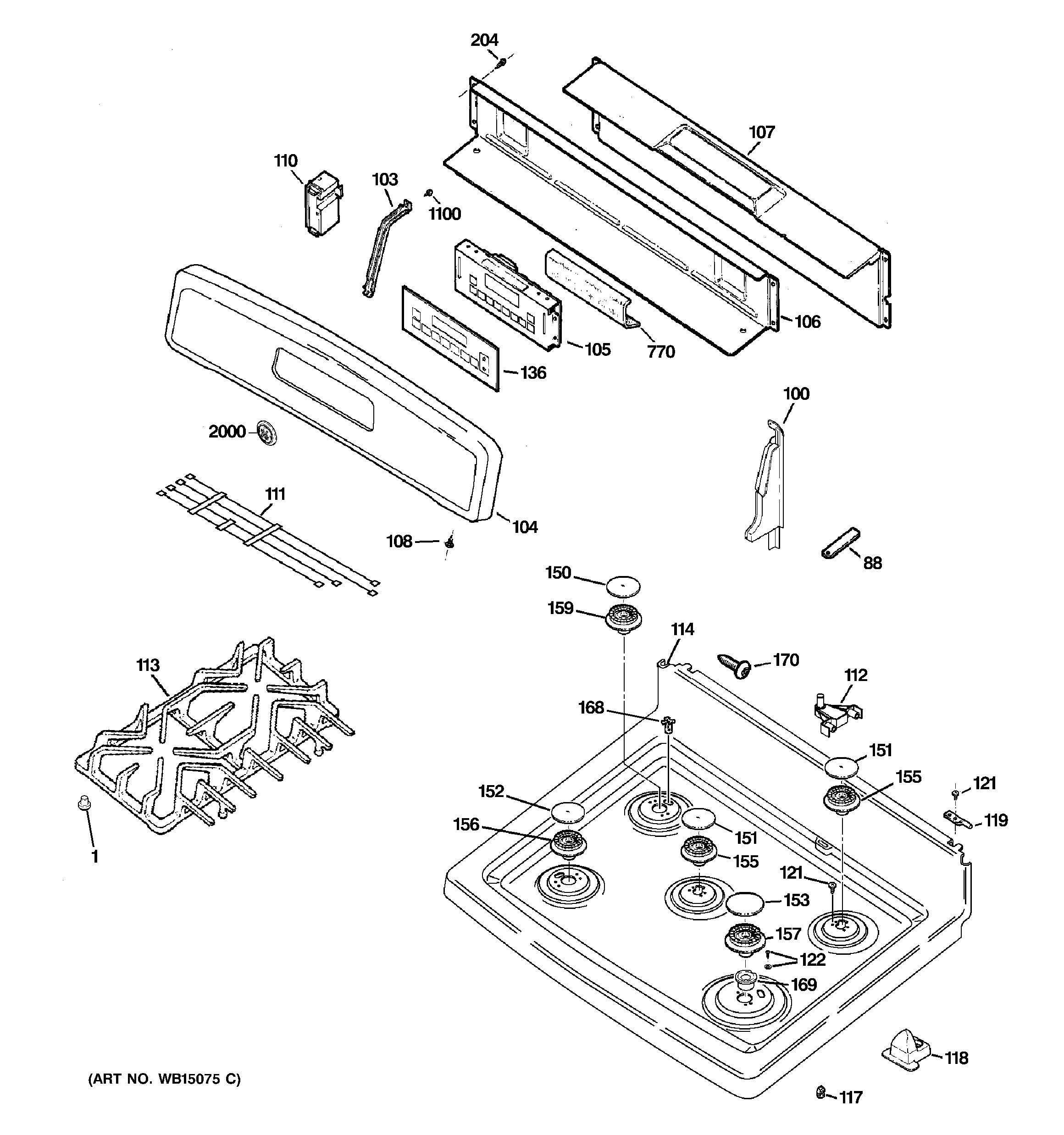

JGB282DET1WW CONTROL PANEL & COOKTOP

JGB282DET1WW CONTROL PANEL & COOKTOP

Written by

in

JGB282DET1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN 31-14989
1GEN 31-10802
1GEN WB64X10005
1GEN 49-85200
1GEN WB02K0101
1GEN WB28K10823
88GEN WB02K0062
100GEN WB07K10252
100GEN WB07K10251
100GEN WB07K10246
100GEN WB07K10247
103GEN WB02K10155
104GEN WB36K10664
104GEN WB36K10732
105WB27K10355 GE Oven Electronic Control Board
106WB34K10123 GE Oven Back Cover Assembly
107WB34K10129 GE Lower Back Cover
108WB1X5364 GE Oven Mounting Screw
110WB13X26360 GE Oven Spark Module
111IGNIT HARNESS HV
112WB14K10003 GE Range Top Hinge
113WB31K10257 GE Oven Cast Grate
113WB31K10258 GE Oven Cast Grate
114GEN WB62K10149
114GEN WB62K10148
117GEN WB02K0017
118GEN WB14K10005
118WB02K10104 GE Base Spacer
119WB14K5 GE Oven Hinge Pin
121GEN WB01K0078
122WB1K84 GE Oven Screw and
122WB01K10106 GE Oven Circuit Screw
122WB1K5119 GE Oven Screw
136GEN WB27K10415
136GEN WB27K10417
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5874
170GEN WB01X5716
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
2000WB02T10359 GE Oven Badge
