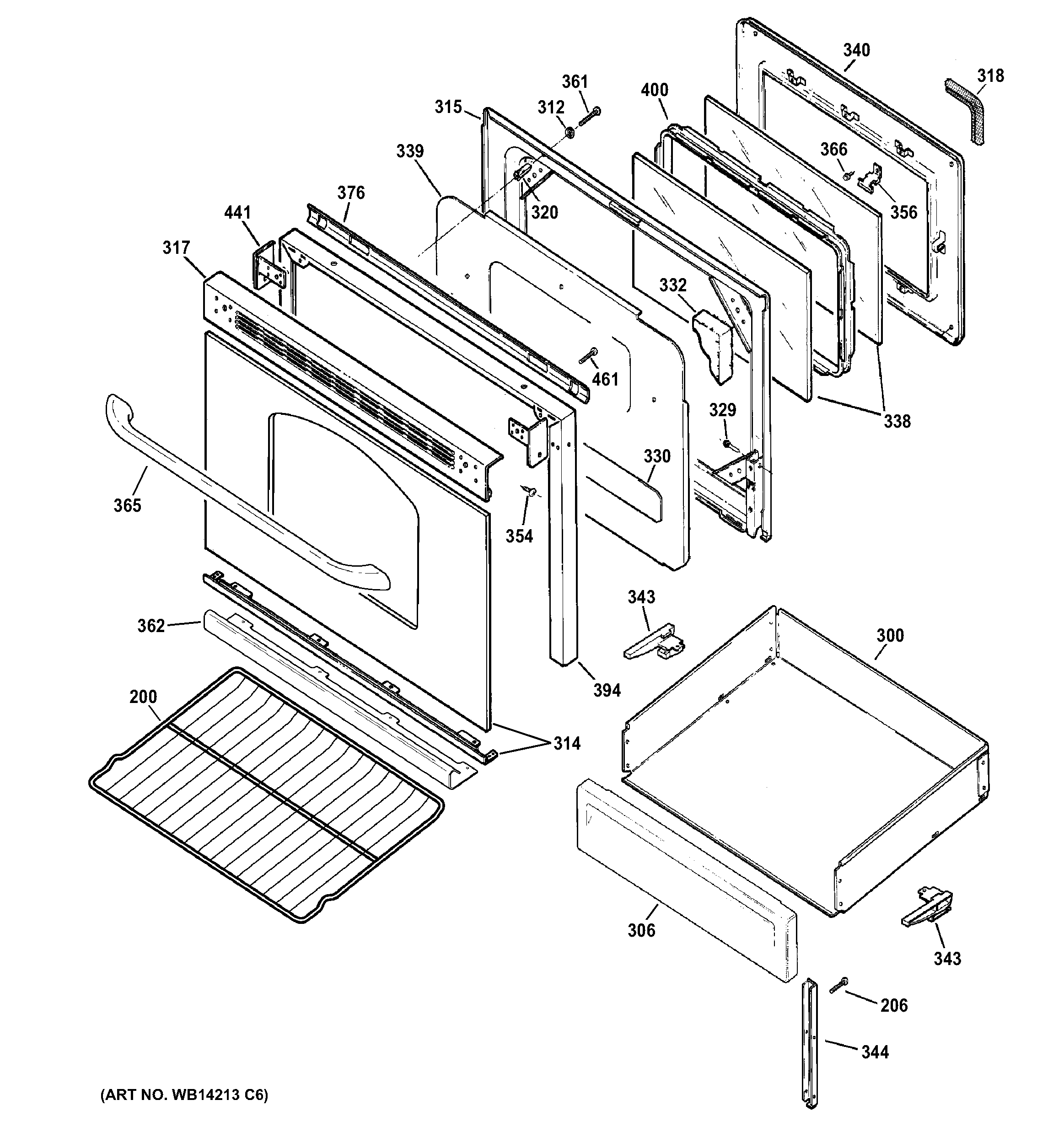

JGB282EED2ES DOOR & DRAWER PARTS

JGB282EED2ES DOOR & DRAWER PARTS

Written by

in

JGB282EED2ES DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
206WB01K10091 GE Oven Screw
300WB58K10015 GE Oven Drawer Body
306GEN WB55K10094
312WB1X119D GE Oven Range Washer
314GEN WB57K10184
315GEN WB55K10034
317GEN WB07K10465
318WB35X29668 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
320WB1K10 GE Oven Grommet Handle
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332WB35K10150 GE Bottom Door Oven Insulation
332WB35K10149 GE Oven Side Door Insulation
338CRYSTAL WINDOW
339WB56K10037 GE Door Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361WB01K10074 GE Oven Screw 10-32 TT PNT
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
362WB07X20288 GE Oven Barrier Door
365WB15T10163 GE Oven Stainless Steel Handle
366WB1X536 GE Oven Screw
376WB35K23 GE Heater Deflector
394GEN WB07K10104
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07K10463
441GEN WB07K10464
461WB01K10070 GE Oven Screw
