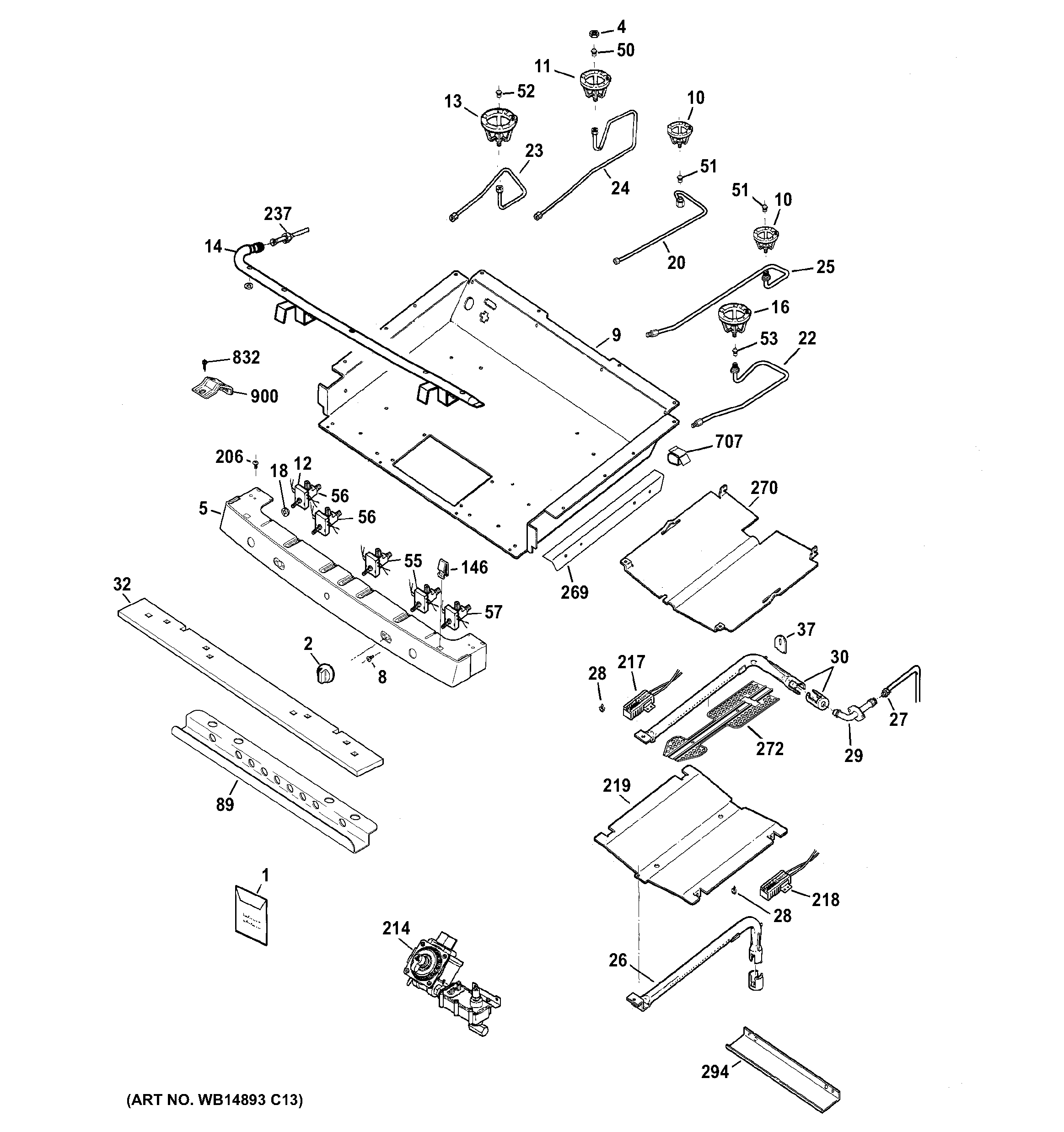

JGB285SET3SS GAS & BURNER PARTS

Products

Position	Product
1	GEN WB28K10823
1	GEN 49-85205
1	GEN 31-10802-1
1	GEN 31-14989-1
2	GEN WB03K10363
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10955
8	WB01K10002 GE Oven Screw 8-32
9	WB63K10190 GE Burner Box Assembly
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	SWITCHES & HARNESS
13	WB02K10362 GE Oven CKT Bracket MDM & L
14	GEN WB28K10805
16	WB02K10363 GE Oven Cooktop Bracket XL
18	WB2K24 GE Oven Valve Cover
20	NG ORIFICE & TUBE CNTRAL
22	NG ORIFICE & TUBE RF
23	GEN WB28K10810
24	NG ORIFICE & TUBE LR
25	GEN WB28K10811
26	WB16K10035 GE Range Oven Burner Bar with Igniter
27	WB28K10168 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	GEN WB28K10310
30	GEN WB16K10067
32	INSULATION BURNER BOX
37	WB34K14 GE Igniter Cover
50	WB28K10215 GE Oven Orifice
51	WB28K10031 GE Oven Orifice
52	WB28K10214 GE Oven Orifice
53	GEN WB28K10839
55	WB21K10113 GE Oven Burner Valve 270
56	VALVE BURNER 270
57	WB21K10117 GE Oven Burner Valve
89	GEN WB36K10952
146	GEN WB02K0052
206	WB01K10091 GE Oven Screw
214	WB19K10078 GE Oven Control Valve Assembly
217	WB13X25261 GE Oven Igniter Glowbar
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	WB28X24772 GE Oven Gas Tube Connector
269	GEN WB35K10048
270	WB49K10025 GE Range Deflector
272	GEN WB49K10046
294	GEN WB63K10040
707	WB02K10267 GE Wire Clip
832	WB01K10043 GE Oven Screw
832	WB01K10080 GE Oven Thermostat Screw
900	WB02K10297 GE Oven Valve Bracket
